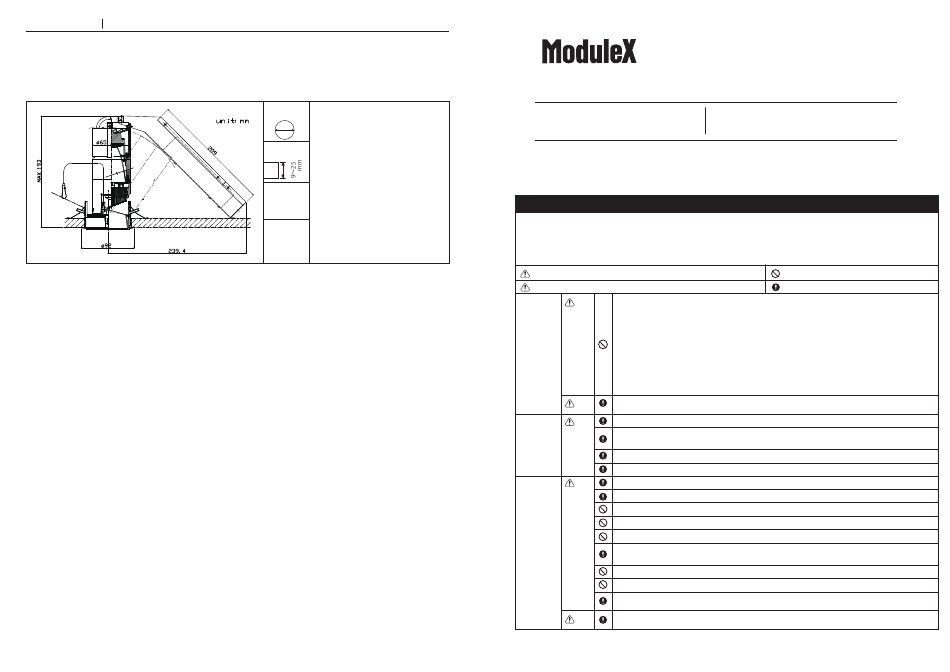

Modulex MMP-080A/10B/Z1/2 Installation Manual

Installation Guide Lighting Fixture
MUSEUM DOWNLIGHT ADJUSTABLE
MMP-080A/10B/Z1/2
Ceiling cut out
Φ3-15/64"(82mm)
Input voltage
120V / 277V
Input current 0.175A / 0.088A
Ceiling Input wattage 20.8W / 22.1W
thickness
LED DRIVER (BUILT-IN)
LP1036-48-C0500-010V
(High Perfection Technology)
Please use the dimmer
Weight
adapted to the led driver
1060g
Installation Guide
To install the fixture safely《 Read carefully and follow all the instructions in the guide 》
Read and understand these instructions before installing fixture.
This fixture is intended for installtion in accordance with the National Electrical Code and local regulations. To assure full compliance with
local codes and regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off electricity at
fuse box before proceeding.
Retain these instructions for maintainance reference.
Warning : Failure to install the fixture properly could result in personal injury.
Caution : Failure to install the fixture properly could result in property damage.
The fixture is for indoor use only in general conditions.
Before
Warning
Can not be used following conditions (Causes of falling, electrocution and fire)
installation
●Inclined, uneven surface
●High humidity
●Outside
●On the floor
●Vibrated or shocked areas
●Areas get direct sunlight
Please contact if you are not able to judge whether installation
environment is suitable to the places or not.
Please follow the fixturesʼ indication or specification for the distance of irradiated area.
Caution
(Causes of change in shape, change in color of irradiated objects)
Only qualified person may work on electric wiring and equipment. (Cause of accidents)
For electric Warning
wiring
Use alternating current. Please follow rating plate of fixtures for power supply frequency.
(Cause of electrification・fire) (50Hz ・60 Hz common use for ballasts and incandescent lamp fixtures)
Be sure power supply voltage is within ±6% mentioned in rating plate or the guide. (Causes of short life of lamps・electrification・fire)
Be sure all the wires and codes are not damaged. (Causes of falling・damage)
At lighting Warning Please follow the fixturesʼ instruction or this guide to install the fixture and lamp. (Causes of falling・electrification・fire)
fixture
Switch off the power when installing the lamp. (Causes of electrification)
installation
Do not touch the fixture when switch is on or just turn off the switch because of high temperature.
Do not put or cover the fixture by any cloths, papers, or insulators.(Causes of not lighting・fire)
Do not place any metallic or flammable objects. (Cause of electrification・fire・broken fixture)
Make sure to install all the parts of fixtures besides installation and mounting parts will not touch with any
objects both inside and outside of ceiling such as lighting track, etc. (Causes of falling・electrification・fire)
Do not dismount or remodel fixtures. (Cause of electrification・fire・falling・broken fixtures)
Do not operate with wet hands.
If you smell smoke, see smoke, or find anything unusual, please turn the switch off and ask construction
companies to repair. (Cause of electrification・fire)
Make sure the construction will not affect any fire prevention systems such as sprinkler by heat from the fixture.
Caution
(Causes for improper operation)
Lighting Fixture
: Prohibited
: Strict observance
●Ceiling which canʼt hold the fixture weight
●On the wall
●Places affected by wind or air-conditioner machine
●Near fire
●Dusty areas, corrosive gas outbreaks areas
●Ambient temperature under 0℃ and over 35℃
