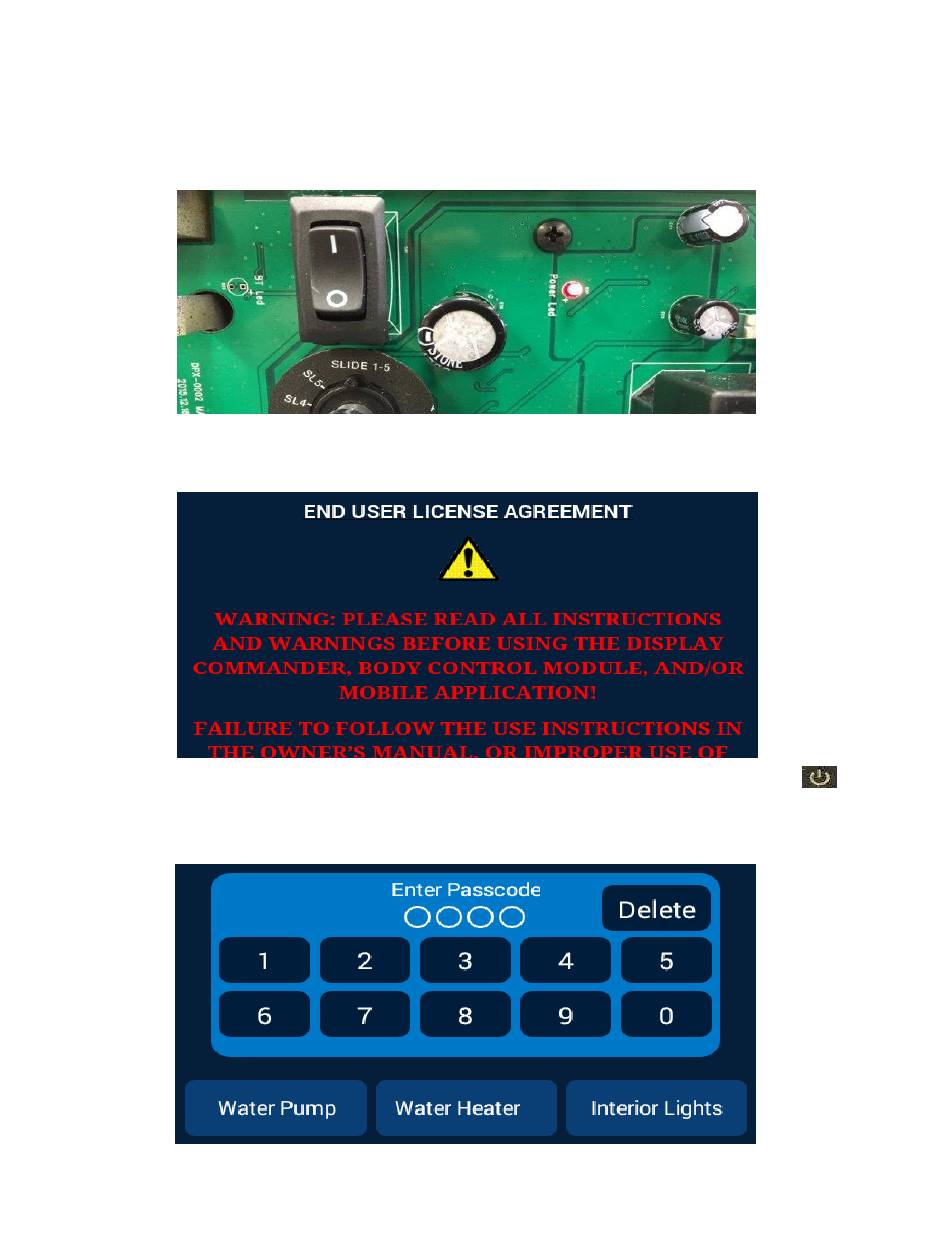

The BCM should be wired correctly, without loose connections, and +12 VDC connected at pin 35.
A RED LED will indicate that the BCM is powered and receiving 12 VDC. The DC is connected to the BCM with
4 wires in the upper right corner of the board: ground, receive, transmit, and 12 VDC power in (Gnd, RX, TX,
and +12VDC).
The toggle switch on the BCM corresponds to the dial underneath it. (In the event where communication
between the DC and BCM is lost or the DC is damaged, this switch will enable "manual" functions of the
selected devices) The switch and knob are used for Motors 1-5 (which could include slide outs, and awnings)
The DC will be mounted in a "all access" area near the entrance. On the DC, hold down the Power (
button for 5 seconds. After a moment, the Passcode Screen will appear. Enter your Passcode . If this is the
first time the DC has been powered on, an End User License Agreement (EULA)screen will appear. Upon
accepting the EULA, the Enter New Passcode screen will appear. Enter your new passcode twice.
