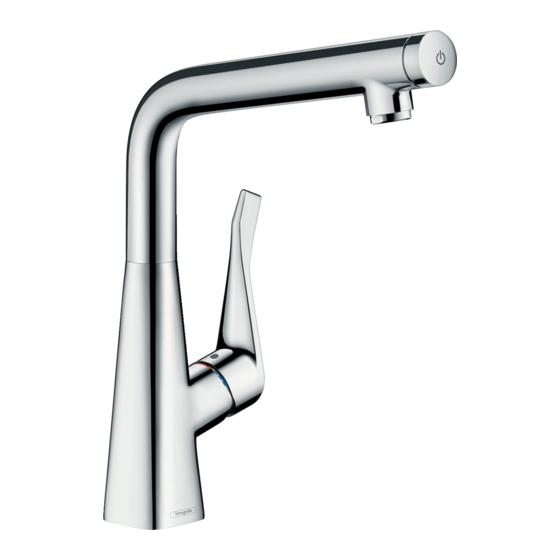

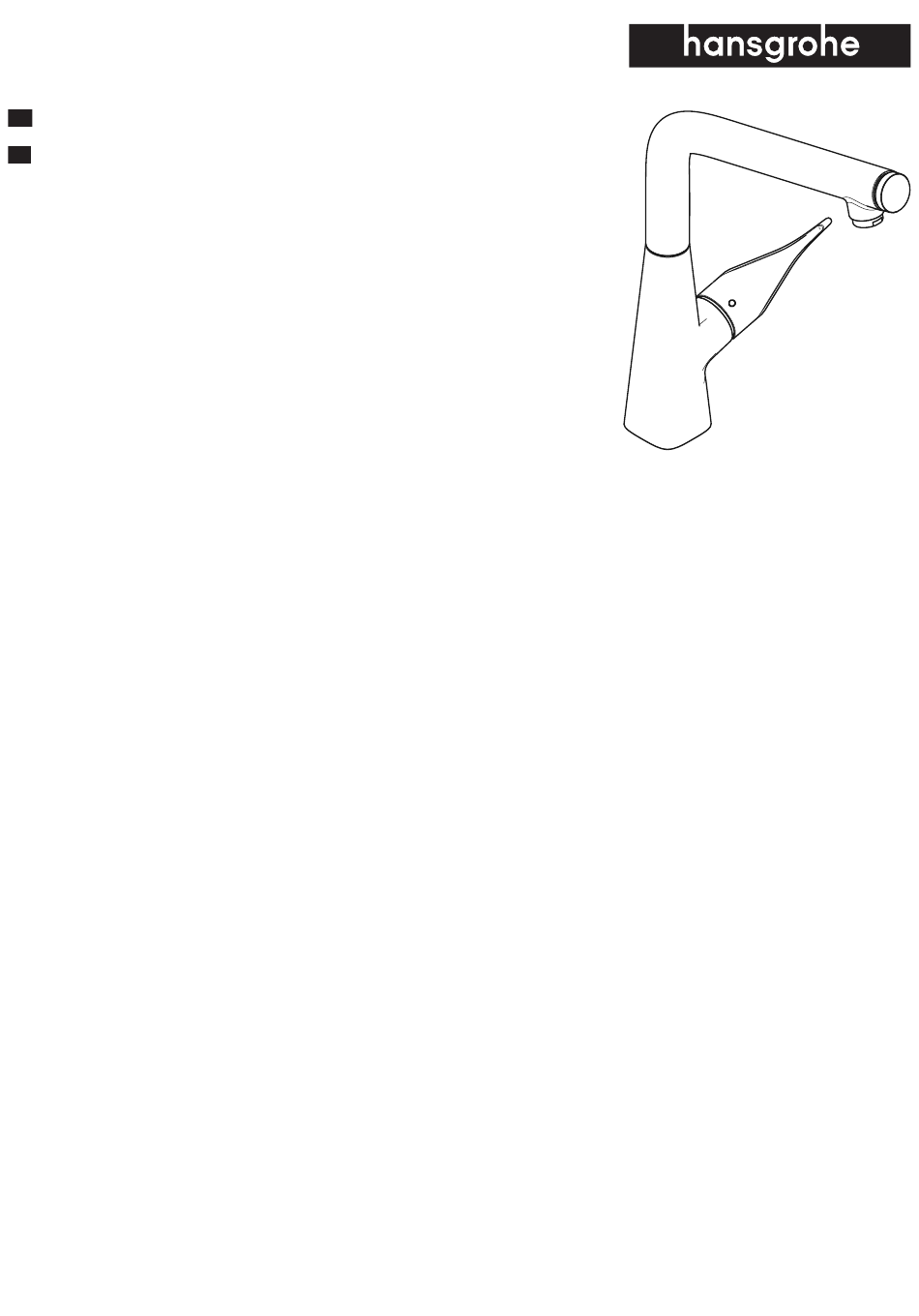

- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / Assembly instructions Metris Select 320 1jet 14883007...
- Page 2 中文 安全技巧 装配时为避免挤压和切割受伤，必须戴上手套。 冷热水管间过大的压力差必须予以平衡。 安装提示 • 安装前必须检查产品是否受到运输损害。 安装后将不认可运输损害或 表面损伤。 • 管道和阀门必须根据通用标准进行安装、冲洗和检查。 • 请遵守当地国家现行的安装规定。 • 首次调试时和维护作业之后，管接头中的空气可能产生噪音。大约使 用管接头 15 次后噪音消失。 技术参数 1 MPa 工作压强： 最大 0,1 - 0,5 MPa 推荐工作压强： 1,6 MPa 测试压强： (1 MPa = 10 bar = 147 PSI) 60°C 热水温度： 最大 70°C / 4 分钟 热力消毒: • 该产品专为饮用水设计！ • 自动防止回流 符号说明 请勿使用含有乙酸的硅胶！ 调节 (参见第页 6) 热水温度调节。如果使用即热式喷头，则不建议安装热水阀门。 保养 (参见第页 9) 单向阀必须在符合国家或当地的法律的情况下按照EN 806-5定期检查 (至 少一年一次) 。 大小 (参见第页 8) 流量示意图 (参见第页 8) 备用零件...
-
Page 3: Installation Instructions
English Safety Notes Gloves should be worn during installation to prevent crushing and cutting injuries. The hot and cold supplies must be of equal pressures. Installation Instructions • Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured. • The pipes and the fixture must be installed, flushed and tested as per the applicable standards. • The plumbing codes applicable in the respective countries must be observed. • During initial start-up and after servicing, air in the fittings can cause noise. After switching the jet on and off about 15 times, the noise will stop. Technical Data Operating pressure: max. 1 MPa Recommended operating pressure: 0,1 - 0,5 MPa Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI) Hot water temperature: max. 60°C Thermal disinfection: 70°C / 4 min • The product is exclusively designed for drinking water! • Safety against backflow Symbol description Do not use silicone containing acetic acid! Adjustment (see page 6) To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended. Maintenance (see page 9) The check valves must be checked regularly according to EN 806-5 in accord- ance with national or regional regulations (at least once a year). - Page 4 SW 24 mm (4 Nm) (3 Nm) TX20 SW 10 mm SW 19 mm (4Nm) TX20 (2 Nm)
- Page 5 TX20 (2 Nm) SW 22 mm > 2 min SW 22 mm (2 Nm)
- Page 6 60 °C 10 °C 0,3 MPa 36°C 17 x 38°C 50°C 60°C 43°C 55°C 开 / open 开 / open 热 / hot 冷 / cold 关 / close 关 / close...
-
Page 7: Warranty
English Cleaning Recommendation for Hansgrohe Products Today, modern sanitary and kitchen tapware, showers, accessories, washstands, tubs and radiators consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and reclamations, it is necessary to consider certain criteria when cleaning. - Page 8 Metris Select 320 1jet 14883007 2 5 7 2 2 3 15 7 Ø 34 G 3/8 G 3/8 G 1/2 Metris Select 320 1jet 14883007 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 9 12 15 18 21 24 27 30...
- Page 9 SW 19 mm SW 10 mm SW 10 mm SW 19 mm (4 Nm)
- Page 10 Metris Select 320 1jet 14883007 98462000 92287000 (23x1,5) 92288007 98486000 92961000 98368000 (110° / 150°) 92289000 92481000 (11x3) 98455000 98189000 97209000 (14x2,5) 92646000 92730000 97558000 96338000 95498000 98193000 (32x2) 95372000 95140000 95008000 97523000 97548000 95049000 96456000 95291000 93395000 (G⅜ / G½)
- Page 12 Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
