Asaklitt PFL-597 Instructions For Use

Bicycle Light
Art.no 18-1502 Model PFL-597
31-1874 PFL-585
Please read the entire instruction manual before using
the product and then save it for future reference. We reserve
the right for any errors in text or images and any necessary
changes made to technical data. In the event of technical
problems or other queries, please contact our Customer
Services.

Safety

Warning:
• Do not point the light beam into anyone's eyes.
• Do not let children play with the product.
• Never expose the batteries to fire or high temperatures.
• Avoid contact with leaking batteries.

Fitting and replacing the battery

1. Slide the upper part of the light backwards to remove it.
2. Insert 3 × AAA/LR03 1.5 V batteries (sold separately).
Refer to the markings in the battery compartment to
ensure correct polarity. Never mix old and new batteries.
Never mix rechargeable and non-rechargeable batteries.
3. Replace the battery cover by sliding it back until it clicks
into place.
UNITED KINGDOM • CUSTOMER SERVICE tel: 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk postal: 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
ENGLISH
Instructions for use
1 2
1. Battery status indicator. A red light shines when
the battery capacity is below 40 %.
2. Press [ ] repeatedly to turn on, to start the flash function
and to turn off the light. Hold the button for about 2 sec
to turn off.

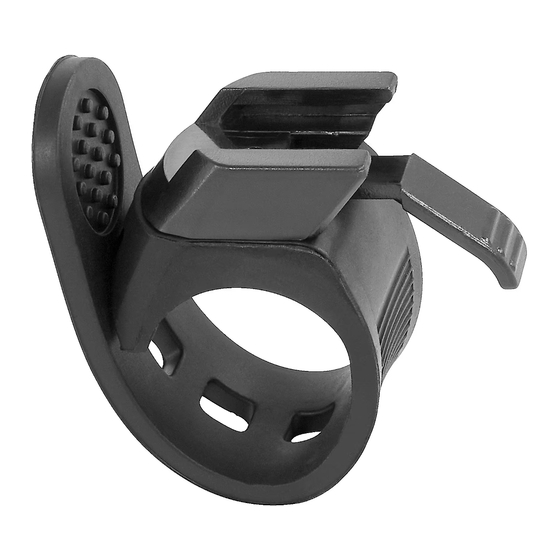

Installation

1. Wrap the strap around the handlebars and fasten it on
the hook.
2. Slide the light into the bracket.
Care and maintenance
• Clean the product using a damp cloth. Use only mild
cleaning agents, never solvents or corrosive chemicals.
• Remove the battery and store the light in a dry, dust-free
environment, out children's reach whenever it is not to be
used for an extended period.

Responsible disposal

This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any harm to
the environment or health hazards caused by
incorrect waste disposal, the product must
be handed in for recycling so that the material
can be disposed of in a responsible manner.
When recycling your product, take it to your
local collection facility or contact the place of
purchase. They will ensure that the product
is disposed of in an environmentally sound
manner.

Specifications

Batteries 3 × AAA/LR03, 1.5 V (sold separately)
Size 97 × 36 × 36 mm
Weight 57 g (without batteries)
Light source
18-1502:
Mode Function Brightness Operating time
1 Fixed light 50 lm Approx. 9 hours
2 Flashing light Approx. 35 hours
31-1874:
Mode Function Brightness Operating time
1 Fixed light 80 lm Approx. 5 hours
2 Flashing light Approx. 35 hours
