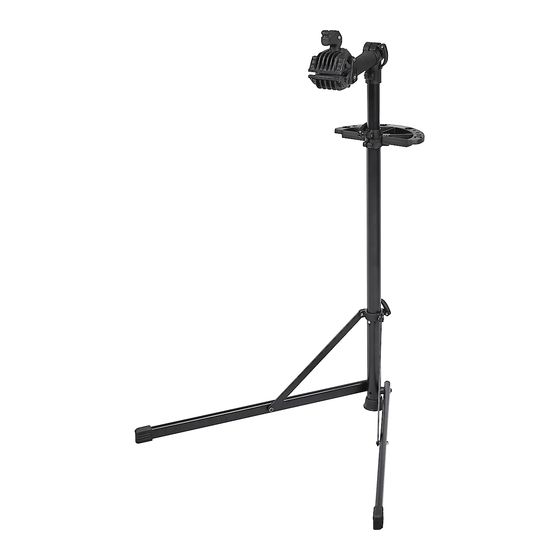

Bicycle repair stand
Hide thumbs
1
2
3
4
5

Advertisement

Available languages
  • EN

Available languages

Table of Contents

Bicycle Repair Stand
Art.no 31-9425
Model 1998
Please read the entire instruction manual before using
the product and then save it for future reference.
We reserve the right for any errors in text or images
and any necessary changes made to technical data.
In the event of technical problems or other queries,
please contact our Customer Services.

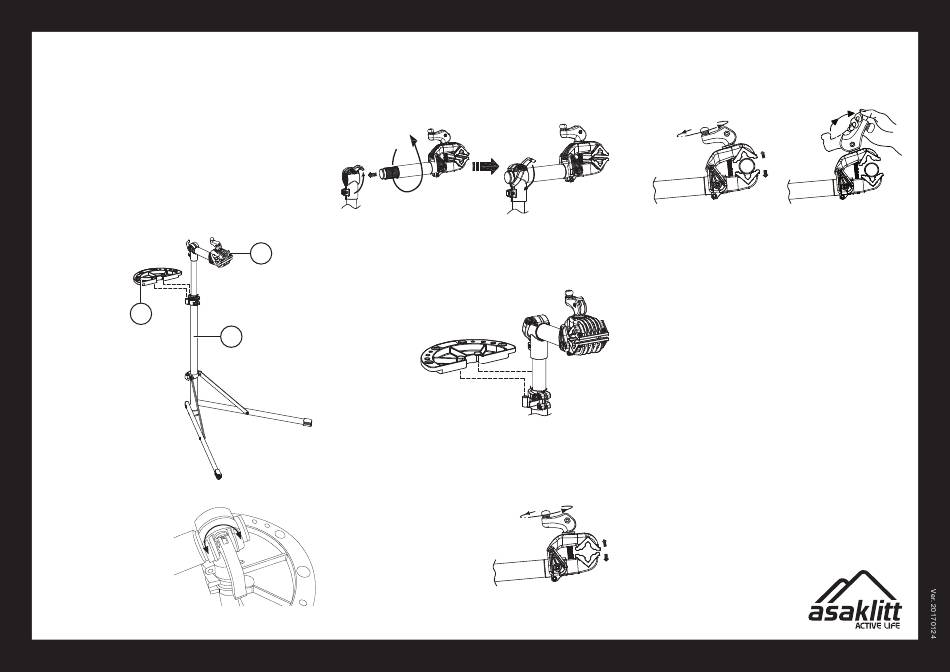

Product description

2
3
1. Clamp
2. Tool tray
3. Stand

Assembly

Note: The cam lever
might need to be
screwed in or out to
adjust the tightness of
the clamp. Experiment
until you find the best
setting.
GREAT BRITAIN • CUSTOMER SERVICE tel: 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk postal: 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
Legs
Undo the cam lever, fold out the legs, tighten the cam lever.
Clamp
360°
Undo the cam lever and fit the clamp onto the stand.
Lock the cam lever to secure the clamp in place.
The clamp can be attached at any angle you like.
1
Tool tray height adjustment
1. Slot the tool tray onto
the two pins.
2. Adjust the height of the tray by undoing the cam
lever and adjusting the length of the post.
3. Lock the post at the desired height setting by
tightening the cam lever.

Mounting a bike on the stand

1. Open the clamp by
turning the cam lever
anticlockwise.
2. Insert the frame (or other
attachment point) of
the bike into the clamp and
lock the clamp by turning
the cam lever clockwise.
ENGLISH
Note: Bear in mind the material of the component held
in the clamp so as not to overtighten and damage it.
Clean the frame and jaws of the clamp before clamping
the bike in the stand.
3. Lift the cam lever to undo the clamp quickly and
release the bike.

Care and maintenance

Clean the stand using a lightly moistened cloth.
Use only mild cleaning agents, never solvents or
corrosive chemicals.

Responsible disposal

The product should be disposed of in accordance with
local regulations. If you are unsure how to proceed,
contact your local council.

Specifications

Max load
35 kg
Height
Extended 140 cm,
Retracted 107 cm
Weight
5.1 kg
