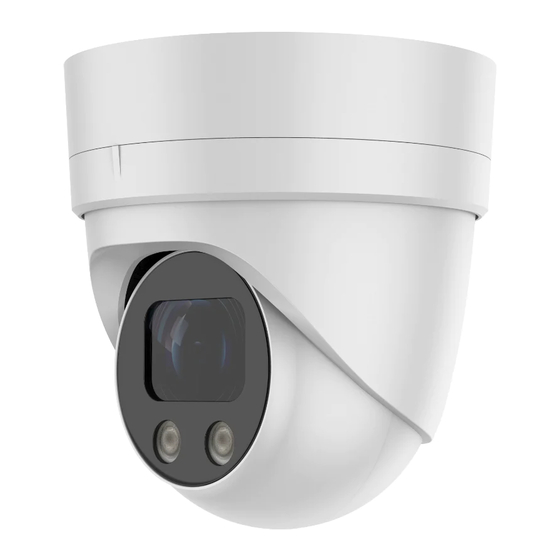

Varifocal series turret camera
Hide thumbs Also See for ClareVision CLR-V200-4TVFW:

Advertisement

ClareVision Video
Surveillance
Varifocal Series Turret Camera
Installation Guide
1 | ClareVision Varifocal Series Turret Cameras

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClareVision CLR-V200-4TVFW and is the answer not in the manual?

Questions and answers

Summary of Contents for clare ClareVision CLR-V200-4TVFW

  • Page 1 ClareVision Video Surveillance Varifocal Series Turret Camera Installation Guide 1 | ClareVision Varifocal Series Turret Cameras...
  • Page 2: Required Equipment

    For Setting up cameras and complete user manuals, please scan these QR codes: Quick Start Guide User Manual https://bit.ly/34bIlND https://bit.ly/34eKmsq Box Contents • Camera • Mounting template • Mounting kit • Accessory kit Required Equipment • Phillips head screwdriver • Power source: Ethernet cable •...
  • Page 3 Inspection Ensure that the device is in good condition and all the assembly parts are included. • Make sure that all equipment is powered o during installation. • Ensure the mounting surface is strong enough to withstand three times the weight of the camera and the mount.
  • Page 4 Overview Before installing, familiarize yourself with the diffferent parts of the camera. 4 | ClareVision Varifocal Series Turret Cameras...
  • Page 5: Installation

    Installation 1. Drill a cable hole and ¼” pilot holes, using the supplied template. 2. Using the provided hex-key, loosen the machine screw on the side. and remove the base. 3. Rotate the mounting bracket base, aligning the screws with the exit holes and remove the base.
  • Page 6 Installation 4. Insert the drywall anchors. Secure the base to the mounting surface using provided screws. 5. Connect an ethernet cable that is connect- ed to the desired POE enabled network into the camera’s ethernet adapter. 6 | ClareVision Series Varifocal Turret Cameras...
  • Page 7 Installation 6. Rotate the camera body to the desired viewing angle. 7. Snap the camera body into the base and rotate the screws into their slots until secure. 8. Using the provided hex-key, tighten the machine screw on the side until the camera body is secured firmly to the base.
  • Page 8 Support Need help? Contact Tech Support! If you need further clarification, please contact our support staff. Integrator/Dealer Support: Phone: 941.404.1072 Email: claresupport@clarecontrols.com For more information, instructional videos, or support documentation, visit our Help Center and view your item’s product page: https://www.clarecontrols.com/helpcenter 8 | ClareVision Varifocal Series Turret Cameras...
  • Page 9: Contact Information

    Sarasota, FL 34243 General: 941.328.3991 Fax: 941.870.9646 www.clarecontrols.com Warranty Information Clare Controls offers a two (2) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, please visit: www.clarecontrols.com/warranty...
  • Page 10: Camera Information

    Camera Information Please provide this guide to the customer and notate the camera installation location. This guide includes important camera details. Installattion Location: __________________ Camera Details: Product Label Doc ID: 2021-01-2080-03 10 | ClareVision Varifocal Series Turret Cameras...
