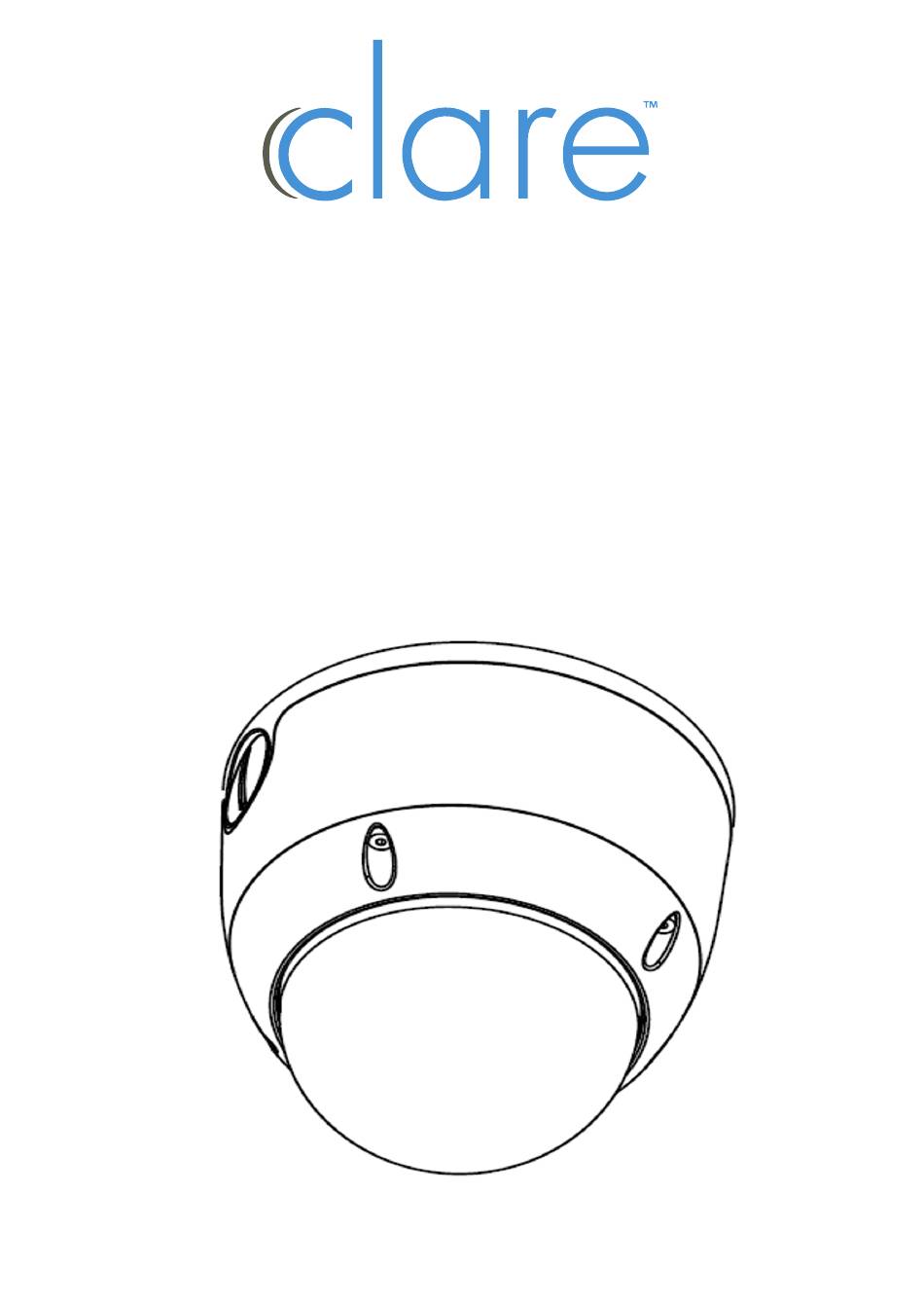

- Page 1 ClareVision Video Surveillance Varifocal Series Dome Camera Installation Guide 1 | ClareVision Varifocal Series Dome Cameras...
-
Page 2: Box Contents
User Manual https://bit.ly/34bIlND https://bit.ly/34eKmsq Box Contents • Camera • Mounting template • Mounting kit • Accessory kit Required Equipment • Phillips head screwdriver • Power source: Ethernet cable • Drill with ¼” drill bit 2 | ClareVision Varifocal Series Dome Cameras... - Page 3 WARNING: This product can expose you to chemicals including cadmium, which which is known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov. 3 | ClareVision Varifocal Series Dome Cameras...
-
Page 4: Camera Installation
1. Drill a cable hole and ¼” pilot holes using the supplied template. 2. Using the provided hex-key, loosen the cover screws on the outer cover assembly. Remove the outer cover assembly. 4 | ClareVision Varifocal Series Dome Cameras... - Page 5 Wall Mount Accessory Installation and continue from step 4. If not installing the wall mount accessory, please continue with the next steps to complete camera installation. 4. Remove rubber plug. 5. Insert the drywall anchors. 5 | ClareVision Varifocal Series Dome Cameras...
- Page 6 Camera Installation 6. Secure the chassis assembly to the mounting surface using provided screws, then slide the main body into the notch on the base. 7. Secure the screws, lock the sphere section, and complete the installation. 6 | ClareVision Series Varifocal Dome Cameras...
- Page 7 Wall Mount Accessory Installation Note: If using the wall mount accessory, follow the first three steps of this guide before continuing with attaching the wall mount. 4. Attach the base to mounting bracket body with screws. 7 | ClareVision Varifocal Series Dome Cameras...
- Page 8 2. Using the provided hex-key, loosen the cover screws on the outer cover assembly. 7. Secure the main body Remove the outer cover assembly. of the camera to the mounting bracket using the 4 provided screws. 8 | ClareVision Varifocal Series Dome Cameras...
- Page 9 Wall Mount Accessory Installation 8. Using the provided hex-key, tighten the screw on the side securing the camera body to the base. 9 | ClareVision Varifocal Series Dome Cameras...
- Page 10 Support For additional help: Integrator/Dealer Support: Phone: 941.404.1072 Email: claresupport@clarecontrols.com For more information, instructional videos, or support documentation, visit our Help Center and view your item’s product page: https://www.clarecontrols.com/helpcenter 10 | ClareVision Varifocal Series Dome Cameras...
-
Page 11: Contact Information
Sarasota, FL 34243 General: 941.328.3991 Fax: 941.870.9646 www.clarecontrols.com Warranty Information Clare Controls offers a two (2) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, please visit: www.clarecontrols.com/warranty... -
Page 12: Camera Information
Please provide this guide to the customer and notate the camera installation location and new camera password. This guide includes important camera details. Camera Password:_____________________ Installattion Location:___________________ Camera Details: Product Label Doc ID: 2021-03-2081-06 12 | ClareVision Varifocal Series Dome Cameras...
