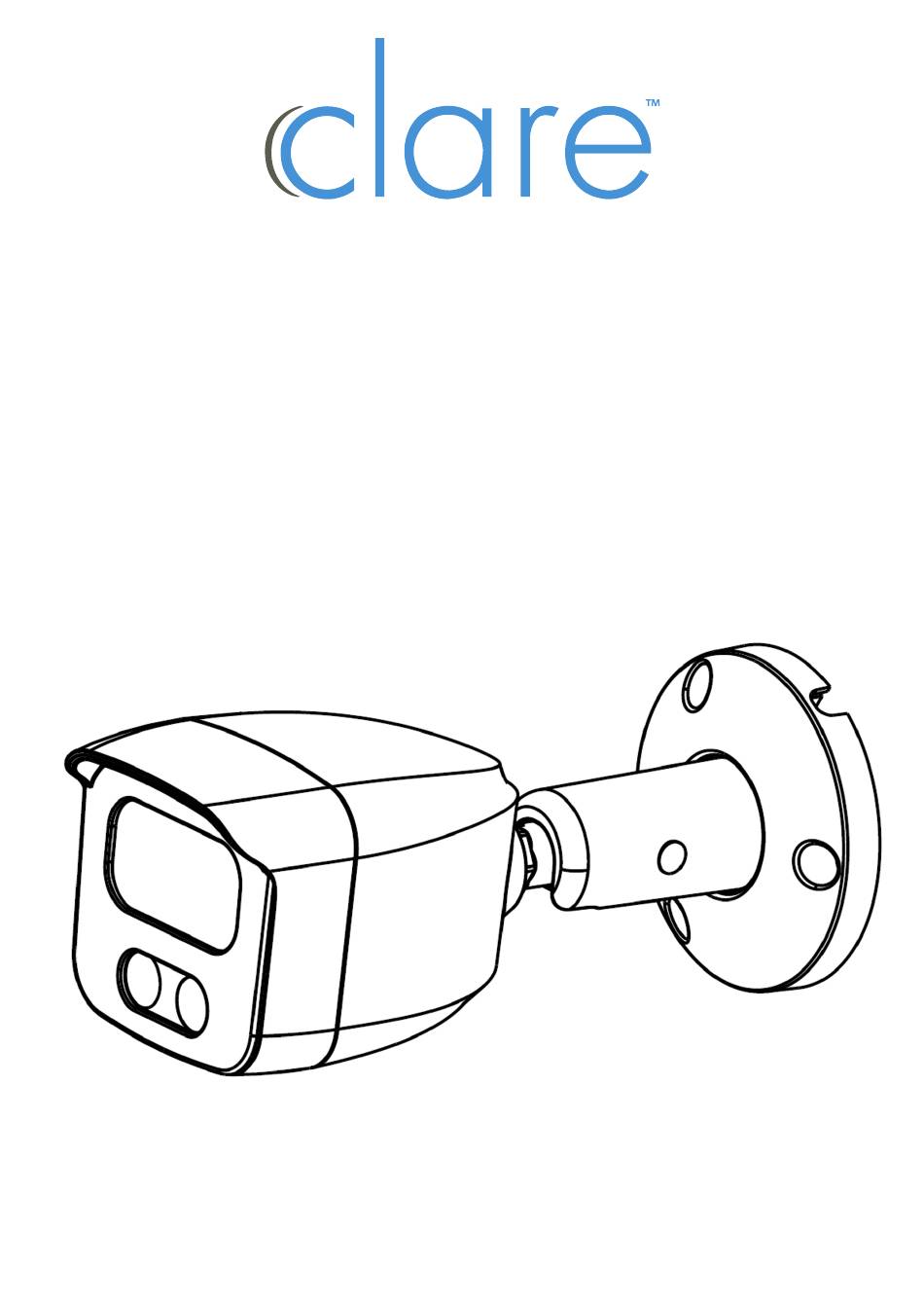

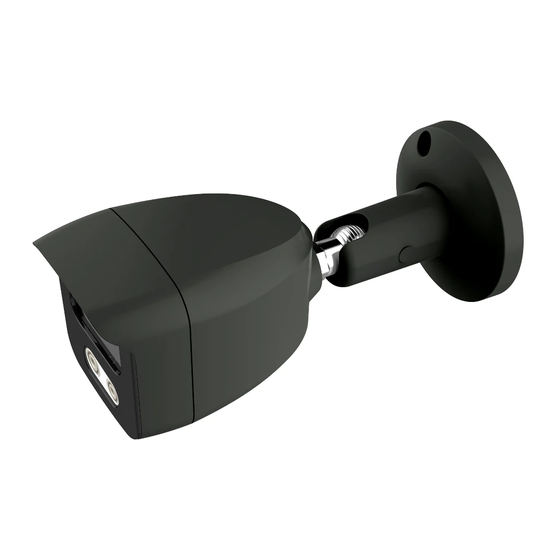

- Page 1 ClareVision Video Surveillance Value and Performance Series Fixed Lens Bullet Camera Installation Guide 1 | ClareVision Value and Performance Bullet Cameras...
-
Page 2: Required Equipment
For Setting up cameras and complete user manuals, please scan these QR codes: Quick Start Guide User Manual https://bit.ly/34bIlND https://bit.ly/34eKmsq Box Contents • Camera • Mounting template • Mounting kit • Accessory kit Required Equipment • Phillips head screwdriver • Power source: Ethernet cable •... - Page 3 Inspection Ensure that the device is in good condition and all the assembly parts are included. • Make sure that all equipment is powered o during installation. • Ensure the mounting surface is strong enough to withstand three times the weight of the camera and the mount.
- Page 4 Overview Before installing, familiarize yourself with the parts of the camera. Performance Value Series Cables Series Cables 4 | ClareVision Value and Performance Bullet Cameras...
-
Page 5: Installation
Installation 1. Drill a cable hole and ¼” pilot holes, using the supplied template. 2. Connect an ethernet cable that is connected to the desired POE enabled network into the camera’s ethernet adapter. 5 | ClareVision Value and Performance Bullet Cameras... - Page 6 Installation 3. Insert the drywall anchors. Secure the base to the mounting surface using provided screws. 6 | ClareVision Value and Performance Bullet Cameras...
- Page 7 Installation 4. Using the provided hex-key, loosen the machine screws and adjust the viewing angle. 5. Using the provided hex-key, tighten the machine screw on the side until the camera body is secured firmly to the base. 7 | ClareVision Value and Performance Bullet Cameras...
- Page 8 Support Need help? Contact Tech Support! If you need further clarification, please contact our support staff. Integrator/Dealer Support: Phone: 941.404.1072 Email: claresupport@clarecontrols.com For more information, instructional videos, or support documentation, visit our Help Center and view your item’s product page: https://www.clarecontrols.com/helpcenter 8 | ClareVision Value and Performance Bullet Cameras...
-
Page 9: Contact Information
Sarasota, FL 34243 General: 941.328.3991 Fax: 941.870.9646 www.clarecontrols.com Warranty Information Clare Controls offers a two (2) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, please visit: www.clarecontrols.com/warranty... -
Page 10: Camera Information
Camera Information Please provide this guide to the customer and notate the camera installation location. This guide includes important camera details. Installattion Location: __________________ Camera Details: Product Label Doc ID: 2021-01-2056-06 10 | ClareVision Value and Performance Bullet Cameras...
