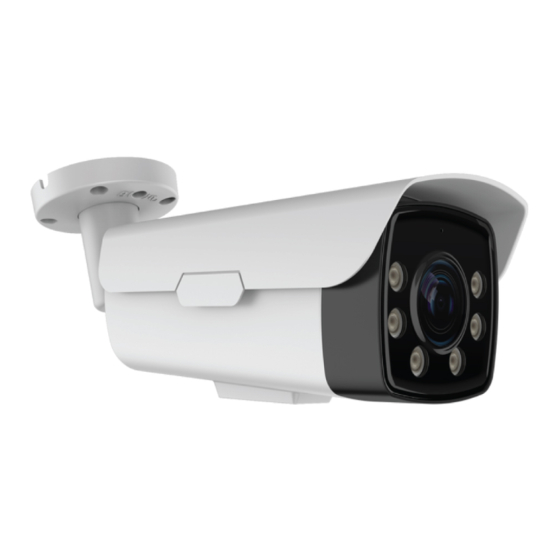

- Page 1 ClareVision Video Surveillance Varifocal Series Bullet Camera Installation Guide 1 | ClareVision Varifocal Series Bullet Cameras...
-
Page 2: Required Equipment
User Manual https://bit.ly/34bIlND https://bit.ly/34eKmsq Box Contents • Camera • Mounting template • Mounting kit • Accessory kit Required Equipment • Phillips head screwdriver • Power source: Ethernet cable • Drill with ¼” drill bit 2 | ClareVision Varifocal Series Bullet Cameras... - Page 3 WARNING: This product can expose you to chemicals including cadmium, which which is known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov. 3 | ClareVision Varifocal Series Bullet Cameras...
- Page 4 Overview Before installing, familiarize yourself with the diffferent parts of the camera. 4 | ClareVision Varifocal Series Bullet Cameras...
-
Page 5: Installation
1. Drill a cable hole and ¼” pilot holes using the supplied template. 2. Connect an ethernet cable that is connect- ed to the desired POE enabled network into the camera’s ethernet adapter. 5 | ClareVision Varifocal Series Bullet Cameras... - Page 6 Installation 3. Insert the drywall anchors. Secure the base to the mounting surface using provided screws. 6 | ClareVision Series Varifocal Bullet Cameras...
- Page 7 4. Using the provided hex-key, loosen the machine screws and adjust the viewing angle. 5. Using the provided hex-key, tighten the machine screw on the side until the camera body is secured firmly to the base. 7 | ClareVision Varifocal Series Bullet Cameras...
- Page 8 Support For additional help: Integrator/Dealer Support: Phone: 941.404.1072 Email: claresupport@clarecontrols.com For more information, instructional videos, or support documentation, visit our Help Center and view your item’s product page: https://www.clarecontrols.com/helpcenter 8 | ClareVision Varifocal Series Bullet Cameras...
-
Page 9: Contact Information
Sarasota, FL 34243 General: 941.328.3991 Fax: 941.870.9646 www.clarecontrols.com Warranty Information Clare Controls offers a two (2) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, please visit: www.clarecontrols.com/warranty... -
Page 10: Camera Information
Please provide this guide to the customer and notate the camera installation location and new camera password. This guide includes important camera details. Camera Password:_____________________ Installattion Location:___________________ Camera Details: Product Label Doc ID: 2021-03-2082-04 10 | ClareVision Varifocal Series Bullet Cameras...
