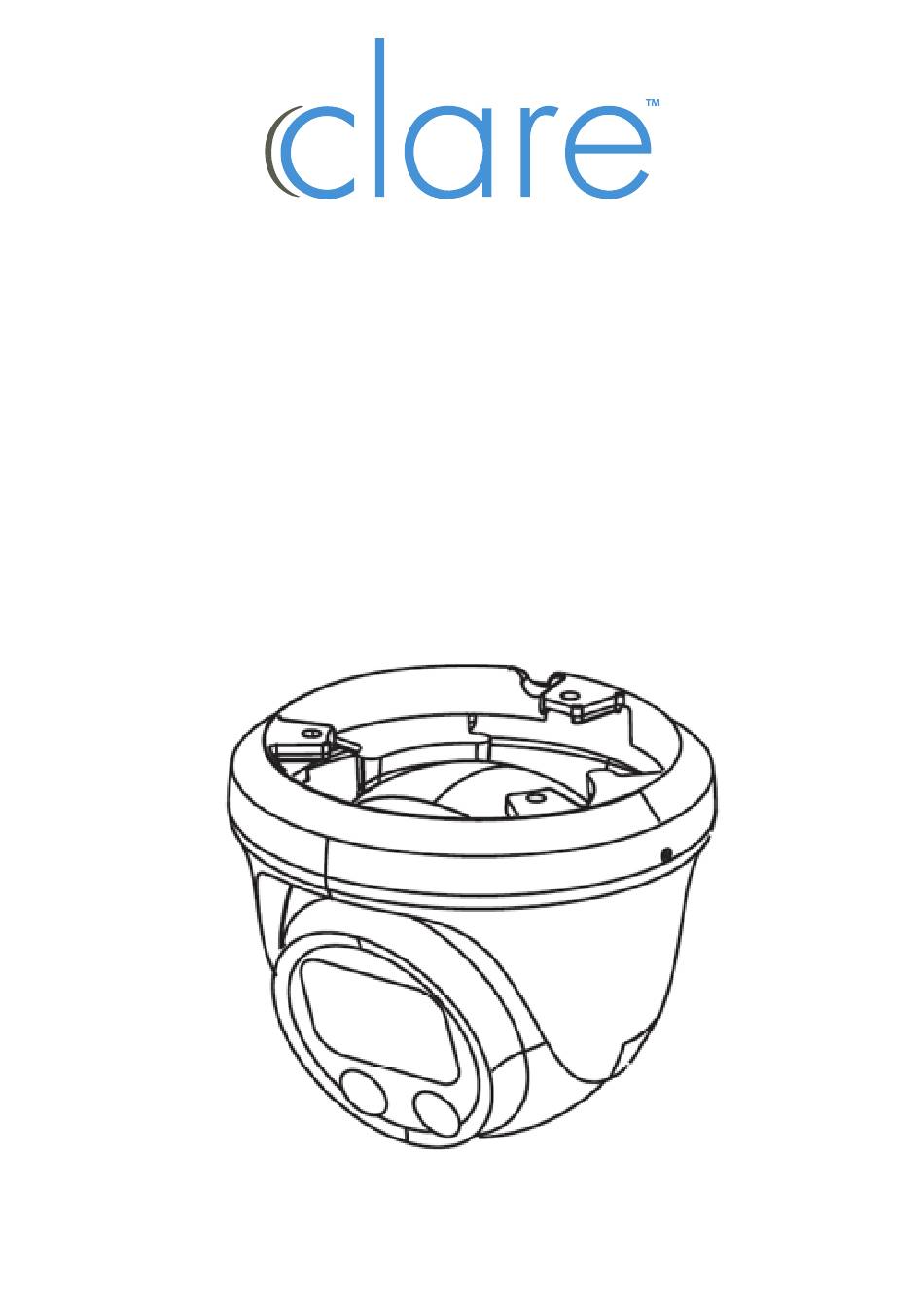

- Page 1 ClareVision Video Surveillance Value and Performance Series Fixed Lens Turret Camera Installation Guide 1 | ClareVision Value and Performance Turret Cameras...
-
Page 2: Required Equipment
For Setting up cameras and complete user manuals, please scan these QR codes: Quick Start Guide User Manual https://bit.ly/34bIlND https://bit.ly/34eKmsq Box Contents • Camera • Mounting template • Mounting kit • Accessory kit Required Equipment • Phillips head screwdriver • Power source: Ethernet cable •... - Page 3 Inspection Ensure that the device is in good condition and all the assembly parts are included. • Make sure that all equipment is powered o during installation. • Ensure the mounting surface is strong enough to withstand three times the weight of the camera and the mount.
- Page 4 Overview Before installing, familiarize yourself with the parts of the camera. Performance Value Series Cables Series Cables 4 | ClareVision Value and Performance Turret Cameras...
-
Page 5: Installation
Installation 1. Drill a cable hole and ¼” pilot holes, using the supplied template. 2. Using the provided hex-key, loosen the machine screw on the side and remove the base. Note: When removing the base, do so on a flat surface to avoid dropping the camera body. - Page 6 Installation 3. Insert the drywall anchors. Secure the base to the mounting surface using provided screws. 4. Connect an ethernet cable that is connected to the desired POE enabled network into the camera’s ethernet adapter. 6 | ClareVision Value and Performance Turret Cameras...
- Page 7 Installation 5. Rotate the camera body to the desired viewing angle. 6. Snap the camera body into the base. 7. Using the provided hex-key, tighten the machine screw on the side until the camera body is secured firmly to the base. Note: A small “lip”...
- Page 8 Camera Setup & Default Password IMPORTANT NOTE: The default camera setup password is the FIRST 6 Characters of the UUID/SN. You will be prompted to change the password when setting up the camera. Please refer to the Quick Start Guide for complete setup instructions or by visiting: https://bit.ly/34bIlND Support...
-
Page 9: Contact Information
Sarasota, FL 34243 General: 941.328.3991 Fax: 941.870.9646 www.clarecontrols.com Warranty Information Clare Controls offers a two (2) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, please visit: www.clarecontrols.com/warranty... -
Page 10: Camera Information
Camera Information Please provide this guide to the customer and notate the camera installation location and new camera password. This guide includes important camera details. Camera Password:_____________________ Installattion Location:___________________ Camera Details: Product Label Doc ID: 2021-03-2058-07 10 | ClareVision Value and Performance Turret Cameras...
