TimeLine Micro Lynx M3 Option Card Prom Installation Manual

DATE: 9/3/92
MODEL:
Micro Lynx
REVISION: All
SERIAL NO:
All
SOFTWARE:
All
REQUIRED TOOLS:
Static safe workstation
Grounding wrist strap
Phillips screwdriver
REQUIRED PARTS:
Software Information Sheet
Replacement PROM from TimeLine
PROCEDURE:
1. Turn off the power to the System Unit.
Disconnect all cables.
2. Place the Micro Lynx System Unit on a
static safe workstation. Ground yourself
and the workstation anti-static mat.
3. Remove the six phillips screws holding the
top cover to the chassis and remove cover.
(See Figure 1)
4. Remove the ACG Card, if installed, by
removing the two phillips screws securing
the card to the bracket. Slide the ACG
Card forward until the connectors clear
the back panel. Turn the ACG Card over
and disconnect the option card ribbon
cable from the M3 Card and the main
ECC NO. 468
IC Extractor/Insertor or
small slotted screwdriver
Page 1
PROM Installation Guide
Micro Lynx M3 Option Card
1755 LA COSTA MEADOWS DRIVE, SUITE B
board. Place the ACG on a static safe
workstation. (See Figure 2)

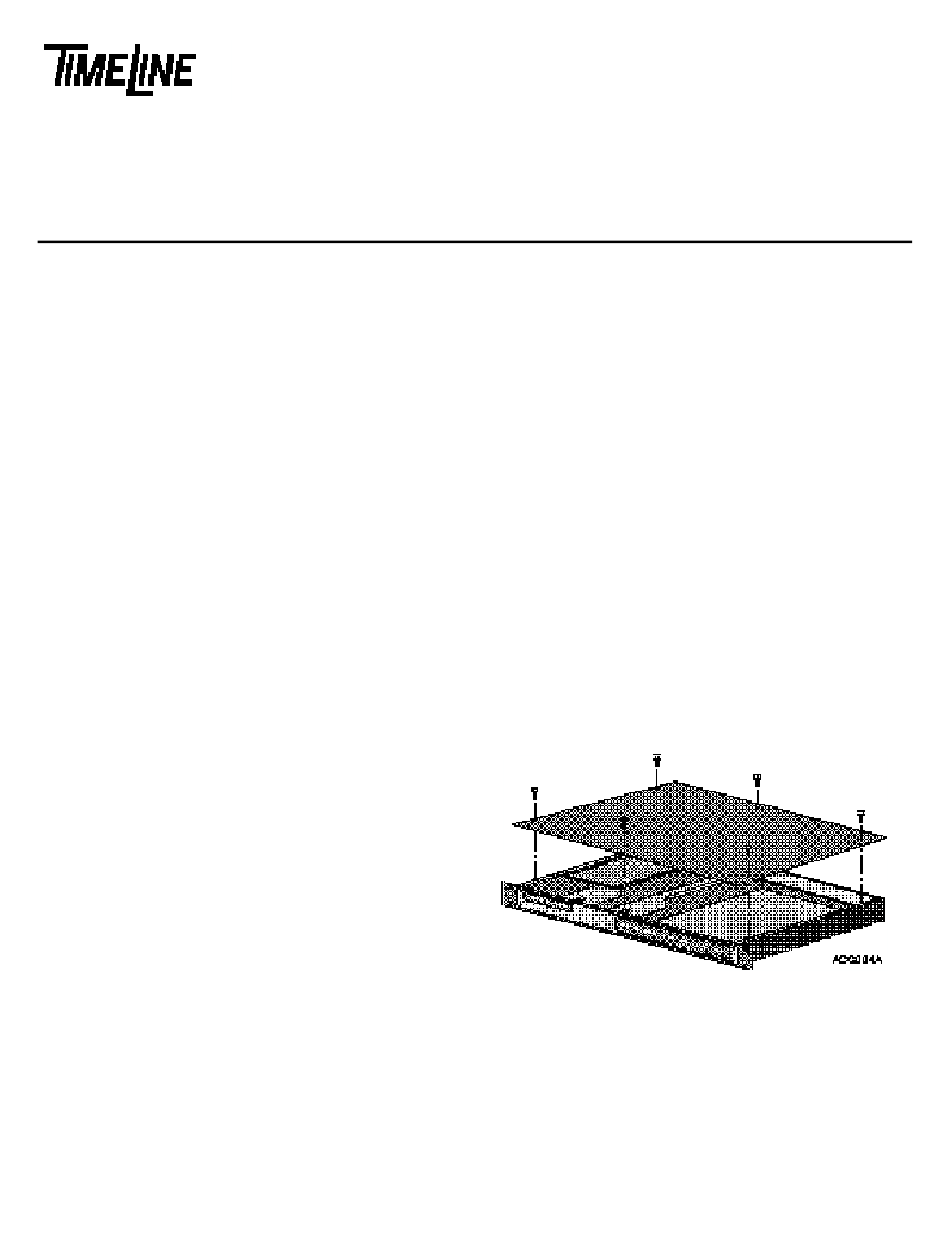

Figure 1. Remove the Top Cover
TIMELINE VISTA, INC.
SAN MARCOS, CA 92069
TEL. 760-761-4440
(FAX 760-761-4449)
SUPPORT@DIGAUDIO.COM
73J019 REV. B
