Quick Installation Guide

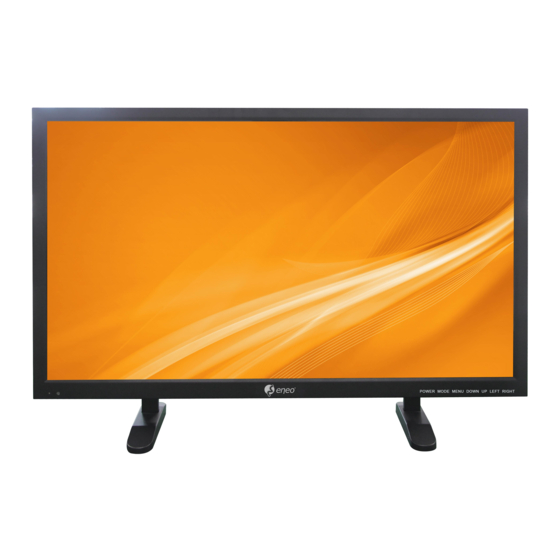

32" (81cm) LCD Monitor, 4K
UHD, 3840x2160, LED, USB,
DisplayPort, HDMI, DVI, VGA
VM-UHD32M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM-UHD32M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eneo VM-UHD32M

  • Page 1 Quick Installation Guide 32" (81cm) LCD Monitor, 4K UHD, 3840x2160, LED, USB, DisplayPort, HDMI, DVI, VGA VM-UHD32M...
  • Page 6 1.Introduction 1.1 Controls 1 2 3 4 5 6 7 Power Turn On/Off monitor Mode Choose Source Input Open OSD Menu Down Control OSD Status Control OSD Status Control OSD Status Left Right Control OSD Status 1.2 Accessories VGA Cable POWER-OFF POWER-NO AUTO...
  • Page 7: Connection Options

    1.3 Connection Options HDMI INPUT AC 220V DVI INPUT VGA INPUT DP INPUT AC input socket AC IN HDMI HDMI Input DVI Input VGA Input DP Input CVBS CVBS Input AUDIO Input AUDIO1 AUDIO2 AUDIO Input USB Input...
  • Page 8: Remote Control Key Functions

    1.4 Remote Control Key Functions Switch on monitor when at standby mode or vice versa Press to mute the sound . Press again or press Mute VOL+ to unmute POWER-OFF POWER-NO Menu selectioon VOL +/- AUTO SOURCE Press to increase/decrease MENU ENTRT LEFT...
  • Page 9: Basic Osd Setup

    2. Basic OSD Setup 2.1 Turning on and off the CCTV monitor 2.1.1 Turn on monitor - Connect the AC input cable to monitor ,then press the main power switch on the monitor. At this time the monitor will enter into standby mode and the indicator light turn red. - Using buttons can turn on monitor from standby mode as follows:Press “Power”...
  • Page 10: Osd Setup

    2.4 OSD Setup 2.4.1 OSD Menu introduction Picture Mode Menu Language Color Model Restore Default Adjust Software Update(USB) EDID Switch EDID2. 0 Zoom Mode Select Move Exit Select Move Exit ENTER MENU ENTER MENU - Press “Menu”button - Press “ ”to select which function adjusted - Press “...
  • Page 11 2.4.3 OSD “Color Mode” Color Mode Normal R 128 G 128 MENU - Press “Menu”button; - Press “ ”to select which function adjusted - Press “Color Mode”; - Press “ ”to adjust function - Press “Menu”to left OSD 2.4.4 OSD “Menu Language” Menu Language English Chinese...
  • Page 12 2.4.5 OSD “VGA Adjust” VGA Adjust H-Pos 50 V-Pos 50 Clock 50 Phase 11 Auto MENU - Press “Menu”button; - Press “ ”to select which function adjusted - Press “Enter” in “VGA Adjust” selection; - Press “ ”to adjust function - Press “Menu”to left OSD 2.4.6 OSD “Zoom Mode”...
  • Page 13 2.4.7 OSD “Software Upate” Are you sure to update? - Press “Menu”button; Press “ ”to next page - Press “ ”to select which function - Press “ ” to confirm “Yes”;Press “ ” to confirm “No”; - Wait System updated 2.4.8 OSD “Restore Default”...
  • Page 16 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
