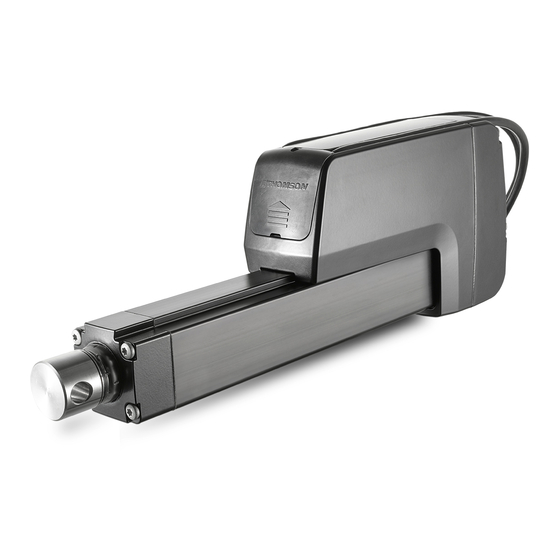

- Page 1 Thomson Electrak ® Electric Linear Actuator Installation Manual Edition 2020-11 www.thomsonlinear.com...
- Page 2 (12) months from date of delivery. The application of this product is the responsibility of the buyer and Thomson makes no representation or warranty as to the suitability of the product for any particular use or purpose. For a copy of the entire warranty for this product that is contained in our standard terms and conditions of sale, please go to http://www.thomsonlinear.com/website/com/...
-
Page 3: Table Of Contents
4.6 Control options installation and operation ............12 5. Troubleshooting ..................14 5.1 Troubleshooting ....................14 6. Technical specifications ................ 15 6.1 Technical data ...................... 15 6.2 Ordering key ......................16 Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®... -
Page 4: General
1.4 Transport and storage The actuator may only be transported and stored in the original packaging supplied by Thomson. The temperature during transportation and storage must be between -40 to +85° C (-40 to +185° F). Avoid shocks to the package. If the package is damaged, check the actuator for visible damage and notify the carrier, and if appropriate also Thomson. -
Page 5: Safety
3. Standards 3.1 EC Declaration of incorporation of partly completed machinery We, Thomson Linear declare that this product corresponds with the International Standard ISO 13766:2006-05 2nd Edition (Earth Moving Machinery, Electromagnetic Compatibility) and standards EN 50155, EN 60077, EN 45545. -
Page 6: Installation
If you need any assistance from Thomson, please provide the serial number, manufacturing date and the designation of the actuator(s) in question. You can also use the QR code on the label to directly access Electrak LL information on www.thomsonlinear.com. -
Page 7: Mechanical Installation
42 (1.654) 12.2 E9 (0.48) 12.8 (0.506) 12.2 E9 (0.48) 12.8 (0.506) M12 × 1.75 1/2-20 NF-2B M16 × 2 8.2 (0.323) 8.2 (0.323) 19 (0.748) 19 (0.748) 19 (0.748) Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®... - Page 8 3. Make sure to put the cover plate back correctly and torque the screw to 1.2Nm (10.6 in-lb) to ensure that the actuator cover plate and connectors are properly sealed. Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®...
- Page 9 2. Put the sensor (b) into one of the slots and and lock it at the desired position by turning the clamp screw 45 degrees (c). If the sensor is mounted in the immediate vicinity of magnetic components, the switching characteristics of the sensor may change. Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®...
-
Page 10: Electrical Installation
Signal cable Power Lead Cross Sections Length of cable (L) Min. allowed cross section (X) 0 - 4 m 1.5 mm [AWG 16] 4 - 10 m 2.5 mm [AWG 14] Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®... - Page 11 (also see section 4.6.3). The resistor must have a resistance between 2.3 - 3.3 Ohm and be able to handle at least 100 W. Thomson Electrak LL Actuator - Installation Manual - 2020-11...
-
Page 12: Control Options Installation And Operation
• Never work on the actuator or the wiring with the power switched on! 4.6.2 Speed control by adjusting the input voltage Electrak LL can not be speed controlled by adjusting the input voltage. When using battery or full wave rectified direct current that are within the acceptable voltage limits, the built in Electronic monitoring package will keep the actuator at the correct speed for the load in question. - Page 13 Input current @ 24 Vdc [mA] Fuse Brake resistor (section 4.5.6) not used Switch retract Switch extend input stop extend Limit switch stop extend input stop retract Limit switch stop retract extend retract – Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®...
-
Page 14: Troubleshooting
Slow-blow fuses are also recommended. The actuator is not stopping at External limit switches are in Control the functionality of the external limit switches. the right place. incorrect position or are not working. Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®... -
Page 15: Technical Specifications
Thomson 7. Technical specifications 7.1 Technical data Technical Specification ELECTRAK LL Input voltage [Vac] Input voltage tolerance [Vdc] 16.8 - 32 Stroke length [mm] see product label Static load at fully retracted (Fx), maximum [kN (lbs)] 18 (4050) Dynamic load (Fx), maximum... -
Page 16: Ordering Key
0300 Example 1. Actuator type and supply voltage 6. Rear adapter option LL24 = Electrak LL, 24 Vdc M = cross hole for 12 mm pin E = cross hole for ½ inch pin 2. Screw type, dynamic load capacity N = forked cross hole for 12 mm pin B040- = ball screw, 4.0 kN (899 lbs) - Page 17 Thomson Thomson Electrak LL Actuator - Installation Manual - 2020-11 ®...
- Page 18 Electrak_LL_Installation_Operation_MNUK-0007-02 | 20201123TJ Specifications are subject to change without notice. It is the responsibility of the product user to determine the suitability of this product for a specific application. All trademarks property of their respective owners. ©2020 Thomson Industries, Inc.
