GrowSpan 500 Series Assembly Instructions Manual

Door kits, double swinging door, twin-wall/corrugated polycarbonate
Hide thumbs Also See for 500 Series:

Advertisement

Quick Links

Download this manual
Finished Grade

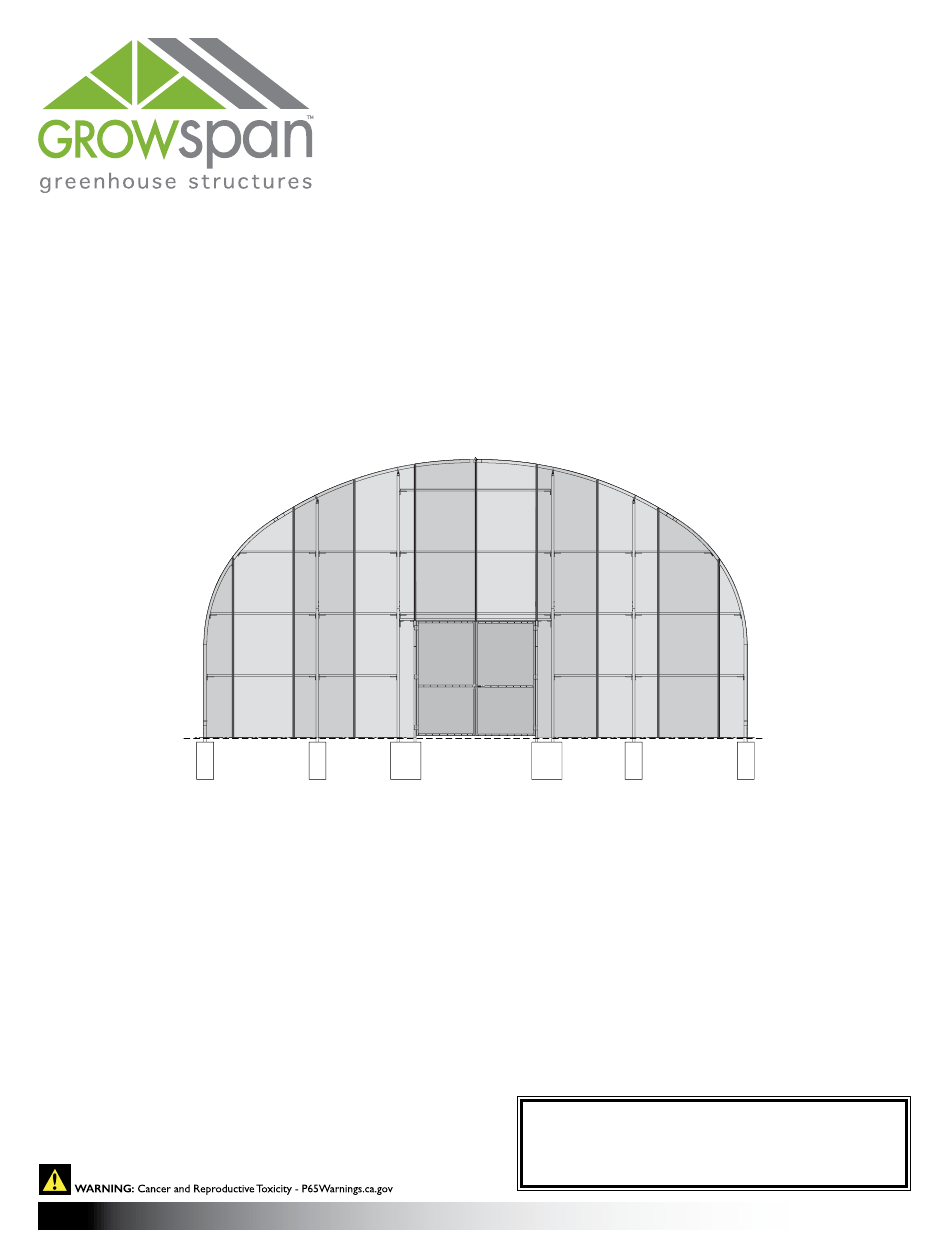

Diagram shows a double-swinging door centered and installed in an end wall frame.
The door kit includes materials for the door and tubing for the door frame only. All other
components shown in the diagram above and other diagrams throughout this guide are
not included and require additional purchase. Actual building width may differ.
©2018 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
Revision date: 07.18.18
GrowSpan
Series 500
™
Door Kits
Double Swinging Door
Finished Grade
STK#
GS05KDR2SWT (Twin-Wall Polycarbonate)
GS05KDR2SWC (Corrugated Polycarbonate)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for GrowSpan 500 Series

Summary of Contents for GrowSpan 500 Series

  • Page 1 The door kit includes materials for the door and tubing for the door frame only. All other components shown in the diagram above and other diagrams throughout this guide are not included and require additional purchase. Actual building width may differ. ©2018 GrowSpan STK# All Rights Reserved. Reproduction GS05KDR2SWT (Twin-Wall Polycarbonate) is prohibited without permission.

  • Page 2: Table Of Contents

    Table of Contents Important Information ..........3 DOUBLE SWINGING DOOR KIT: READ THIS BEFORE YOU BEGIN Door Frame Assembly ..........5 Twin-Wall Double Swinging Doors ......6 Corrugated Double Swinging Doors .......9 The double swinging door kit is designed to attach Shelter Care and Maintenance ........12 to any of these end frame kits: GS05KEW20G72, Quick Start Guide .............13 GS05KEW24G72, GS05KEW30G72 and...

  • Page 3: Important Information

    • Wrench and socket and ratchet set that includes 1/2" BEGIN TO ASSEMBLE THE DOOR KIT. size Thank you for purchasing this GrowSpan™ door kit. • Variable speed drill (cordless with extra batteries When properly assembled and maintained, this product works best) will provide years of reliable service.
  • Page 4 Important Information ASSEMBLY PROCEDURE PARTS IDENTIFICATION Following the instructions as presented will help ensure The following graphics and photos will help identify the the proper installation of the end frame and door. The different hardware for each door. (Some parts are not steps outlining the assembly process are as follows: shown.) 1.

  • Page 5: Door Frame Assembly

    Door Frame Assembly ASSEMBLING THE DOOR FRAME COMPONENTS Consult the diagrams at the back of these instructions before you begin. Assistance is required to assemble the door frame and door. The following steps describe one way to assemble the door frame and door. 1.

  • Page 6: Twin-Wall Double Swinging Doors

    Twin-Wall Double Swinging Doors DOUBLE TWIN-WALL DOOR ASSEMBLY 6. Install aluminum U-channel profile to all edges of panel. The 104213 sections at top and bottom of If your doors include corrugated polycarbonate panel run to panel edges to seal panel cells. panels, skip this section and continue with the assembly steps for those doors.
  • Page 7 Twin-Wall Double Swinging Doors DOUBLE TWIN-WALL DOOR ASSEMBLY (continued) 13. Place main handle of assembly through hole in door and twist main handle and front plate into place. 10. With assistance, set the assembled doors in the end wall door frame and secure hinges to the door jamb using one Tek screw per hinge at this time.
  • Page 8 Twin-Wall Double Swinging Doors DOUBLE TWIN-WALL DOOR ASSEMBLY (continued) 18. Attach the 6" chain bolt to the inside, upper corner of the door without the handle. (See X in drawing below for location.) Install screws through Inside View this part of the profile. End cap used for door stop and seal.

  • Page 9: Corrugated Double Swinging Doors

    Corrugated Double Swinging Doors DOUBLE CORRUGATED DOOR ASSEMBLY Valley If your doors includes 8mm twin-wall polycarbonate, skip this section and continue with the assembly steps for that door. The materials and parts needed to assemble the double door include: Corrugated Panel •...
  • Page 10 Corrugated Double Swinging Doors DOUBLE CORRUGATED DOOR ASSEMBLY (continued) Closure Strip 6. Install sections of the horizontal closure strips (104709) under the panel before attaching the panel to the door frame. Trim closure strips as needed. 7. Drive Tek screws and washers through the panel, closure strip, and into the frame every 6"...
  • Page 11 Corrugated Double Swinging Doors DOUBLE CORRUGATED DOOR ASSEMBLY (continued) 13. Attach the 6" chain bolt to the inside, upper corner of ATTENTION: This profile acts as a stop for the the door without the handle (see X in drawing below). double doors, which prevents undo stress on the hinges.

  • Page 12: Shelter Care And Maintenance

    Shelter Care and Maintenance SHELTER CARE AND MAINTENANCE Proper care and maintenance of the doors is important. Space below is reserved for customer notes. Check the following items periodically to properly maintain the doors and door frame: • Regularly check the polycarbonate panels to see that they remain secure and in good condition.

  • Page 13: Quick Start Guide

    Quick Start Guide ATTENTION: End frame and end rafter are not included with any door kit. Actual width of the building end wall may differ. QUICK START GUIDE Double Swinging Door Kit (GS05KDR2SWT and GS05KDR2SWC) Twin-Wall Double Door Sample GS05KDR2SWT Ground Level Corrugated Double Door Sample GS05KDR2SWC...

  • Page 14: Door Frame Layout

    Revision date: 07.18.18...

  • Page 15: Door Frame Detail Connections

    Revision date: 07.18.18...
