GrowSpan 500 Series Manual

Door kits single swinging door
Hide thumbs Also See for 500 Series:

Advertisement

Quick Links

Download this manual
Finished Grade

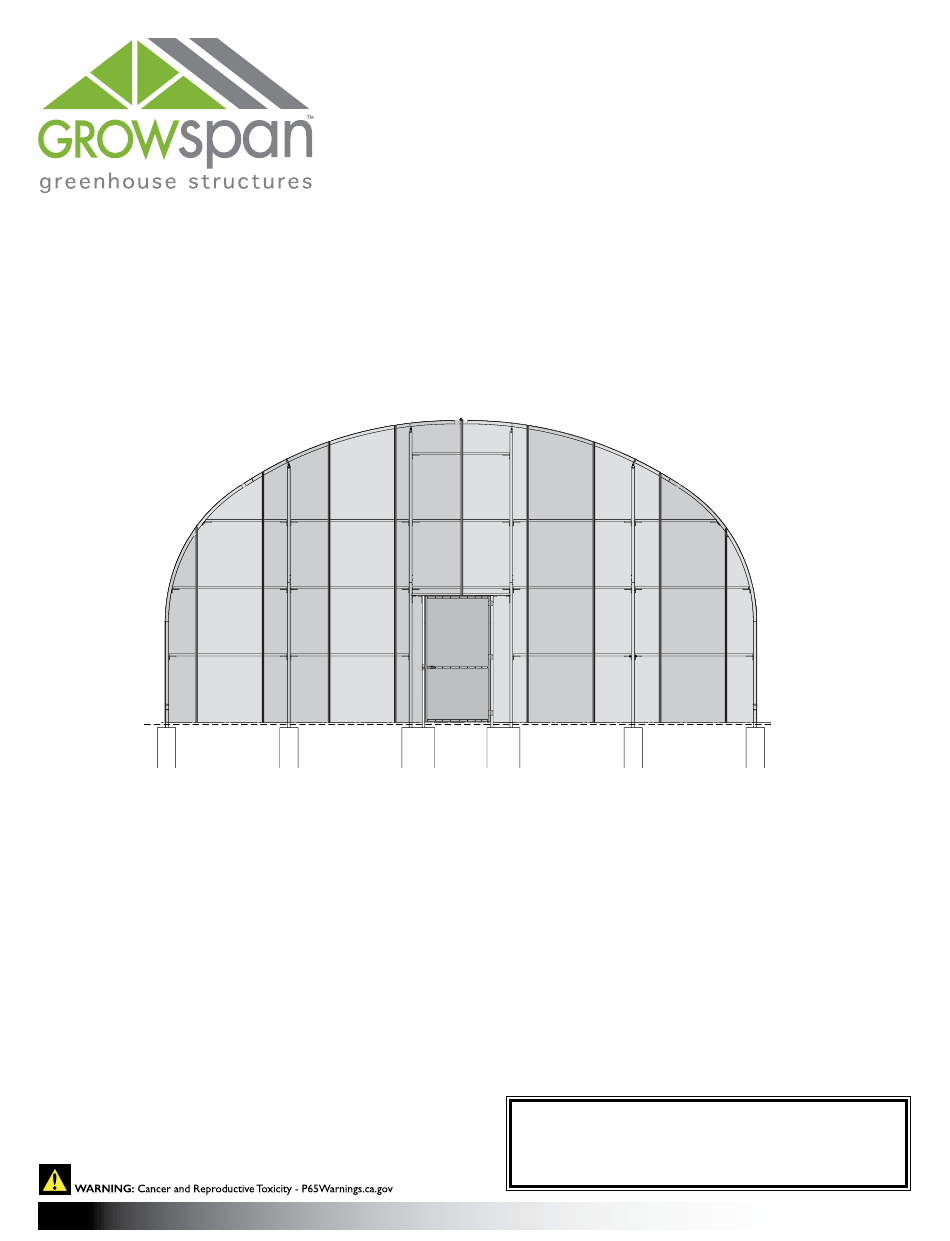

Diagram shows a swinging door centered and installed in an end wall frame. The door kit
includes materials for the door and tubing for the door frame only. All other components shown
in the diagram above and other diagrams throughout this guide are not included and require
additional purchase. Actual building width may differ.
©2018 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
Revision date: 07.18.18
GrowSpan
Series 500
™
Door Kits
Single Swinging Door
Finished Grade
STK#
GS05KDR1SWT (Twin-Wall Polycarbonate)
GS05KDR1SWC (Corrugated Polycarbonate)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GrowSpan 500 Series

Summary of Contents for GrowSpan 500 Series

  • Page 1 All other components shown in the diagram above and other diagrams throughout this guide are not included and require additional purchase. Actual building width may differ. ©2018 GrowSpan STK# All Rights Reserved. Reproduction GS05KDR1SWT (Twin-Wall Polycarbonate) is prohibited without permission.

  • Page 2: Table Of Contents

    Table of Contents Important Information ..........3 SINGLE SWINGING DOOR KIT: READ BEFORE YOU BEGIN Door Frame Assembly ..........5 Twin-Wall Single Swinging Door ......6 Corrugated Single Swinging Door ......8 The single swinging door kit is designed to attach to any of Quick Start Guide .............10 these end frame kits: GS05KEW20G72, GS05KEW24G72, Door Frame Layout ...........11...

  • Page 3: Important Information

    BEGIN TO ASSEMBLE THE DOOR KIT. • Wrench and socket and ratchet set that includes 1/2" size Thank you for purchasing this GrowSpan™ door kit. When properly assembled and maintained, this product • Variable speed drill (cordless with extra batteries will provide years of reliable service.
  • Page 4 Important Information ASSEMBLY PROCEDURE PARTS IDENTIFICATION Following the instructions as presented will help ensure The following graphics and photos will help identify the the proper installation of the end frame and door. The different hardware for each door. (Some parts are not steps outlining the assembly process are as follows: shown.) 1.

  • Page 5: Door Frame Assembly

    Door Frame Assembly ASSEMBLING THE DOOR FRAME COMPONENTS Consult the diagrams at the back of these instructions before you begin. Assistance is required to assemble the door frame and door. The following steps describe one way to assemble the door frame and door. 1.

  • Page 6: Twin-Wall Single Swinging Door

    Twin-Wall Single Swinging Door SINGLE TWIN-WALL DOOR ASSEMBLY 6. Install aluminum U-channel profile to all panel edges. The 104213 sections at top and bottom run to panel If your door includes a corrugated polycarbonate edges to seal the cells. panel, skip this section and continue with assembly steps for that door.
  • Page 7 Twin-Wall Single Swinging Door 12. After assembling the door, evenly space the three (3) SINGLE TWIN-WALL DOOR ASSEMBLY (continued) hinges along the door frame of the door and attach the hinges to the assembled door using Tek screws 9. Place main handle of assembly through hole in door and twist main handle and front plate into place as shown in the drawing below.

  • Page 8: Corrugated Single Swinging Door

    Corrugated Single Swinging Door SINGLE CORRUGATED DOOR ASSEMBLY Valley If your door includes 8mm twin-wall polycarbonate, return to and complete the assembly steps for that door. The materials and parts needed to assemble the corrugated polycarbonate door include: Corrugated Panel •...
  • Page 9 Corrugated Single Swinging Door SINGLE CORRUGATED DOOR ASSEMBLY (continued) Closure Strip 6. Install sections of the horizontal closure strips (104709) under the panel before attaching the panel to the door frame. Trim closure strips as needed. 7. Drive Tek screws and washers through the panel, closure strip, and into the frame every 6"...

  • Page 10: Quick Start Guide

    Quick Start Guide ATTENTION: End frame and end rafter are not included with any door kit. Actual width of the building end wall may differ. QUICK START GUIDE Single Swinging Door Kit (GS05KDR1SWT and GS05KDR1SWC) Twin-Wall Door Sample GS05KDR1SWT Finished Grade Finished Grade Corrugated Door Sample GS05KDR1SWC...

  • Page 11: Door Frame Layout

    Revision date: 07.18.18...

  • Page 12: Door Frame Detail Connections

    Revision date: 07.18.18...

  • Page 13: Notes

    Notes Revision date: 07.18.18...

This manual is also suitable for:

Gs05kdr1swtGs05kdr1swc
