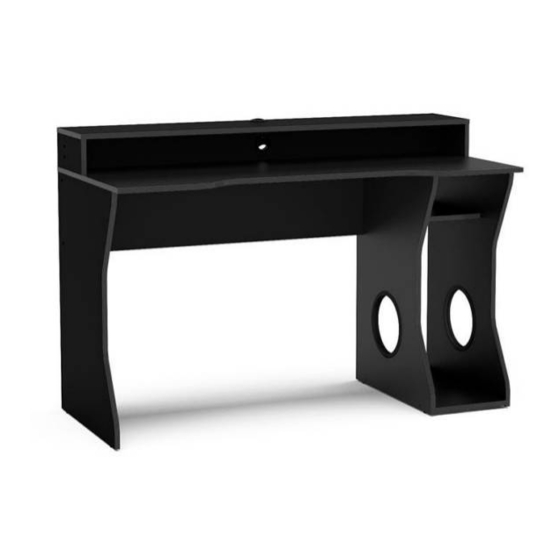

Enzo Wooden Gaming Desk
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.
Assembly Instructions
Title of Product
.
.
www.happybeds.co.uk

Advertisement

loading

Related Manuals for Happybeds Enzo Wooden Gaming Desk

Summary of Contents for Happybeds Enzo Wooden Gaming Desk

  • Page 1 Assembly Instructions Title of Product Enzo Wooden Gaming Desk Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
  • Page 3 Vendor: S000139 Parts List Part Descripion Box Qty Shelf Bottom Base Lower Backboard Lower Left Side Lower Division Lower Right Side Top Base Upper Left Side Upper Right Side Top Backboard Page...
  • Page 4 Vendor: S000139 Hardware List Descripion Part Smalll Plastic foot 4,0 x 40 mm Screw 8 x 30 mm Wooden Dowel 8 x 50 mm Wooden Dowel Structural Screw Allen Key Structural Screw Cover Simple Minifix Screw Cam Lock Bore patch adhesive 10 x 10 mm Tack 4,5 x 45 mm Screw Pass Wires...
  • Page 5 Vendor: S000139 Step 1: Insert hardware parts E and F using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 6 Vendor: S000139 Step 4: Attach the hardware part J to the top base (15) and top (16) using the a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Insert hardware part E using small mallet (not provided).
  • Page 7 Vendor: S000139 Step 6: Attach the upper left side (17) to the top backboard (19) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Join the upper right side (18) to the assembled section using hardware part G, H and I.
  • Page 8 Vendor: S000139 Step 8: Join the top base (15) to the assembled section using hardware part L and a screwdriver. Insert the hardware part M to the upper left side (17) and the upper right side (18). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 9: Join the top (16) to the assembled section using hardware part O and a screwdriver (not provided).
  • Page 9 Vendor: S000139 Step 10: Join the top (16) to the top backboard (19) using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 11: Attach the lower division (13) to the lower backboard (11) using hardware part G, H and I.
  • Page 10 Vendor: S000139 Step 12: Join the shelf (03) and bottom base (04) to the lower division (13) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 13: Join the lower right side (14) to the shelf (03) and bottom base (04) using hardware part G, H and I.
  • Page 11 Vendor: S000139 Step 14: Attach the lower left side (12) to the lower backboard (11) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 15: Join the top (16) to the lower left side (12), lower division (13) and lower right side (14) using hardware part L and a screwdriver (not provided).

  • Page 12: Additional Information

    Vendor: S000139 Step 16: Attach hardware part A2 to the o the lower left side (12), lower division (13) and lower right side (14) using hardware part N and small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 17: Insert hardware part P6 to the top base (15) and top backboard (19).

  • Page 13: General Care And Maintenance

    If this is not adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
