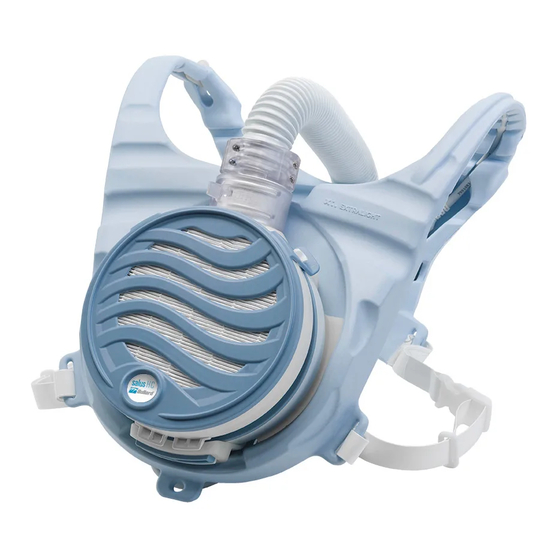

SALUS HC User Instructions
Limitations of Use and Warnings
Failure to follow these warnings AND INSTRUCTIONS could result in death or
serious injury.
Use strictly in accordance with instructions, labels and limitations pertaining to the
EVA/EVAHL/SALUS HC-series respirators.
1. This respirator does not supply oxygen. Use only in adequately ventilated areas
containing at least 19.5% oxygen.
2. Do not use when concentrations of contaminants are immediately dangerous to
life or health (IDLH), i.e. – one for which the wearer cannot escape without the
aid of a respirator without suffering injury either immediate or long term. See
29CFR 1910.134 (b).
3. Do not use this respirator for respiratory protection during abrasive blasting or
clean up.
4. Do not use in circumstances where the airborne concentration level of
contaminant exceeds maximum use concentration for this type of respirator as
established by regulatory standards.
5. Leave area immediately if:
a. Breathing becomes difficult
b. Dizziness or other distress occurs
c. You taste or smell the contaminant
d. Unit becomes damaged
e. Battery alarm activates
f. Low Flow alarm activates
6. This apparatus must not be worn with the blower unit switched off. If the blower is
switched off, a rapid build-up of carbon dioxide and depletion of oxygen may
occur, which could result in death or serious injury.
7. Never alter or modify this respirator. Use only Bullard manufactured components
and replacement parts for use with this respirator. Failure to use Bullard
manufactured components and replacement parts, as listed on the NIOSH
approval label, voids NIOSH approval of the entire respirator, and invalidates all
Bullard warranties.
8. This device is not immune to highly powered RFI/EMI emissions.
9. Use strictly in accordance with instructions, labels and limitations pertaining to
this respirator
In addition to the above stated warning and instructions, the SALUS HC respirator is
intended to be used only in a pharmaceutical, hospital and/or medical setting.
Advertisement
Table of Contents
Related Manuals for Bullard SALUS HC
Summary of Contents for Bullard SALUS HC
- Page 1 9. Use strictly in accordance with instructions, labels and limitations pertaining to this respirator In addition to the above stated warning and instructions, the SALUS HC respirator is intended to be used only in a pharmaceutical, hospital and/or medical setting.
-
Page 2: Approvals And Certifications
Approvals and Certifications The SALUS™ HC Powered Air-Purifying Respirator (PAPR) system, manufactured by Bullard, meets the NIOSH PAPR100-P standard Bullard is certified to ISO 9001:2015 What is a PAPR A PAPR or powered air-purifying respirator protects the user by filtering out contaminants in the air. - Page 3 BULLARD 1898 Safety Way CYNTHIANA, KY 41031 USA 877-BULLARD (285-5273) MODEL SALUS HC SERIES POWERED AIR PURIFYING RESPIRATORS THESE RESPIRATORS ARE APPROVED ONLY IN THE FOLLOWING CONFIGURATIONS: RESPIRATOR COMPONENTS BREATHING BLOWER FILTER CARRIAGE PROTECTION ALTERNATE HOOD ASSEMBLIES BATTERY CHARGER CAUTIONS AND LIMITATIONS...
-
Page 4: Pre-Inspection
Setup and Getting Started Initial unboxing SALUS HC will ship in an outer pack box and packaged up to three (3) units per box. The inner box is intended to keep your SALUS HC free from damage, clean and organized for long term storage. The unit will arrive partially assembled only requiring the user to install the HEPA filter, battery and attach the breathing tube and hood. - Page 5 Battery fuel gauge d. Remove the battery to check battery level Battery installation e. Open battery door on the SALUS HC f. With battery pull tab facing out and the battery terminal on top, insert the battery into the battery housing...
- Page 6 2. Install blower motor on shoulder carriage a. Press the carriage release hook into the opening on the shoulder carriage b. Insert blower motor cradle into shoulder carriage c. Insert slotted tabs of blower motor into the blower motor cradle d.
-
Page 7: Complete Disassembly
Insert the other end of the breathing tube into the blower motor until you hear a CLICK Complete Disassembly 1. Disassemble SALUS HC in reverse order of assembly a. Breathing tube Engage the breathing tube release lever on the blower motor to... -
Page 8: Donning And Doffing
b. Blower motor Disconnect the power cord from the blower motor prior to removing the blower motor from the shoulder carriage Place thumb or finger on the blower motor cradle and gentle lift blower motor up c. Battery housing The battery housing and battery door can be removed from the shoulder carriage for deep cleaning Disconnect the power cord from the battery housing prior to removing the battery housing from the shoulder carriage... - Page 9 1. With SALUS HC completely assembled, place the PAPR onto your shoulders. 2. Turn the blower unit on. See Operating Setting for details. 3. Don the hood starting with your chin and pulling over your head. Make any final adjustments to the fit as required to ensure a comfortable and stable fit.
- Page 10 5. Adjust body straps to ensure a comfortable and stable fit. 6. Excess body strap material can be cut for a more customized fit. Note: See Selecting Hood Size for more guidance in selecting an appropriate hood size 7. Donning complete Note: SALUS can be worn under isolation gowns with special consideration.
-
Page 11: Operating Settings
5. Turn blower OFF. See Operating Instructions for details Note: Bullard does not make any specific claims around this doffing method relating to sterility. Please follow your organization’s standard operating procedures for specific donning and doffing instructions. -
Page 12: Understanding Alarms
Understanding Alarms Low Battery Alarm Low Airflow Alarm Loss of Communication The Low Battery Alarm will The Low Airflow Alarm will The Loss of sound an electronic beep sound a continuous Communication will sound indicating that there is electronic beep indicating a continuous electronic approximately 5% charge that the flow to the hood... - Page 13 This model is designated with an HE suffix. Users should select their size using the same methodology as the 20LF model. The 20LF model with the HE suffix can be used in any application where the SALUS HC respirator, certified under the PAPR100-P standard, is appropriate. Additionally, it is intended to block large-particle droplets, splashes, sprays, or splatter from entering the hood.
-
Page 14: Cleaning, Storage, And Disposal
Thoroughly rinse the loose-fitting hood with clean, fresh water and allow to air- • dry. Bullard has tested several common decontamination and cleaning agents to • determine if the integrity of the loose-fitting hood has been compromised after decontaminating. Based on this testing, it was determined that the hoods did not... - Page 15 Peridox RTU (EPA ID 8383-13) Warning: Always read and follow the user instructions and/or EPA label for your selected disinfectant. Bullard strongly recommends that a water rinse/wipe down occur after disinfection to thoroughly remove disinfection solution and reduce the possibility of user irritation and premature degradation of equipment.
- Page 16 Powered Air Purifying Respirator Limited Warranty Models EVA, EVAHL AND SALUS HC Congratulations on your purchase! Bullard is to provide you with one of the best Limited Warranties in the industry to cover your Powered Air-Purifying Respirator (PAPR). Please read this document carefully as it contains information to help you protect and service your investment.
- Page 17 WARRANTY EXTENSION section below for details. SALUS HC BLOWER MOTOR WARRANTY EXTENSION The SALUS HC blower motor is eligible for a one (1) year Standard Limited Warranty Extension, if the Purchaser registers the product online, WARRANTY PERIOD ABOVE. NEITHER BULLARD NOR ITS DISTRIBUTORS SHALL BE LIABLE FOR ANY...
- Page 18 Bullard and all subsidiaries reserve the right to use replacement parts that are refurbished. Replaced or repaired parts, whether they have been refurbished or...
- Page 19 Supplemental Battery & Charger Instructions Warning: This manual contains instructions for use and important safety information. Read the instructions carefully before using the product. Safety • Do not open or dismantle batteries. • Do not expose batteries to heat or fire. Avoid storage in direct sunlight. •...
- Page 20 Recommendation Store the battery at below 20°C, low humidity, no dust and no corrosive gas atmosphere. Store the battery with a state of charge between 40-60%. Charging: Charge only with a SMBUS compliant charger, e.g. RRC-SMB-MBC. Refer also to the manufacturer’s instructions or equipment manual for proper charging instructions.
- Page 21 Introduction The smart battery charger is used to charge SMBUS batteries (Smart Batteries) with form factors RRC2040, 2040-2, 2054, 2057 or smart batteries with a similar footprint e.g. 204x range, 205x range, etc.. Caution Only batteries that comply with the Data Specification 1.0 or 1.1 can be charged with this battery charger.
- Page 22 FCC Advice, valid in USA Warning: This battery charger may not be located in the vicinity of a patient. In accordance with EN60601-1-1, the horizontal distance must be at least 1.5 meters. Do not insert a fully charged battery into the charger repeatedly. Due to the high initial charge, the battery could be overcharged which could lead to damage to the battery and to the battery charger Use the battery charger only in dry indoor environments! Wet and moisture covered products should not be used!
- Page 23 Declaration of Conformity: The battery charger complies to the current regulations of the EU guidelines. * valid only for power supply 60840013614A (0821)
