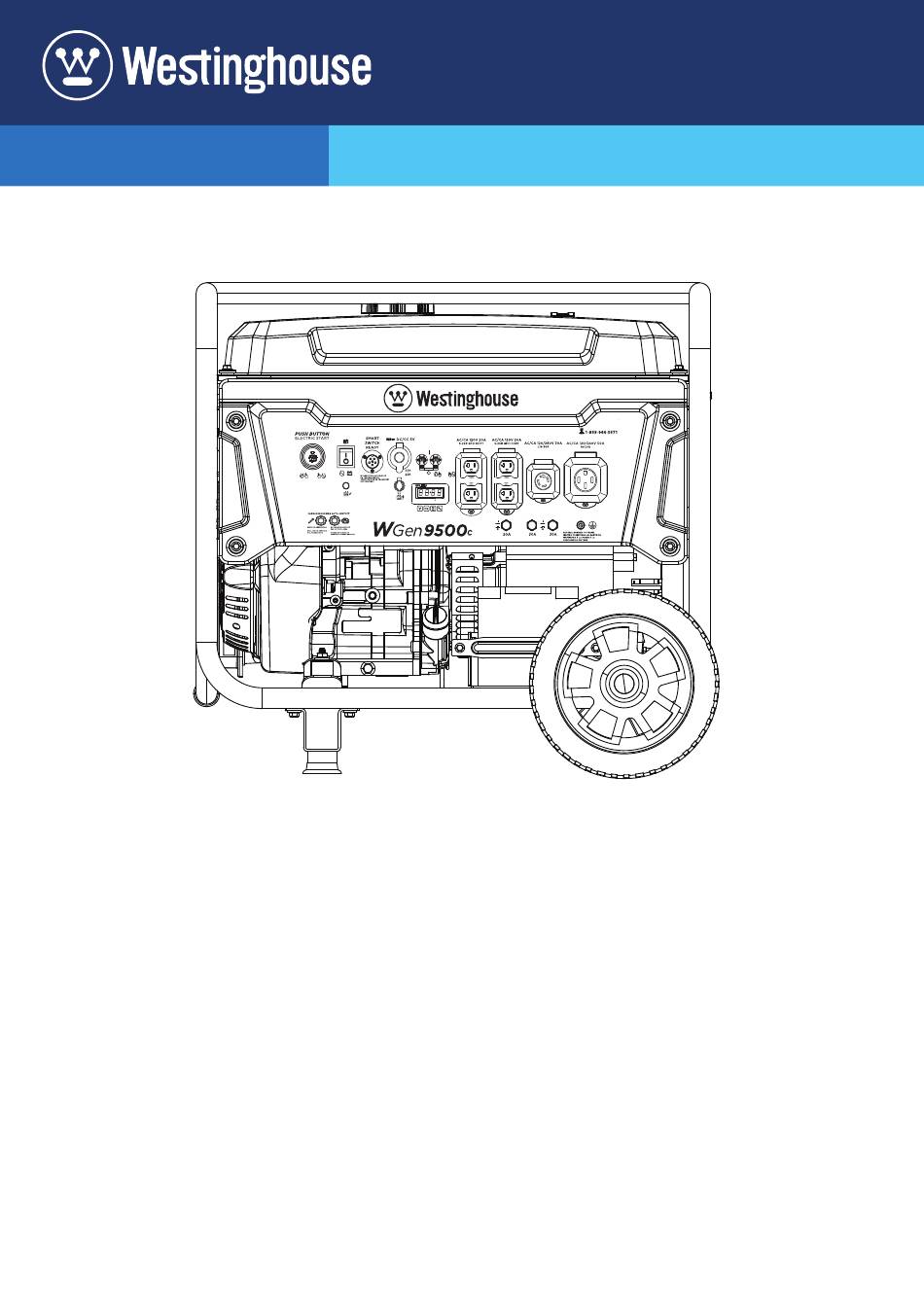

USER MANUAL
WGen9500c

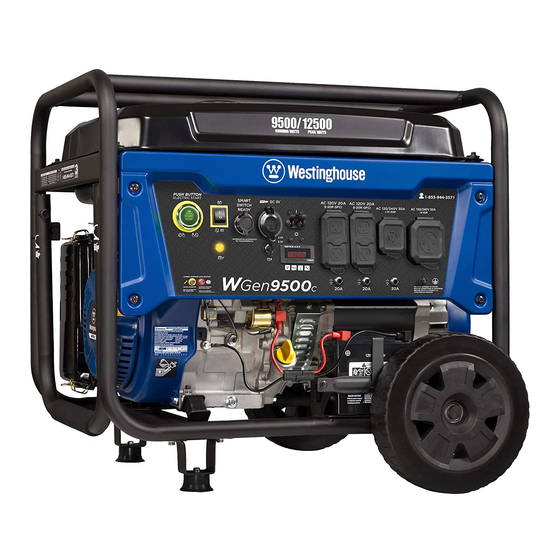

Portable Generator
Gasoline: 9500 Running Watts | 12500 Peak Watts
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call customer
service at 855-944-3571.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGen9500c and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Westinghouse WGen9500c

  • Page 1 USER MANUAL WGen9500c Portable Generator Gasoline: 9500 Running Watts | 12500 Peak Watts DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571.
  • Page 2: Table Of Contents

    The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice. 2 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 3: Specifications

    Model Number: Or scan the following QR code with your smartphone Serial Number: camera to be directed to the link. Place of Purchase: IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage. Westinghouse Outdoor Power Equipment, LLC | 3...
  • Page 4: Safety Definitions

    Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. NEVER use inside a home Only use OUTSIDE and far or garage, EVEN IF doors away from windows, doors, and windows are open. and vents. 4 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 5: Safety Instructions

    The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Westinghouse Outdoor Power Equipment, LLC | 5...
  • Page 6 • A transfer switch must be installed by a licensed electrician approved by the authority having jurisdiction. The installation must comply with all applicable laws and electrical codes. 6 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 7: Gfci

    To avoid nuisance tripping, a GFCI should not supply: fluorescent or other types of electric-discharge lighting fixtures or permanently installed electric motors, like air conditioners, furnaces or refrigerators. Westinghouse Outdoor Power Equipment, LLC | 7...
  • Page 8: Safety Labels And Decals

    SAFETY SAFETY LABELS AND DECALS 8 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 9: Co Sensor

    A CO sensor air immediately. Call emergency services. You may have fault can only be diagnosed and repaired carbon monoxide poisoning. by an authorized Westinghouse service ACTION LABEL center. Westinghouse Outdoor Power Equipment, LLC | 9...
  • Page 10: Components

    COMPONENTS COMPONENTS GENERATOR COMPONENTS 10 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 11: Control Panel Components

    If increasing levels of CO gas are maximum of 30 Amps. detected, the CO Sensor automatically shuts down the engine. 120/240 Volt AC, 50 Amp NEMA 14-50R Receptacle: Receptacle can supply a maximum of 50 Amps. Westinghouse Outdoor Power Equipment, LLC | 11...
  • Page 12: Carton Contents

    Note: The wheels are only intended for hand transport. • Cotter pin The wheels are not suitable for towing the generator either on or off-road. If any parts are missing, contact our service team at service@wpowereq.com or call 1-855-944-3571. 12 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 13: Initial Oil Fill

    3. Replace the oil dipstick and hand-tighten. gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system. Westinghouse Outdoor Power Equipment, LLC | 13...
  • Page 14: Connect The Battery

    Damage caused by spilled fuel is not covered under warranty. NOTICE Clean the fuel screen filter of debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank. 14 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 15: Operation

    (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation. Westinghouse Outdoor Power Equipment, LLC | 15...
  • Page 16: High Altitude Operation

    If your 4. Push and hold the START button on the key fob until the unit was shipped without a key fob, contact Westinghouse START/STOP button illumination turns OFF. Release customer service.
  • Page 17: Break-In Period

    If the generator will be used on an infrequent or intermittent basis (more than one month before next use), refer to the Battery Maintenance and Storage sections of this manual for information regarding battery charging and fuel deterioration. Westinghouse Outdoor Power Equipment, LLC | 17...
  • Page 18: Ac Circuit Breakers

    Light (75 Watts) Coffee Maker 2590 Total 1600 Running Highest Watts* Starting Watts* Total Running Watts 2590 Highest Starting Watts + 1600 Total Starting Watts Needed 4190 *Wattages listed are approximate. Verify actual wattage. 18 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 19: Power Management

    Drill (3/8”, 4 amps) receptacle being used. Circular Saw 1400 2300 (Heavy Duty, 7-1/4”) Miter Saw (10”) 1800 1800 Table Saw (10”) 2000 2000 *Wattages listed are approximate. Verify actual wattage. Westinghouse Outdoor Power Equipment, LLC | 19...
  • Page 20: St Switch

    Maintenance section for specific procedures. Maintenance Code Required Maintenance Change engine oil • Change engine oil • Clean air filter • Change engine oil • Clean air filter P100 • Fuel valve maintenance • Inspect/adjust valve clearance 20 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 21: Maintenance

    Allow the filter to dry thoroughly. NOTICE DO NOT pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility. Westinghouse Outdoor Power Equipment, LLC | 21...
  • Page 22: Engine Oil Level Check

    L and H marks on the dipstick. Stop frequently to check the oil level. DO NOT overfill. Maximum oil capacity: 1.16 Quart (1.1 Liter) 7. Install the oil dipstick and hand-tighten. 22 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 23: Spark Plug Maintenance

    1. Place the generator on a level surface. NOTICE 2. Remove the cover screws and the muffler cover. Use a ALWAYS use the Westinghouse OEM or compatible screw driver to remove the spark arrestor. non-resistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting.
  • Page 24: Battery Maintenance

    DO NOT use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion. 24 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 25: Valve Clearance

    9. Install the gasket, rocker arm cover, and spark plug. recoil handle until resistance is felt. At this position the piston is coming up on its compression stroke and both valves are closed. Storing the engine in this position will Westinghouse Outdoor Power Equipment, LLC | 25...
  • Page 26: Troubleshooting

    Replace or repair tool or appliance. Stop and Faulty power tool or appliance. No power at AC receptacles restart the engine. Contact Westinghouse customer service toll- Faulty generator. free at 1 (855) 944-3571. 26 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 27: Exploded Views And Parts Lists Exploded View A

    EXPLODED VIEWS EXPLODED VIEWS AND PARTS LISTS EXPLODED VIEW A Westinghouse Outdoor Power Equipment, LLC | 27...
  • Page 28 BOLT M6X12 97108 SPARK PLUG 274401 SPEED CONTROLLER 50010024 CYLINDER HEAD COVER ASSEMBLY 262701 THROTTLE LEVER 10.1 261104 CYLINDER HEAD COVER 264201 SPRING C 10.2 91819 CYLINDER HEAD COVER FASTENING BOLT 274101 SPRING B 28 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 29 221B 16.1.1 5910-221 START PULLER 16.1.2 5943 PULL 16.2 91325 BOLT M6X12 91817 OIL DRAIN BOLT 94004 OIL DRAIN BOLT WASHER 96075 CYLINDER HEAD COVER GASKET 96081 CARBURETOR GASKET 96086 AIR FILTER GASKET Westinghouse Outdoor Power Equipment, LLC | 29...
  • Page 30: Exploded View B

    EXPLODED VIEWS EXPLODED VIEW B 30 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 31 CONNECTING PIPE 9.10 533302-221 ALTERNATOR TAIL COVER 94402 FUEL LINE CLAMP 9.11 532303-052 TAIL BRACKET FIXING PLATE HANDLE WELDING ASSEMBLY 9.12 91512 BOLT M5X230 527603 HANDLE PLUG 9.13 90104 NUT M5 527612 BOLT M10 Westinghouse Outdoor Power Equipment, LLC | 31...
  • Page 32 599064 CO MODULE 12.2 92270 CROSS SLOTTED HEAD SCREW M4*16 519215 FUEL CAP 511012 BATTERY 99010 SPARK PLUG WRENCH 99504 FUNNEL 511076 CHARGER 99631 OIL BOTTLE 99025 WRENCH 10 & 13 MM ENDS 32 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 33: Schematics

    SCHEMATICS SCHEMATICS SCHEMATICS Westinghouse Outdoor Power Equipment, LLC | 33...
