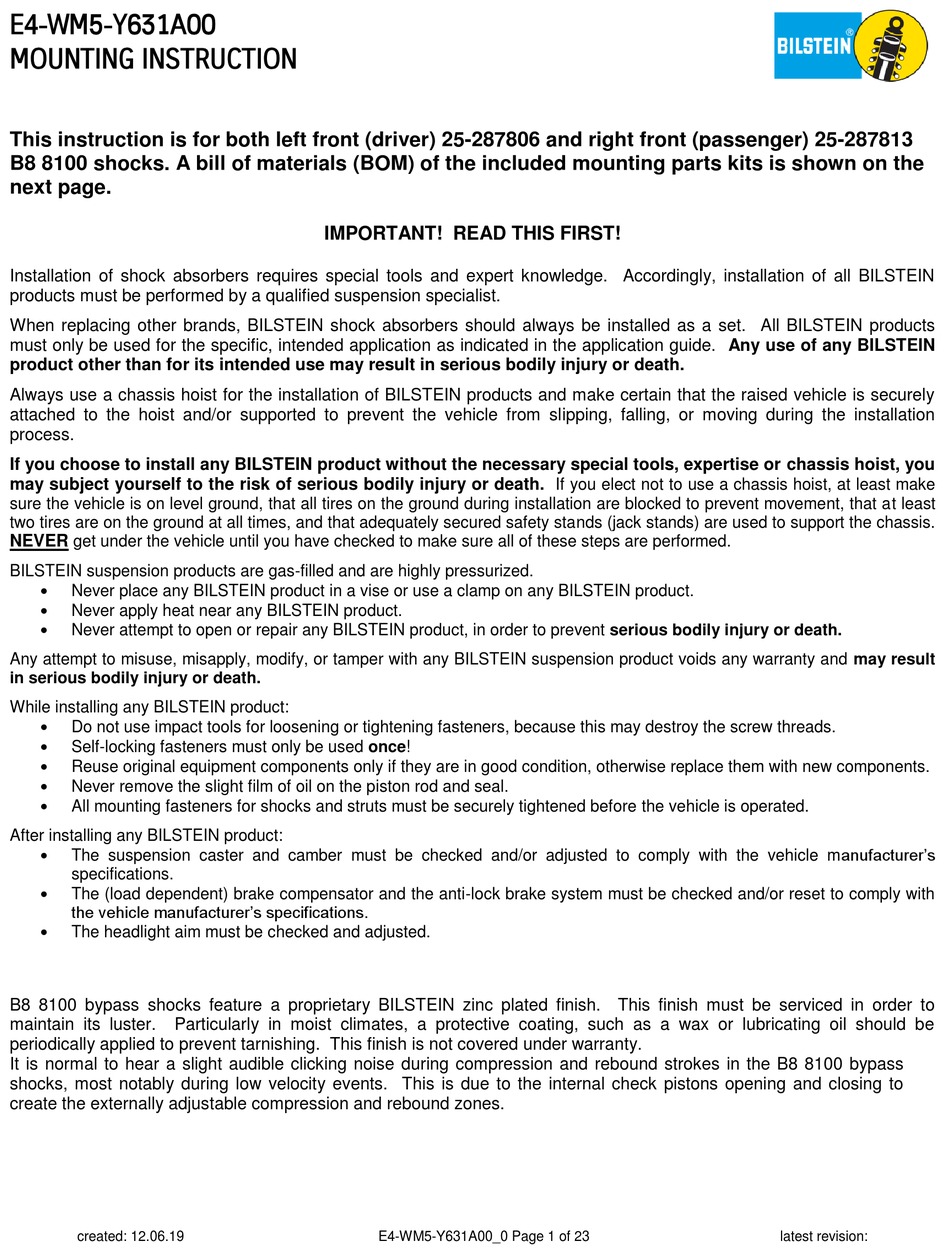

E4-WM5-Y631A00
MOUNTING INSTRUCTION
This instruction is for both left front (driver) 25-287806 and right front (passenger) 25-287813
B8 8100 shocks. A bill of materials (BOM) of the included mounting parts kits is shown on the
next page.
Installation of shock absorbers requires special tools and expert knowledge. Accordingly, installation of all BILSTEIN
products must be performed by a qualified suspension specialist.
When replacing other brands, BILSTEIN shock absorbers should always be installed as a set. All BILSTEIN products
must only be used for the specific, intended application as indicated in the application guide. Any use of any BILSTEIN
product other than for its intended use may result in serious bodily injury or death.
Always use a chassis hoist for the installation of BILSTEIN products and make certain that the raised vehicle is securely
attached to the hoist and/or supported to prevent the vehicle from slipping, falling, or moving during the installation
process.
If you choose to install any BILSTEIN product without the necessary special tools, expertise or chassis hoist, you
may subject yourself to the risk of serious bodily injury or death. If you elect not to use a chassis hoist, at least make
sure the vehicle is on level ground, that all tires on the ground during installation are blocked to prevent movement, that at least
two tires are on the ground at all times, and that adequately secured safety stands (jack stands) are used to support the chassis.
NEVER get under the vehicle until you have checked to make sure all of these steps are performed.
BILSTEIN suspension products are gas-filled and are highly pressurized.
Never place any BILSTEIN product in a vise or use a clamp on any BILSTEIN product.
Never apply heat near any BILSTEIN product.
Never attempt to open or repair any BILSTEIN product, in order to prevent serious bodily injury or death.
Any attempt to misuse, misapply, modify, or tamper with any BILSTEIN suspension product voids any warranty and may result
in serious bodily injury or death.
While installing any BILSTEIN product:
Do not use impact tools for loosening or tightening fasteners, because this may destroy the screw threads.
Self-locking fasteners must only be used once!
Reuse original equipment components only if they are in good condition, otherwise replace them with new components.
Never remove the slight film of oil on the piston rod and seal.
All mounting fasteners for shocks and struts must be securely tightened before the vehicle is operated.
After installing any BILSTEIN product:
The suspension caster and camber must be checked and/or adjusted to comply with the vehicle manufacturer's
specifications.
The (load dependent) brake compensator and the anti-lock brake system must be checked and/or reset to comply with
the vehicle manufacturer's specifications.
The headlight aim must be checked and adjusted.
B8 8100 bypass shocks feature a proprietary BILSTEIN zinc plated finish. This finish must be serviced in order to
maintain its luster.
Particularly in moist climates, a protective coating, such as a wax or lubricating oil should be
periodically applied to prevent tarnishing. This finish is not covered under warranty.
It is normal to hear a slight audible clicking noise during compression and rebound strokes in the B8 8100 bypass
shocks, most notably during low velocity events. This is due to the internal check pistons opening and closing to
create the externally adjustable compression and rebound zones.
created: 12.06.19
IMPORTANT! READ THIS FIRST!
E4-WM5-Y631A00_0 Page 1 of 23
latest revision:
