Summary of Contents for TMB ProPlex SceneSwitch 8

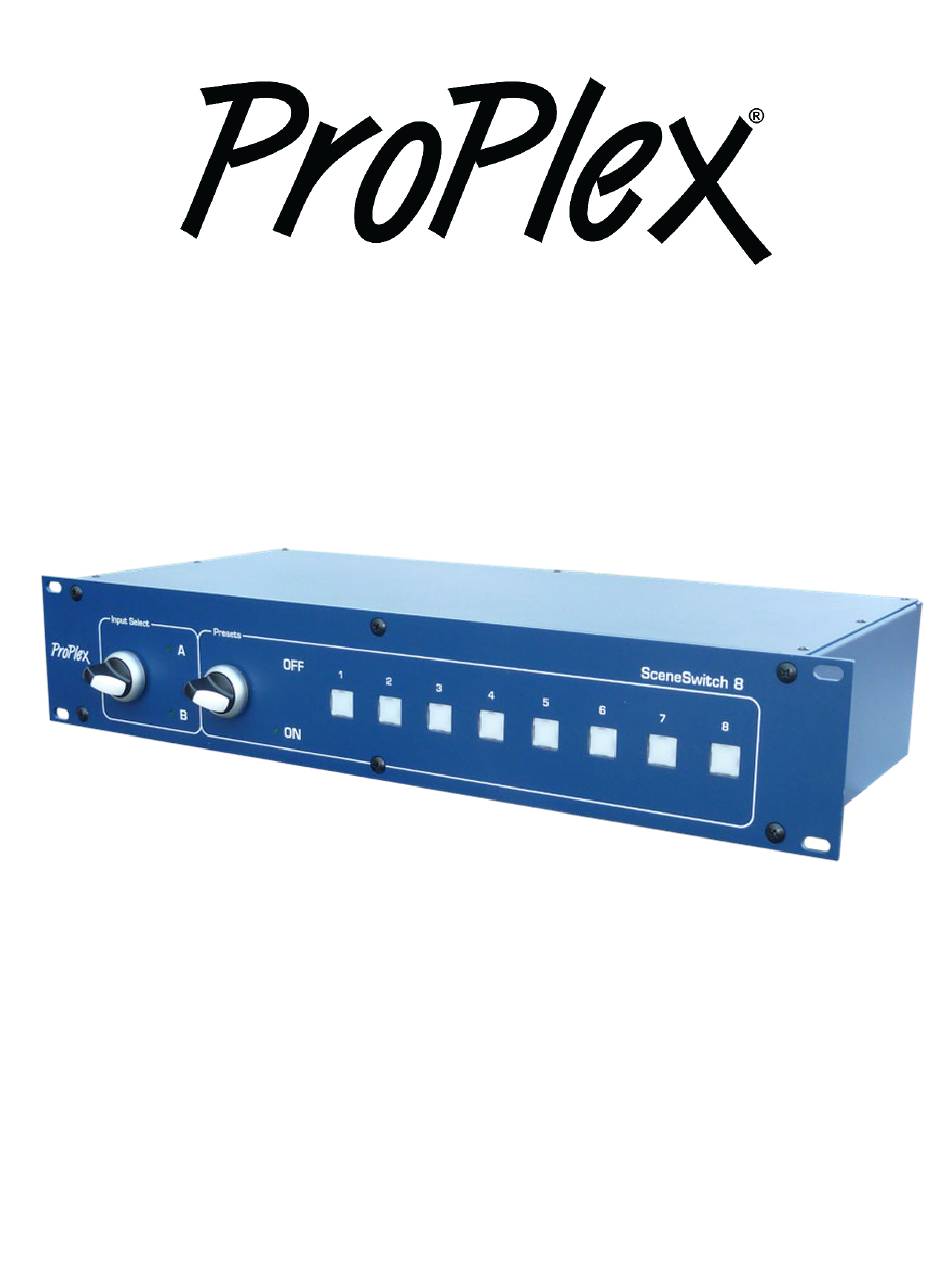

- Page 1 D A T A D I S T R I B U T I O N SceneSwitch 8 USER MANUAL...
- Page 2 Effective 11 June 2021 © Copyright 2021, TMB All rights reserved TMB authorizes its customers to download and print this electronically published manual for professional use only. TMB prohibits reproduction, modification or distribution of this document for any other purposes, without express written consent.
-
Page 3: Table Of Contents
RESETS ................................9 RASE RESETS ..........................9 TATUS NDICATOR OSITIONS B ........................9 WITCHING ETWEEN NPUTS 3. A ........................... 10 PPENDIX ................................ 10 IMITED ARRANTY ............................... 10 ETURN ROCEDURE ............................11 ECHNICAL PECIFICATIONS TMB 24/7 T ........................... 11 ECHNICAL UPPORT... -
Page 4: Introduction
100-240VAC, 50/60Hz. All units must be powered directly from a switched circuit and cannot be operated with a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0-100% switch. ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021... -
Page 5: Afety Nstructions
With a screwdriver turn the fuse cap counter-clockwise to remove fuse cap with fuse. 2. Replace fuse attached to fuse cap. 3. Reinsert fuse cap with new fuse and tighten clockwise ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021... -
Page 6: Panel Front
ANEL RONT ANEL ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021... -
Page 7: A/B Connections
NOTE: If the unit loses power, DMX input group A is automatically selected, a convenient backup solution in larger systems. NOTE: Outputs are not optically isolated. SceneSwitch 8 is not intended for use as a repeater. ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021... -
Page 8: Operation
5) When the memory is recorded the LED status indicator of the button will be illuminated at 20% intensity. NOTE: Multiple memories can be activated at the same time – they will be merged using HTP (Highest Takes Precedence) protocol. ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021... -
Page 9: Erase All Presets
To switch between A and B inputs, turn the switch to either A or B. LED indicators will activate on either A or B to indicate which input is active. NOTE: Preset switch must be turned OFF when using DMX inputs as the DMX signal source. ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021... -
Page 10: Appendix
Please send returned merchandise prepaid and in the original packing. Freight call tags will not be issued for shipping the product to TMB, but TMB will pay the freight for return to the customer. Clearly label package with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will delay service. -
Page 11: Echnical Pecifications
OCATIONS WARRANTY INFORMATION ..................2- ARRANTY YEAR LIMITED WARRANTY TMB 24/7 T ECHNICAL UPPORT US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021... - Page 12 Servicing the global market from offices in Los Angeles, London, New York, Toronto, and Beijing. ProPlex SceneSwitch 8 user manual version 1.9 11 June 2021...
