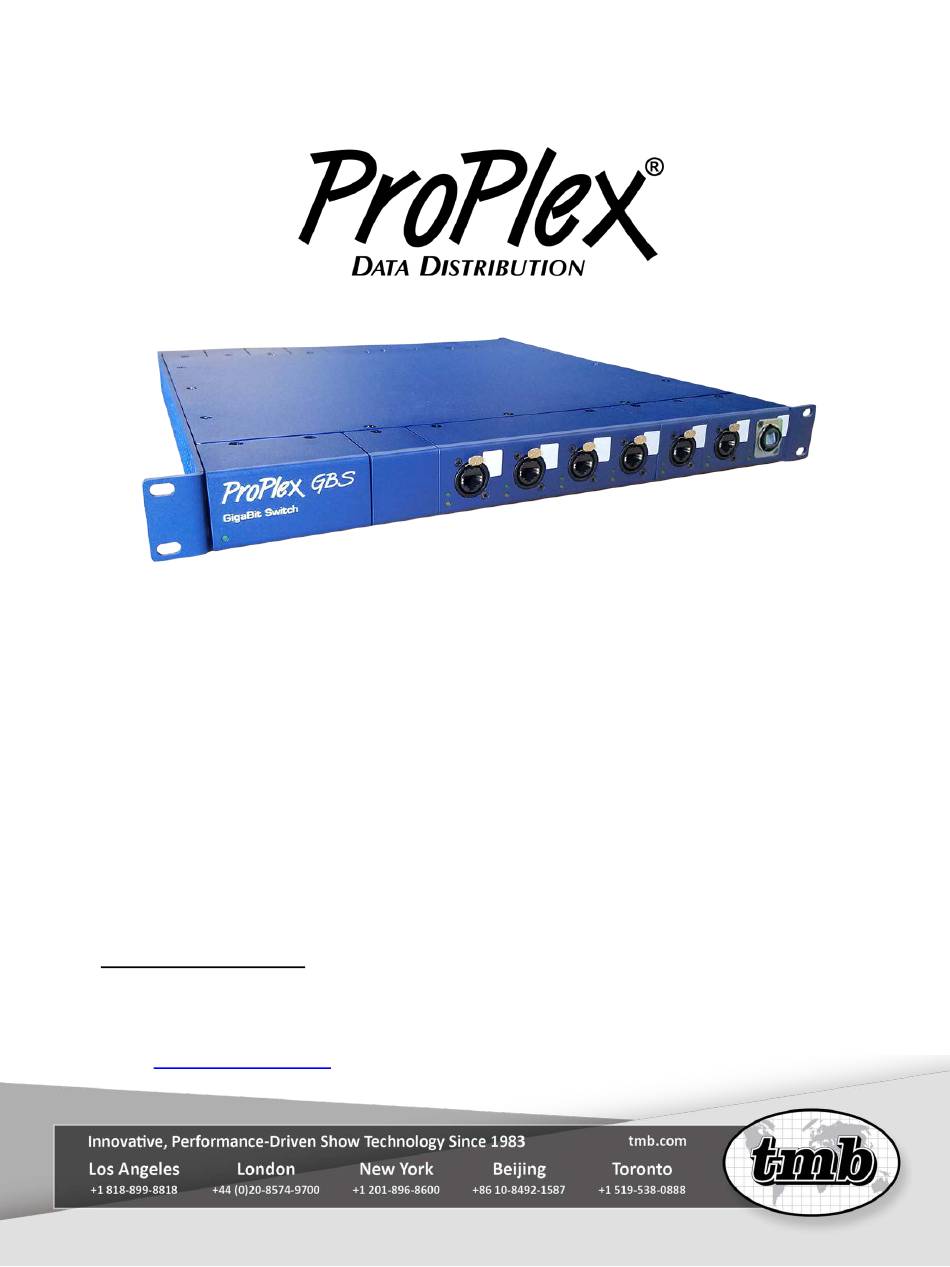

- Page 1 GBS 10-Port Gigabit Switch USER MANUAL TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. I ........................3 NTRODUCTION ............................3 RODUCT VERVIEW GBS 10-P ......................3 BOUT ..........................4 NPACKING NSTRUCTIONS ..........................4 OWER EQUIREMENTS ............................ 4 AFETY NSTRUCTIONS ............................5 EPLACEMENT ................................5 IRING ............................5 ANEL RONT LED S .............................. -
Page 3: Introduction
• ProPlex “Blue Box” RackMount, rugged tour-ready enclosure The rugged ProPlex GBS 10-port is suitable for high-volume, multicast, video, audio, or lighting data streaming with forwarding rate of 14.88 million Packets per Second (64-byte packets) and Switching Capacity of 20.0 Gigabits per Second. ProPlex GBS supports: •... -
Page 4: Npacking Nstructions
NPACKING NSTRUCTIONS Upon receipt of the unit, carefully unpack the carton and check the contents to ensure that all parts are present and in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear to be damaged from shipping or if the carton itself shows signs of mishandling. Save the carton and all packing materials. -
Page 5: Fuse Replacement
EPLACEMENT The GBS 10-port RackMount uses a 1.5A, 250V barrel fuse, 5x20mm (0.2x0.8 in.). To replace fuse: 1. With a screwdriver, turn the fuse cap counter-clockwise to remove fuse cap with fuse. 2. Replace fuse attached to fuse cap. 3. Reinsert fuse cap with new fuse and tighten clockwise. IRING Connect the 90-260 VAC (50- 60 Hz) power to the power input (PowerCON) at the back of the unit. -
Page 6: Led Status
LED S TATUS The Power LED has two states: ON and OFF • ON: Unit is receiving power • OFF: Unit is not receiving power The Link Connection LED has two states: • Glowing green: There is a link connection •... -
Page 7: Configuration
ONFIGURATION ODULE ISASSEMBLY To meet specific wiring needs of any entertainment application, it is possible to move data port modules between the front and rear of the unit in any combination, giving more freedom when creating a multicast network. Using a Phillips #2 screwdriver, remove all 12 screws from the unit’s case lid. Step 1 2. - Page 8 3. To unscrew a port housing, two Philips screws must be undone. One on the top, the other on the bottom side of the ProPlex GBS switch. Remove the screws from ports which you want to swap places. Take out the blank port housing and set it aside Step 3 4.
- Page 9 When the clips are unfastened, the connector can be disconnected from the port. To do so, push down on the RJ-45 connector clip and slide it out. To disconnect the 3-pin LED connector, pull firmly with your fingertips on both sides until the connector slides out. Step 6 from the main switch, slide it out of the unit.
-
Page 10: Connectors
ONNECTORS Each port panel is fed by a 3-pin LED connector, indicating network activity, as well as a CAT5e RJ45 or fibre jumper that connects to the EtherCon or OpticalCon QUAD connector on that panel. These cables are ® bundled together inside a TechFlex sleeve. -
Page 11: Mixed Media Ports
IXED EDIA PORTS Fig. 1 Note! Ports 9 and 10 on the GBS switch are mixed media ports and can function as ether Ethernet or Fibre Optic Ports. It is important to remember, that each port can only manage one data stream at a time. Although it is possible to physically plug both fibre and Ethernet into the mixed media ports, do not do so, because the different streams cannot operate on the same internal port. -
Page 12: Data Port Module Assembly
ODULE SSEMBLY 1. The connector must be placed in to the new location from which the blank port housing was removed making sure, that the white marking on the housing is towards the upper part of the unit and that the port housing is seated firmly. - Page 13 3. Connect the 3-pin LED connector by pressing it in firmly with fingertips at both sides of the connector. Step 3 4. Once the connectors are in, situate the cable back into the cable management system with twist-locks and cable management ties, making sure that the cable is not stressed or cramped on either end.
- Page 14 5. Insert the blank port housing into the empty slot. Step 5 6. Replace the screws on both panels, top and bottom. 7. Screw the grounding cable back to the unit if disconnected from the case lid. If not disconnected, put the case lid back onto the unit and fasten it securely.
-
Page 15: Fiber Optic Port Installation
IBER PTIC NSTALLATION If an OpticalCON QUAD connector is installed for the first time, you will need an SFP module to be inserted in the fibre optic port to connect the LC Duplex connector. ProPlex GBS 1U models that come with OpticalCON QUAD connectors as standard are equipped with a MikroTIK 1.25G SFP transceiver with a 850nm Dual LC connector, for up to 550 meter Multi Mode fibre connection, with DDM (Fig. - Page 16 3. Press the fibre cable into the SFP until the clicking sound is heard. This means that the Duplex connector is in place. 4. Connect the 3-pin LED connector by pushing it with sfingertips until it clicks into place. Note: To undo the Duplex connector, push down on the plastic clip and pull the connector out.
-
Page 17: Appendix
(2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. -
Page 18: Echnical Pecifications
GBS 10-P – T ECHNICAL PECIFICATIONS Power input 90-260VAC, 50-60Hz with PowerCON connector Operating temperature: 32° to 104° F (0°to 40°C) Number of ports Forwarding rate 14.88 Million of Packets per Second (mpps) (64-byte packets) Switching Capacity 20.0 Gigabits per Second (Gbps) IPv4 routing Up to 512 static routes and up to 128 IP interfaces Pv6 QoS...
