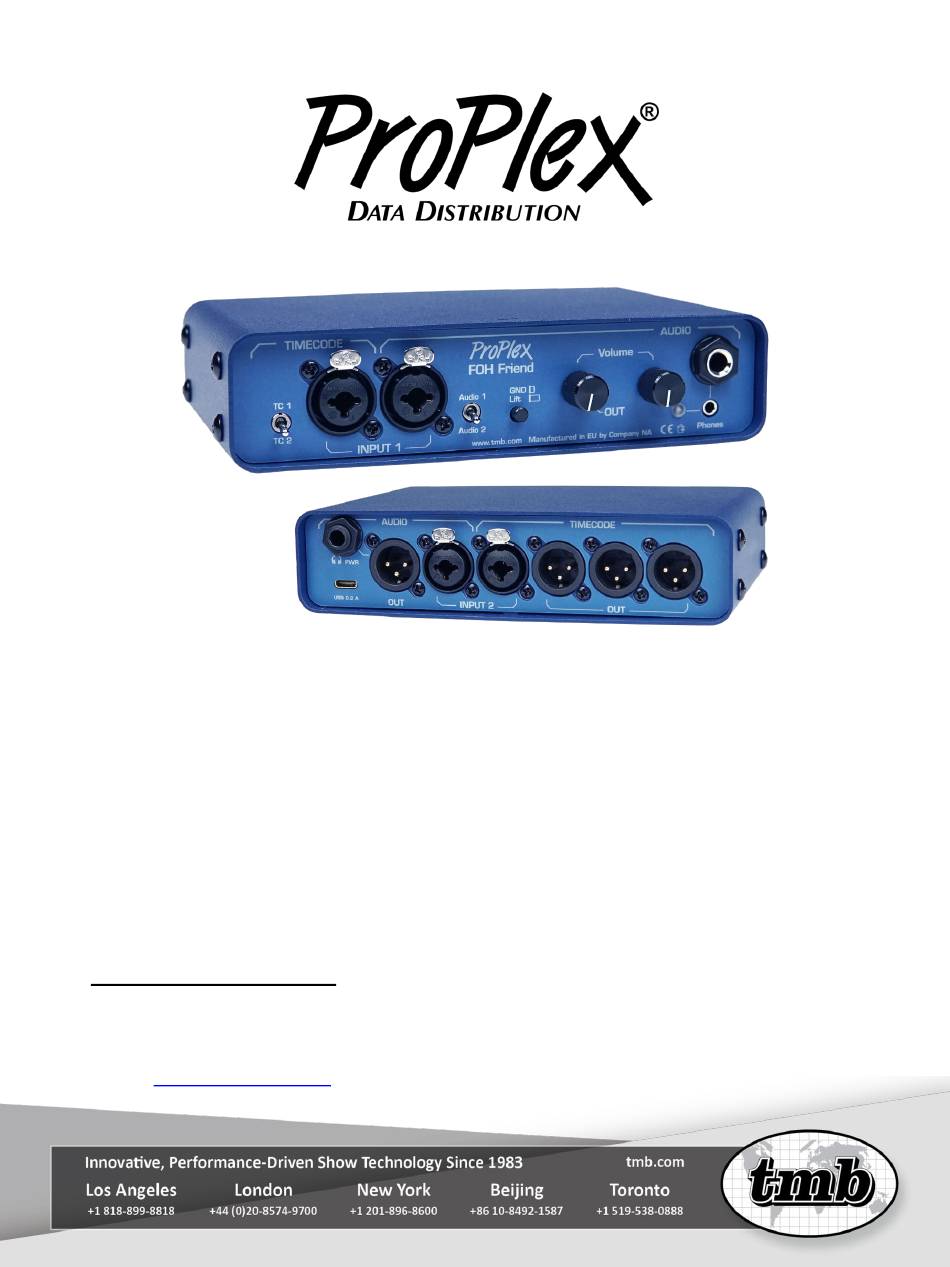

- Page 1 ™ ProPlex FOH Friend USER MANUAL MB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com - 1 -...
- Page 2 Overview The ProPlex FOH Friend is a timecode/audio switching device, allowing programmers to instantly switch between two timecode and two audio track sources. With all the outputs and controls needed for timecode and audio, the FOH Friend allows the programmer to make use of every minute of valuable programming time.
- Page 3 System Diagram - 3 -...
- Page 4 (2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods.
- Page 5 Specifications Part Number PPFOHF743M DC Power 5 VDC only for headphone amplifier Power Consumption 0.1 A Cooling Passive Power Connectors USB-C Timecode Input Connectors 2x Neutrik XLR female with combination 1/4” TRS Audio Input Connectoers 2x Neutrik XLR female with combination 1/4” TRS Timecode Output Connectors 3x Neutrik XLR Male with 600 Ohm transformers Audio Output Connectors...
- Page 6 RackMount Kit - 6 -...
