- Page 1 ProPlex GBS 5-Port Ethernet Switch Quick Start Guide TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 v.1.0 rev 070819 e-mail: techsupport@tmb.com...

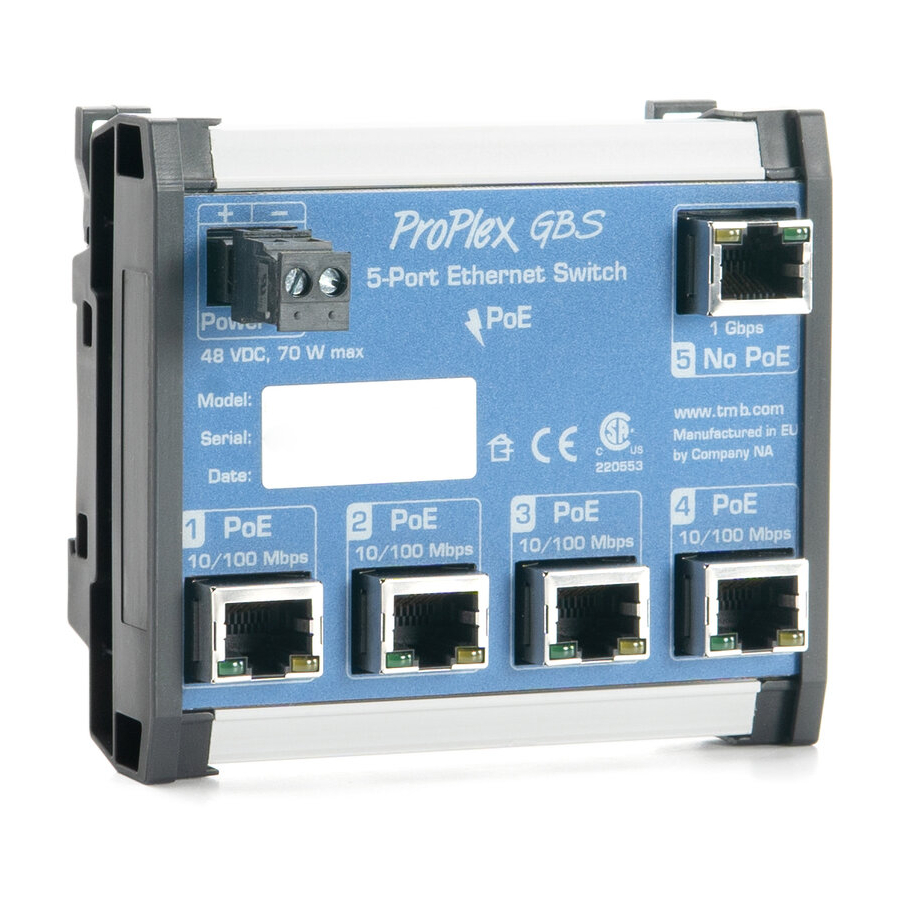

- Page 2 Introduction The ProPlex GBS 5-Port Ethernet Switch is an unmanaged switch with four 10/100 Mbps ports and one 1Gbps port. The 10/100Mbps ports include PoE functionality (IEEE 802.3af compliant). Suitable for multicast, video, audio, or lighting, just a few key features include: •...
- Page 3 Dimensions Dimensions in inches (mm)
- Page 4 Overview Setup ProPlex DIN Rail devices use a standard Phoenix MSTB screw terminal connector in various pin configurations. Please refer to the wiring diagrams below for correct hook up of your ProPlex DIN Rail product. 1. Connect the 48 VDC power to the power input located in top left corner. The connector should be wired as depicted in the image below.
- Page 5 LED status information The Power LED has two states: ON and OFF. • ON: Unit is receiving power • OFF: Unit is not receiving power Link LED has 2 statuses: ON and OFF If the LED is lit, then the link is connected. If the LED is off, then the link is not connected.
