Summary of Contents for TMB ProPlex GBS

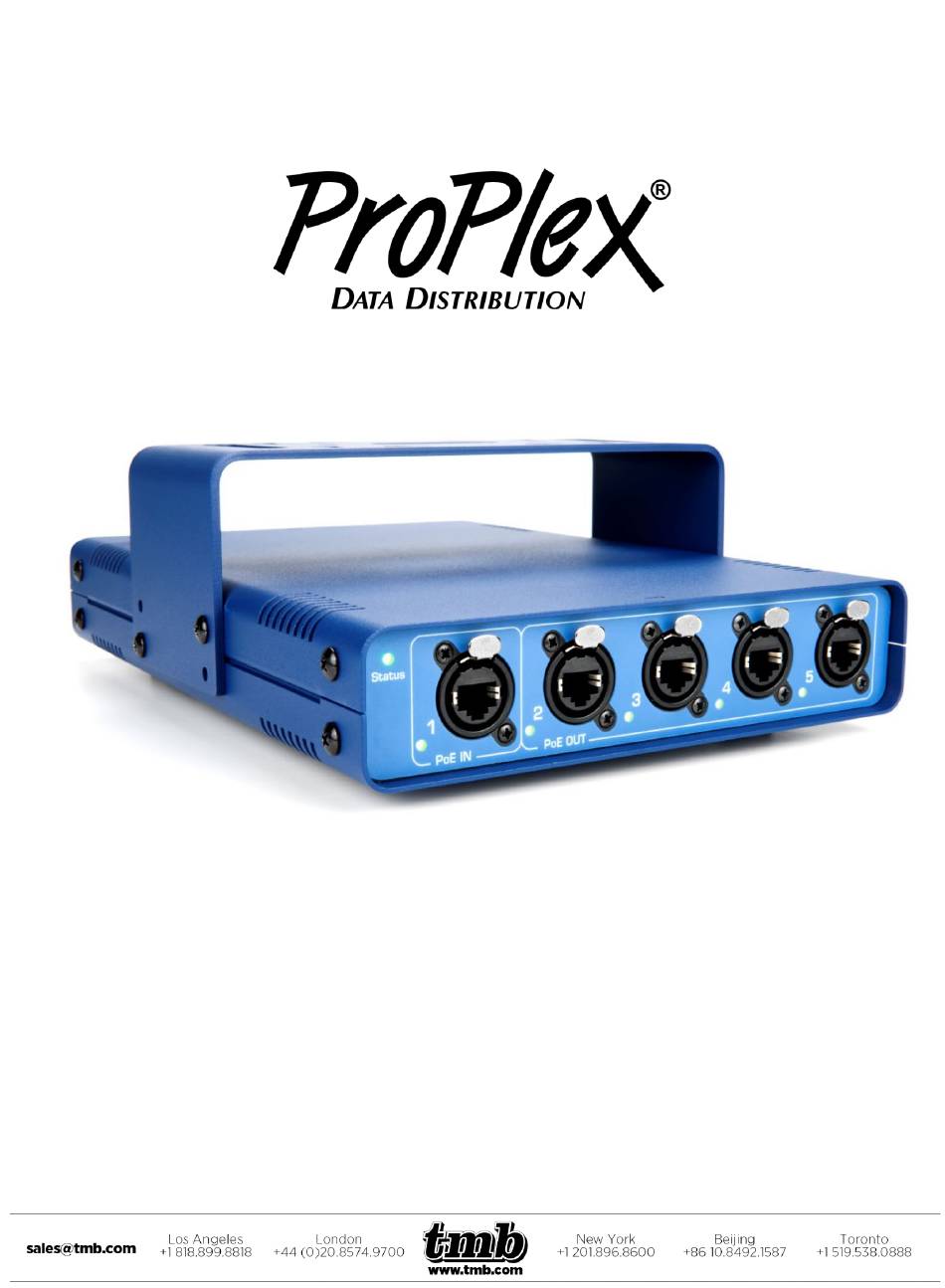

- Page 1 GBS MINI PoE User Manual...
- Page 2 - 2 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021...
-
Page 3: Table Of Contents
Network Status ..................................17 PoE Status .................................... 18 VLANs ....................................19 Firmware Upgrade ................................19 LED I ..................................20 NDICATORS TECHNICAL SPECIFICATION ..............................21 RETURN PROCEDURE ................................22 - 3 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 4: Limited Warranty
(2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. -
Page 5: Product Overview

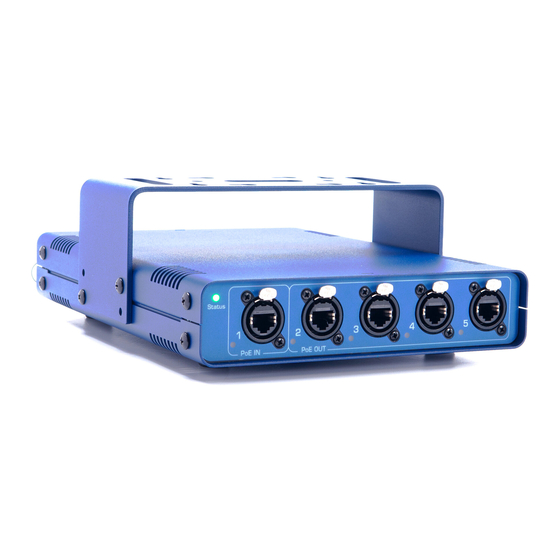

PRODUCT OVERVIEW ProPlex GBS Gigabit Ethernet switches are designed for portable entertainment production and are part of the ProPlex Data Distribution range of products for complete show data management. Features include: • Powerful, rugged, compact switches suitable for high volume, multicast, real-time show data •... - Page 6 INGLE IBRE - 6 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021...
- Page 7 IBRE - 7 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021...
- Page 8 IMENSIONS - 8 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021...
-
Page 9: Setup
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your distributor. - 9 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 10: Rigging Pro Plex Enclosures
Always use safety cables! • When selecting installation location, consider routine maintenance. • Never mount Mini enclosure where it will be exposed to moisture, high humidity, extreme temperatures, or restricted ventilation. - 10 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 11: Rack Mount Kits
To fasten the rack ears or joiners to the ProPlex PortableMount chassis, remove the two chassis screws on each side at the front or rear of the chassis. These same screws are used to securely fasten the RackMount ears and joiners to the chassis. - 11 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 12: Installing The Dual Joiners
Each link piece is identical. Simply rotate the joining link and line up the installation holes to install on either the left or right side of the corresponding unit. - 12 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 13: Mounting In The Rack
Single or Dual Mounting configurations. OUNT RDERING ODES When ordering ProPlex RackMount Kits, Single or Dual, be sure and specify “Medium” for the ProPlex GBS Mini PoE. • PP1RMKITMS - ProPlex 1U RackMount Kit, Medium, Single •... -
Page 14: Operation
The right side of the screen displays information from the currently chosen menu and will change depending on the menu selection. - 14 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 15: Status
EASY IP – When EASY IP is set to ON, the GBS Mini PoE will search all masks, instead of just the current IP range. EASY IP is enabled with a dropdown menu. - 15 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 16: Node Setup
UPLOAD CONFIG FILE – Browse your computer for a previously saved file location. Once uploaded, the settings will automatically apply to the unit, at which point you will have the option of recording into the internal user configuration memory. - 16 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 17: Network Status
DROPPED TX PACKETS – Packets dropped while transmitting data TX SPEED – Speed of data transmission, measured in Mbps RX SPEED – Speed of data receiving, measured in Mbps - 17 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 18: Poe Status
POWER CLASS – Displays the PoE power class of connected equipment. DETECTION STATUS – Status of PoE detection. When no PoE devices are connected, detection status will be SEARCHING. - 18 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 19: Vlans
Select CHOOSE FILE and select the firmware file from your computer. Select the UPGRADE in the bottom right corner of the screen and wait for the update to finish. - 19 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 20: Led Indicators
LED I NDICATORS - 20 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 21: Technical Specification
8 x 1.72 x 10.72 in [205 x 43.7 x 272.3 mm] w/o yoke Shipping Dimensions (WxHxD) 11.8 x 4.2 x 9.4 in [300 x 106 x 240 mm] Unit Weight 5.6 lbs [2.54 kg] Shipping Weight 6.2 lbs [2.80 kg] - 21 - ProPlex GBS Mini PoE User Manual v1.0 - 03292021... -
Page 22: Return Procedure
Please send returned merchandise prepaid and in the original packing. Freight call tags will not be issued for shipping the product to TMB, but TMB will pay the freight for return to the customer. Clearly label package with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will delay service. - Page 23 CONTACT INFORMATION LOS ANGELES HEADQUARTERS 527 Park Avenue | San Fernando, CA 91340, USA Tel: +1 818.899.8818 | Fax: +1 818.899.8813 sales@tmb.com TMB 24/7 TECH SUPPORT US/Canada: +1.818.794.1286 Toll Free: 1.877.862.3833 (1.877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 techsupport@tmb.com LOS ANGELES +1 818.899.8818 LONDON +44 (0)20.8574.9700...
