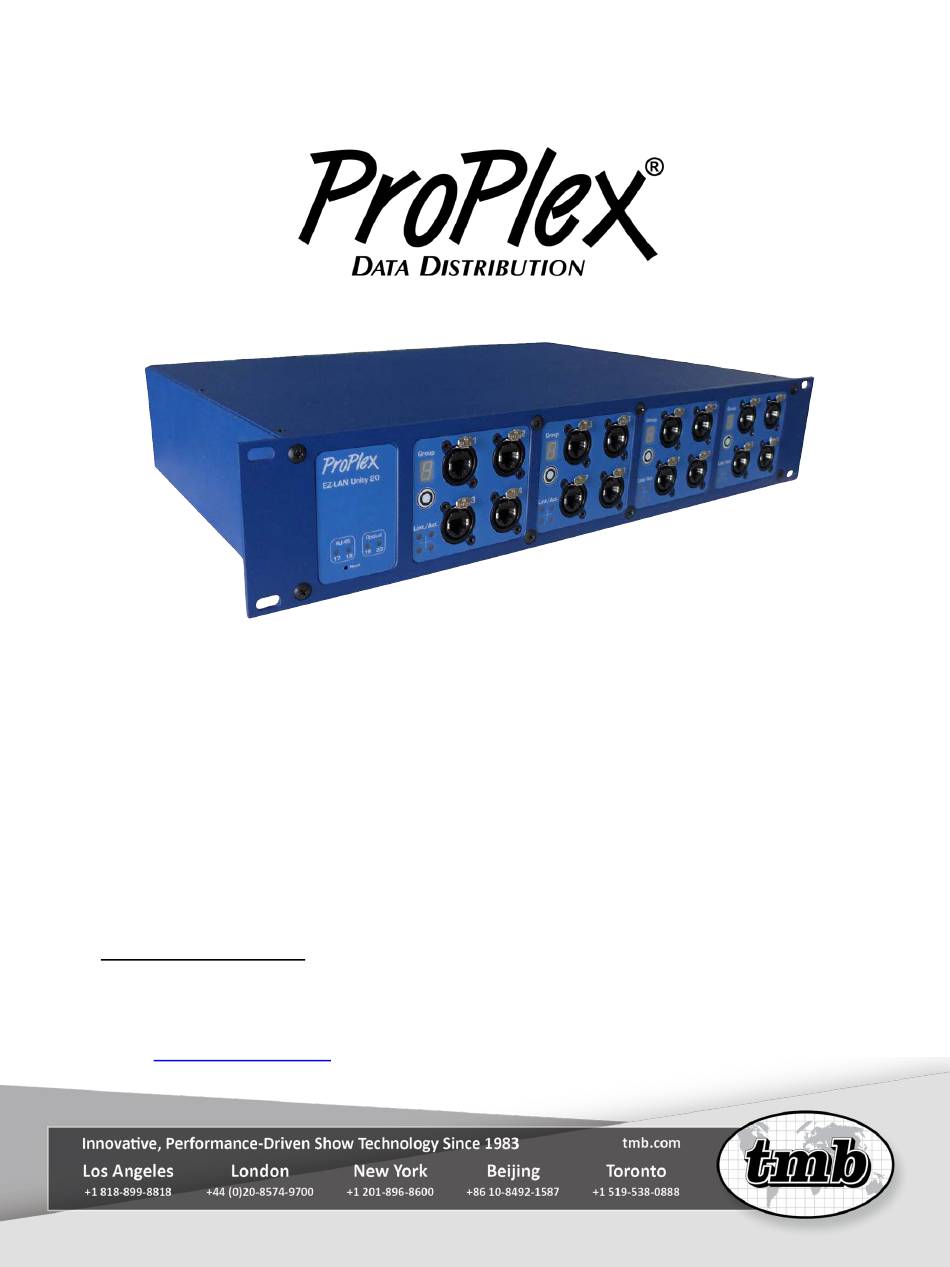

- Page 1 EZ-LAN Unity 20 USER MANUAL TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. I ........................3 NTRODUCTION ............................3 RODUCT VERVIEW ..........................3 NPACKING NSTRUCTIONS ..........................3 OWER EQUIREMENTS ............................ 3 AFETY NSTRUCTIONS ............................4 EPLACEMENT ..............................4 ANEL RONT ..............................4 ANEL ............................5 ETWORK XAMPLES 2. O ........................ -
Page 3: Introduction
1. Introduction RODUCT VERVIEW EZ-LAN makes today’s complex show networking easier and accessible for everyone. These simple to operate yet powerful Gigabit Ethernet switches distribute up to four discrete networks quickly, effortlessly, and simultaneously. Users untrained in the complexities of managed networking can easily isolate networks and access and change VLAN assignments with a single button press. -
Page 4: Fuse Replacement
• Do not connect the device to a dimmer pack. • Make sure power cord is never crimped or damaged. • Never disconnect power cord by pulling or tugging on the cord. EPLACEMENT The EZ-LAN uses a 1.0A, 250V barrel fuse, 5x20mm (0.2x0.8 in.). To replace fuse: 1. -
Page 5: Network Examples
ETWORK XAMPLES (diagram continued next page) EZ-LAN Unity 20 user manual version 3.3.3 120919 - 5 -... - Page 6 EZ-LAN Unity 20 user manual version 3.3.3 120919 - 6 -...
-
Page 7: Operation
2. Operation ONFIGURATION Types of Groups: Trunk Ports: The Fibre and Ethernet ports on the rear of the EZ-LAN are always connected to "Trunk" groups. Trunk ports are used to connect multiple EZ-LANs together to move the VLANs from EZ-LAN to EZ- LAN. -
Page 8: Hardware Information
To change the VLAN group assignment, hold the Group Select button for few seconds to unlock the group. The display will begin flashing. Then press the button to cycle trough all available groups. After the desired group is selected, wait for a few seconds for this new group to be saved and for the switch to internally reconfigure the port group. -
Page 9: Mounting
Depending on the rail-to-rail depth of the rack, the Rear RackMount Kit bracket/ear assemblies can be optimized as needed. The rear Side Bracket attaches to the enclosure, with the option of two positions, both using four screws (hardware included). Never use less than four screws per side when attaching the bracket to the EZ-LAN chassis. -
Page 10: Appendix
(2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. -
Page 11: Technical Specifications
TMB 24/7 T ECHNICAL UPPORT US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com EZ-LAN U 20 – Technical Specifications NITY WEIGHT & DIMENSIONS ......................19 / 483 IDTH ......................12 / 305 EPTH ......................
