- Page 1 626 TURRET MILL OPERATION MANUAL Chester Machine Tools Hawarden Industrial Park, Hawarden, Chester, CH5 3PZ. Tel: 01244 531631 Fax: 01244 531331 Email:sales@chestermachinetools.com Website: www.chestermachinetools.com...
- Page 2 Page | 2...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction 2. Health & Safety 4 –5 3. Machine Specification 4. Main Applications & Features 5. Wiring Diagram 6. Part Diagrams 10-11 7. Part List 12-13 8. Inspection Record 9. CE Certificate Page | 3... -
Page 4: Introduction
Chester UK Limited is a specialist company that has been supplying the machine tool industry for over 15 years. The Chester UK Head Office comprises of a 30,500 sq.ft factory complete with offices and a showroom. Specialising in conventional machine tools, Chester has built a reputation for quality and reliability, which is highly regarded in the machine tool industry and the model engineering market. -
Page 5: Health & Safety
Chester UK. The lathe may not arrive with a power socket or plug. In the event of this happening, please inform Chester UK on Tel: (01244) 531 631. Safety rules for all tools User 1. - Page 6 Keep tools sharp and clean for the best and safest performance. Follow instructions for lubricating and changing accessories. Use recommended accessories Consult Chester UK for recommended accessories. The use of improper accessories may cause hazards. Avoid accidental starting Make sure the switch is in the ‘OFF’ position before plugging in power cord.
-
Page 7: Machine Specification
Safety Device Interlock switch on pulley cover. As soon as the pulley cover is open, the machine will come to a stop with the function of this switch. Do not remove this switch from the machine for any reason, and check it’s function frequently. Interlock switch on cutting area. -
Page 8: Features

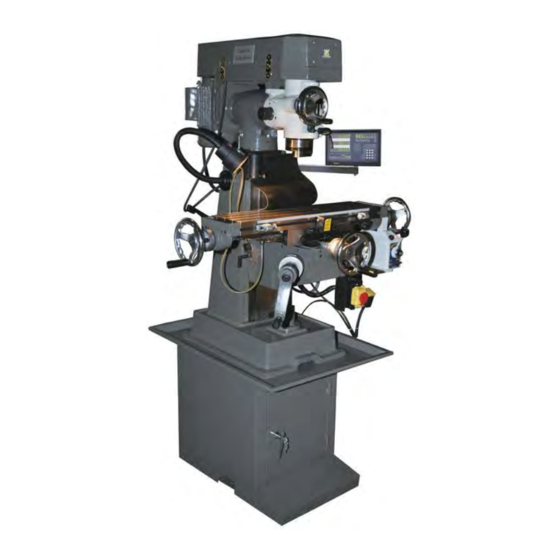

FEATURES AND MAIN APPLICATIONS Features The 626-turret mill is a compact vertical milling machine, easy to set up, with controls designed for easier operation (dual hand wheels). A practical machine that can be easily used for technical schools, small parts production, tool rooms, R&D work, maintenance shops and even hobby use. - Page 9 Levelling Set the machine by levelling the worktable lengthwise & crosswise, with a precision levelling instrument (refer to the test readings in the attached test records). Inspection Inspect the machine with the attached original testing records for reference. Switch box The switch box is located on left side of the column, for the On –...
- Page 10 Then the table can be disassembled quite easily. Mounting the motor & shifting the belts for speed The motor is mounted on a plate hinged to the pulley housing. Release the belt setting unit by turning the handle at the side of the motor, and then shift the belts to the required speed. Retighten and use.
-
Page 11: Wiring Diagram
WIRING DIAGRAM Page | 11... -
Page 12: Part Diagrams
PART DIAGRAMS Page | 12... - Page 13 Page | 13...
- Page 14 PARTS LIST S/N P/N DESCRIPTION S/N P/N DESCRIPTION 1. 250-S-IYT-1001 Vertical milling head 39. 250-S-IYT-M5x10 Screw 2. 250-S-IYT-1095 Belt housing cover 40. 250-S-IYT-T1089 Pulley cover supporting arm 3. 250-S-IYT-1005 Quill 41. 250-S-IYT-M5 Nut 4. 250-S-IYT-S-45-1010 Snap ring 42. 250-S-IYT-1016 Washer for bearing 5.
- Page 15 S/N P/N DESCRIPTION S/N P/N DESCRIPTION 77. 250-S-IYT-2059 Adjusting screw 115. 250-S-IYT-2089 Switch 78. 250-S-IYT-2082 Longitudinal bearing 116. 250-S-IYT-“x2”-2002 Bolt bracket 117. 250-S-IYT-2097 Light 79. 250-S-IYT-2079 Longitudinal lead screw 118. 250-S-IYT-2069 Rubber sheet 80. 250-S-IYT-2084 Nut for bearing 119. 250-S-IYT-6Mx25 Bolt 81.
- Page 16 CONTACT DETAILS Head Office & Showroom Address: Hawarden Industrial Park, Hawarden, Chester, CH5 3PZ Tel national: 01244 531631 Tel International: +44 1244 531631 Fax National: 01244 531331 Fax International: +44 1244 531331 Midlands Factory & Showroom Address: Unit 4 Plant Lane Business Park,...
