Summary of Contents for Buhler Swath Roller FK358
-
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION Warranty ... 1 Introduction... 2 SAFETY... 3 Safety... 3 General Safety ... 3 Start Up Safety... 3 Operation Safety ... 3 Transport Safety... 3 Service & Maintenance Safety ... 4 Storage Safety ... 4 Safety Signs ... 4 Safety Sign Installation... -
Page 4: Warranty
Swath Roller WARRANTY POLICY Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for commercial application) from original date of purchase, by original purchaser, to be free from defects in material and workmanship under correct, normal agricultural use and proper applications. -
Page 5: Introduction

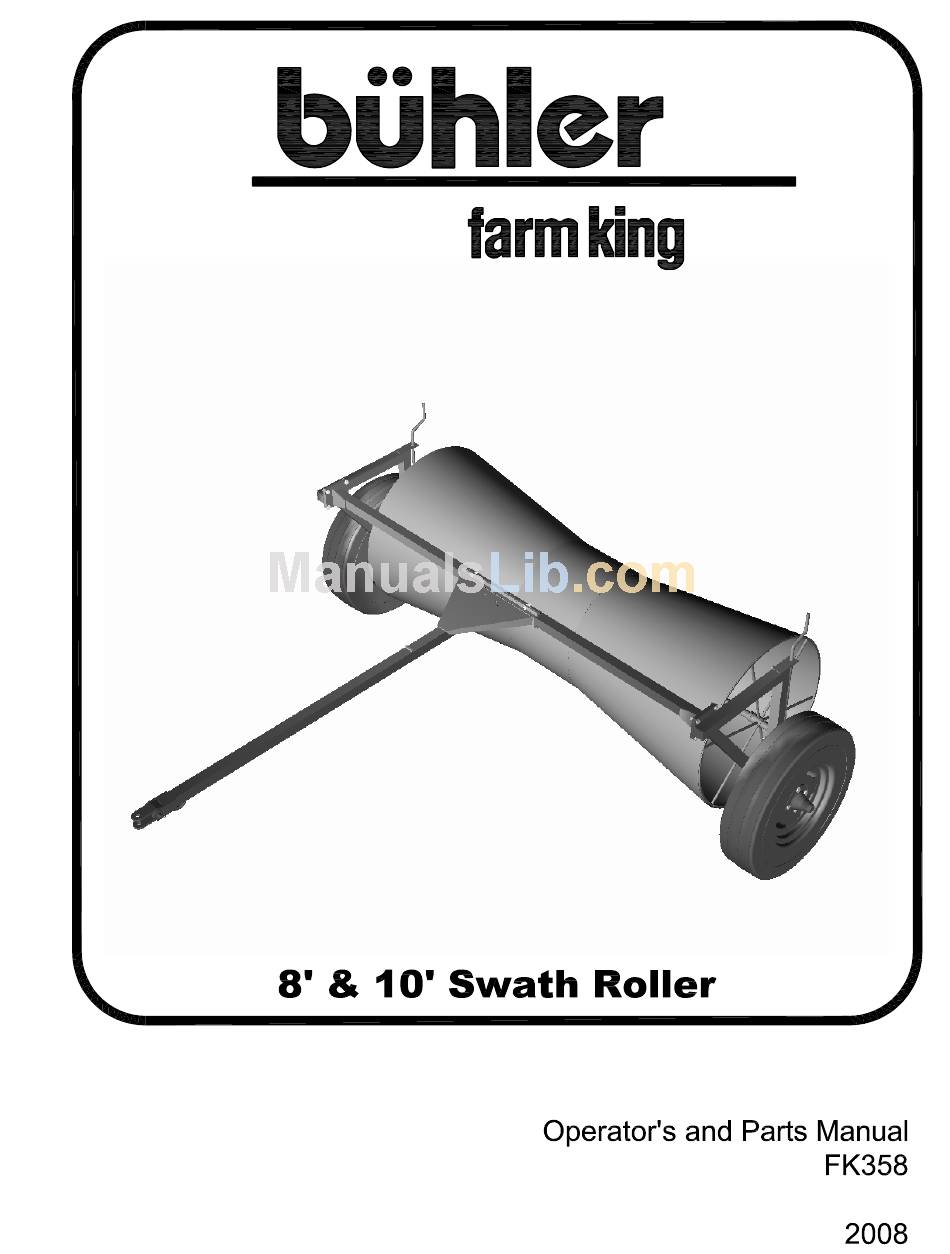

Buhler Farm King brings you this all-steel swath roller in eight and ten food models. Compress your canola and flax swath to prevent crop loss by wind scattering. Ground clearance is easily adjusted with a crank at both ends. Hook Hook up to your swather with the swivel hitch…and take your mind off the wind. -
Page 6: Safety
Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting, repairing, or unplugging the equipment. Do not attempt any unauthorized modifications to your Buhler product as this could affect function or safety, and could affect the life of the equipment. -
Page 7: Service & Maintenance Safety
SERVICE AND MAINTENANCE SAFETY Stop engine, set brake, remove ignition key, and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. Support the equipment with blocks or safety stands before working beneath it. Follow good shop practices including: keep service area clean and dry be sure electrical outlets and tools are properly grounded use adequate light for the job... - Page 8 Swath Roller SWATH ROLLER...
-
Page 9: Assembly
Center the drum shaft (#2) in the drum (#1) and tighten in place using the set screws supplied in the hubs at the ends of the drum. Slide the right and left side frames (#7) and (#8) onto the drum shaft with the side frames turned as shown in drawing. -
Page 10: Maintenance
Swath Roller MAINTENANCE... -
Page 11: 8' Swath Roller Drawing
Swath Roller 8’ SWATH ROLLER... -
Page 12: 8' Swath Roller Parts List
WHEN ORDERING PARTS Always give your dealer the Model, Color and Serial Number of your machine to assist him in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part. ITEM PART # DESCRIPTION F6500... - Page 13 34 84050 3/4" S.A.E. Flat Washer (pl) 35 9812433 3/16" x 1 1/2" Cotter Pin (pl) 36 812026 5/16" x 1" Hex Bolt (pl) 37 81568 5/16" Hex Nut (pl) 38 81569 5/16" Lock Washer (pl) 39 81598 7/16" x 1 1/4" Hex Bolt (pl) 40 967900 1/4"...
-
Page 14: 10' Swath Roller Drawing & Parts List
10’ SWATH ROLLER 10' SWATH ROLLER ITEM PART # F6551 967577 967589 909959 967504 967505 901146 901147 967508 961792 DESCRIPTION Drum Weldment Drum Shaft Weldment Cross-Brace Hitch Weldment Hitch Clamp Crank Right Side Frame Left Side Frame Slider Bracket 1" Pillow Bearing Swath Roller... - Page 15 81599 7/16" x 1 1/2" Hex Bolt (pl) 981616 7/16" BS Flat Washer (pl) 81615 7/16" Lock Washer (pl) 81614 7/16" Hex Nut (pl) 812338 7/16" x 3" Hex Bolt (pl) 86273 7/16" Lock Nut (pl) 961891 Oil Seal (SE11) 967712 Inner Bearing Cone (LM67048) 967711...
-
Page 16: Shipping Kit And Bundle Numbers
SHIPPING KIT AND BUNDLE NUMBERS The following is a list of Kit Numbers for this product and the Bundle Numbers, Descriptions, and Quantities for each Kit. QUANTITY BUNDLE NO. C800SR 8’ SWATH ROLLER: F6500 F0897 F0924 F7110 F0926 C1000SR 10’ SWATH ROLLER: F6551 F0925 F0899... - Page 17 NOTES...
- Page 18 NOTES...
- Page 20 (604) 864-2665 AB, Edmonton (780) 962-6991 SK, Regina (306) 781-2300 ON, Woodstock (519) 539-0435 QC, Dorion (450) 455-4840 Buhler Manufacturing 301 Mountain Street S. Morden MB. R6M 1X7 Ph.: (204) 822-4467 Fax: (204) 822-6348 www.buhler.com U.S. WAREHOUSES AR, West Memphis...
