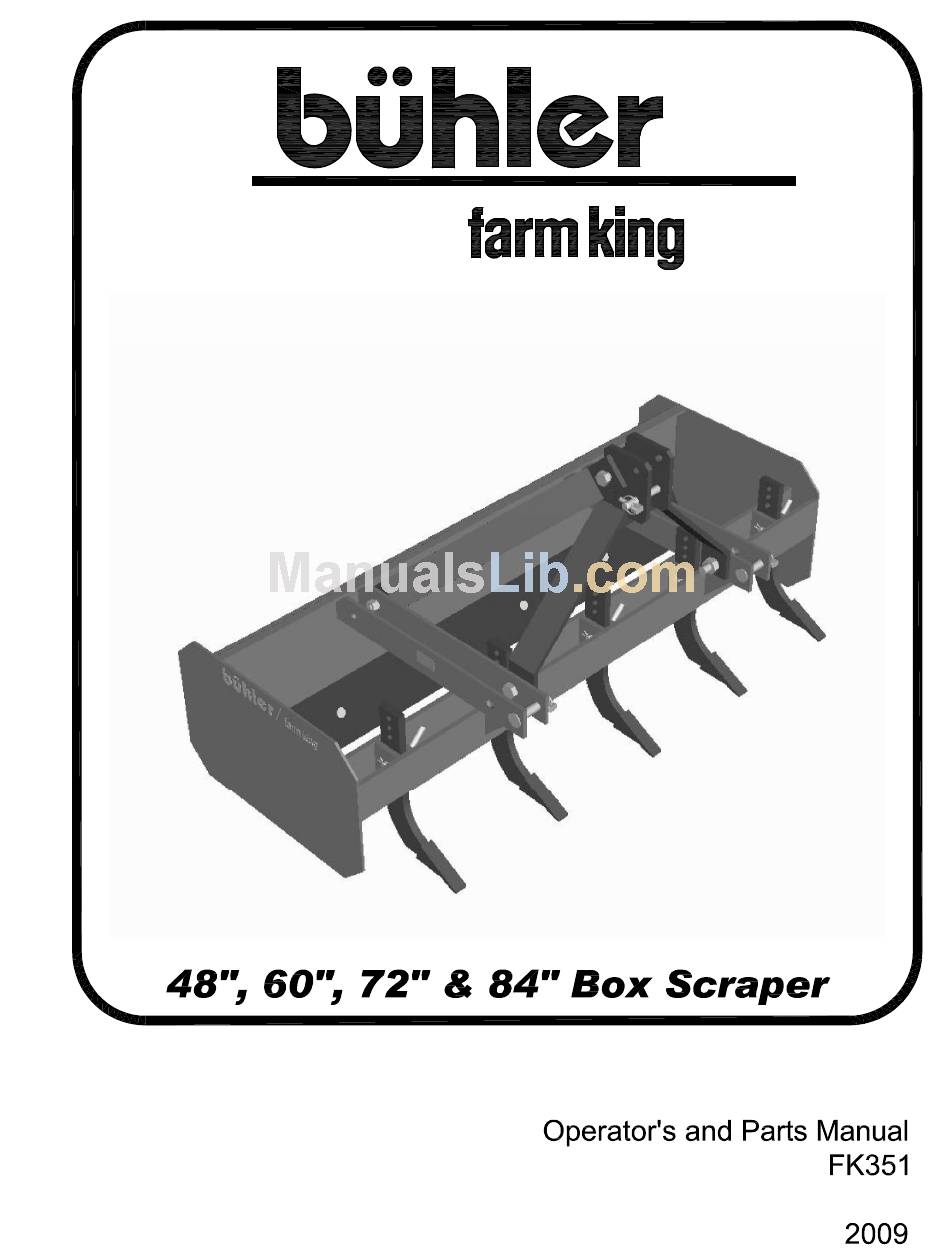

Buhler Box Scraper FK351 Operator's & Parts Manual

48/60/72/84" box scraper

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Box Scraper FK351 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Buhler Box Scraper FK351

  • Page 3: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION WARRANTY... 1 INTRODUCTION ... 2 SAFETY... 3 Safety ... 3 General Safety ... 4 Start-up Safety ... 4 Operation Safety ... 4 Transport Safety ... 4 Service and Maintenance Safety... 5 Storage Safety... 5 Safety Signs ... 5 Safety Sign Installation ...
  • Page 4: Warranty

    Box Scraper WARRANTY POLICY Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for commercial application) from original date of purchase, by original purchaser, to be free from defects in material and workmanship under correct, normal agricultural use and proper applications.
  • Page 5: Introduction

    Box Scraper INTRODUCTION The Buhler Farm King Box Scraper features two ½” x 6” replaceable, back-to-back blades to make this a bi-directional scraper. The scarifier shanks are heat treated and are easily adjusted for depth. The Box Scraper is available in 5’, 6’ & 7’ models. This product is Quick Hitch compatible.
  • Page 6: Safety

    Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with the recommended operating and maintenance procedures and follows all the safety precautions.
  • Page 7: General Safety

    Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting, repairing, or unplugging the equipment. Do not attempt any unauthorized modifications to your Buhler product as this could affect function or safety, and could affect the life of the equipment.
  • Page 8: Service And Maintenance Safety

    SERVICE AND MAINTENANCE SAFETY Stop engine, set brake, remove ignition key, and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. Support the equipment with blocks or safety stands before working beneath it. Follow good shop practices including: keep service area clean and dry be sure electrical outlets and tools are properly grounded use adequate light for the job...
  • Page 9: Assembly

    Bolt the hitch (#2) and hitch braces (#3) to the frame (#1) using hardware supplied. Use the position or draft mode on the three-point control to make a cut at constant depth. Use float when you want the scraper to follow the contour of the ground.
  • Page 10: Maintenance

    Raise the Box Scraper off the ground. Securely block up the frame. Remove blade mounting bolts. If the top side of the blade has not been used, reverse and reattach. If it has been used, replace blade. Install mounting bolts and re-tighten. MAINTENANCE Box Scraper...
  • Page 11: Parts Drawings

    Box Scraper...
  • Page 12: Box Scraper Parts List

    WHEN ORDERING PARTS Always give your dealer the Model, Color and Serial Number of your machine to assist him in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part. ITEM PART # 909628...
  • Page 13: Shipping Kit And Bundle Numbers

    SHIPPING KIT AND BUNDLE NUMBERS The following is a list of Kit Numbers for this product and the Bundle Numbers, Descriptions, and Quantities for each Kit. QUANTITY BUNDLE NO. Y48BS 48” BOX SCRAPER F0351 F0801 Y60BS 60” BOX SCRAPER F0351 F0368 Y72BS 72”...
  • Page 14 NOTES...
  • Page 16 (604) 864-2665 AB, Edmonton (780) 962-6991 SK, Regina (306) 781-2300 ON, Woodstock (519) 539-0435 QC, Dorion (450) 455-4840 Buhler Manufacturing 301 Mountain Street S. Morden MB. R6M 1X7 Ph.: (204) 822-4467 Fax: (204) 822-6348 www.buhler.com U.S. WAREHOUSES AR, West Memphis...

This manual is also suitable for:

Farm king fk351
