frame
Pin for
locking
Heruntergeladen von
manualslib.de
www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58
Lower locking lever to
adjust the position
Handbücher-Suchmachiene

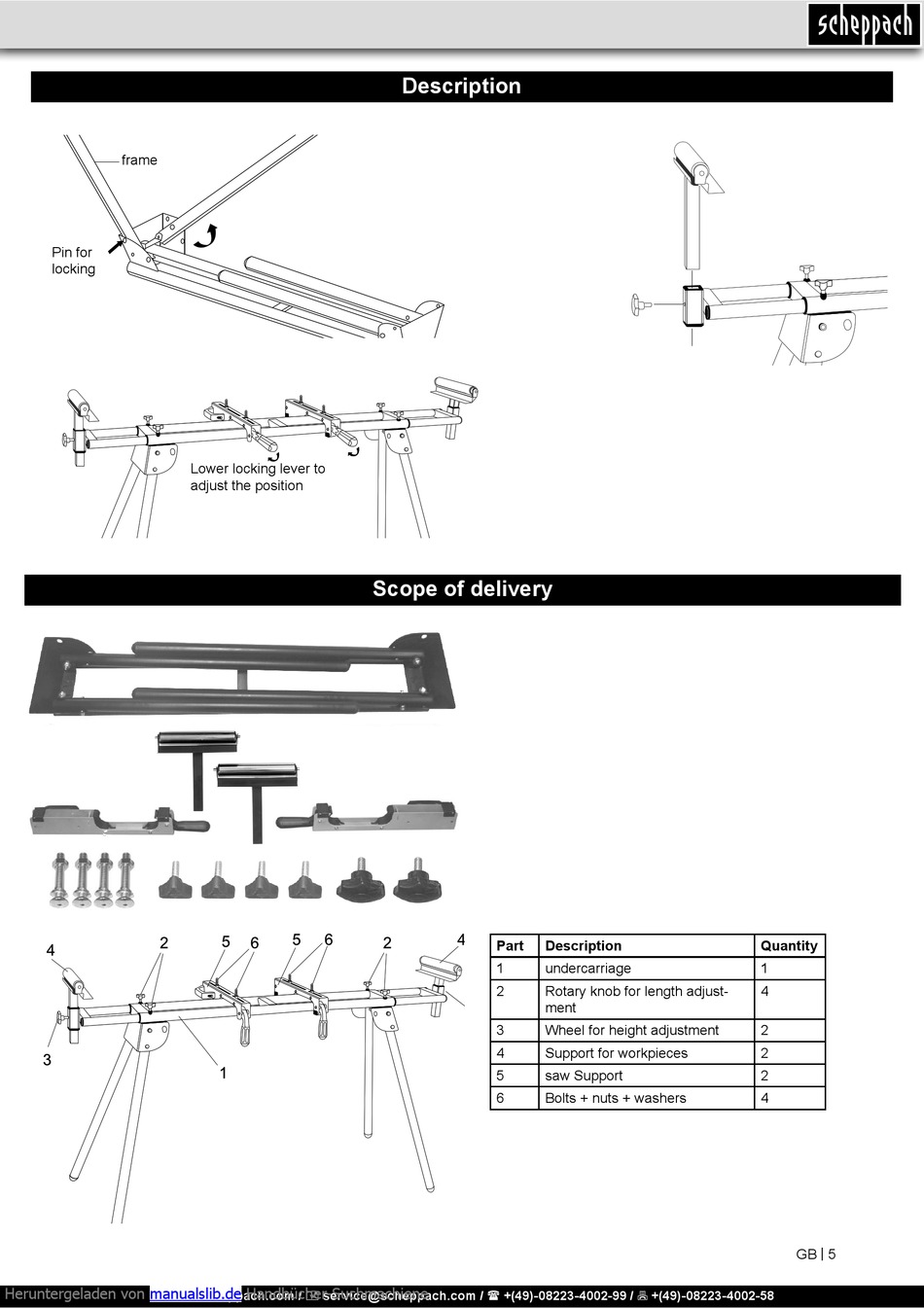

Description
Scope of delivery
Part
Description
1
undercarriage
2
Rotary knob for length adjust-
ment
3
Wheel for height adjustment
4
Support for workpieces
5
saw Support
6
Bolts + nuts + washers
Quantity
1
4
2
2
2
4
GB | 5
