Podstavec
Pin pre
kotvenie
Heruntergeladen von
manualslib.de
www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58
Dolný upevňovací páka
pre nastavenie polohy
páka
Handbücher-Suchmachiene

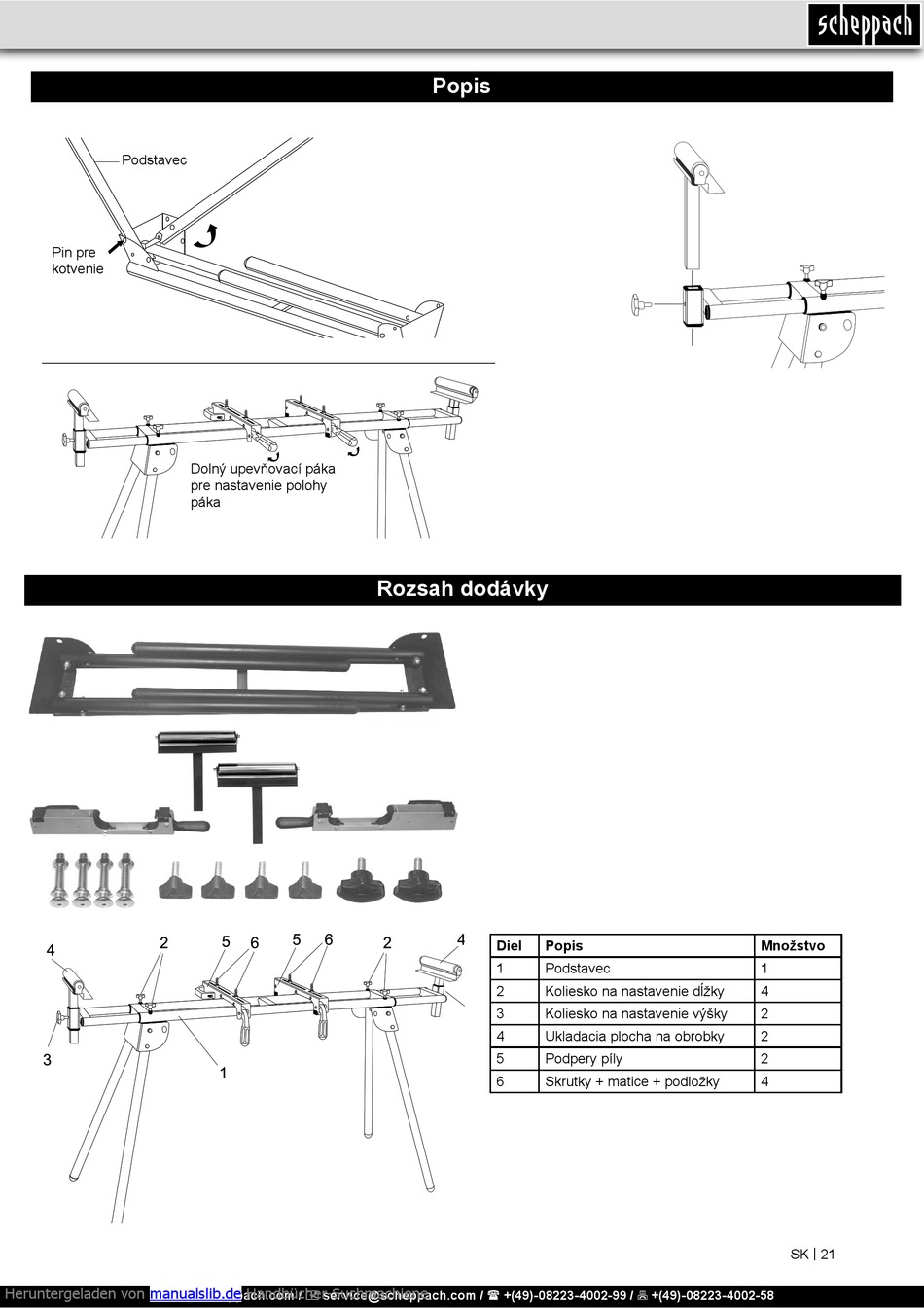

Popis
Rozsah dodávky
Diel
Popis
1
Podstavec
2
Koliesko na nastavenie dĺžky
3
Koliesko na nastavenie výšky
4
Ukladacia plocha na obrobky
5
Podpery píly
6
Skrutky + matice + podložky
Množstvo
1
4
2
2
2
4
SK | 21
