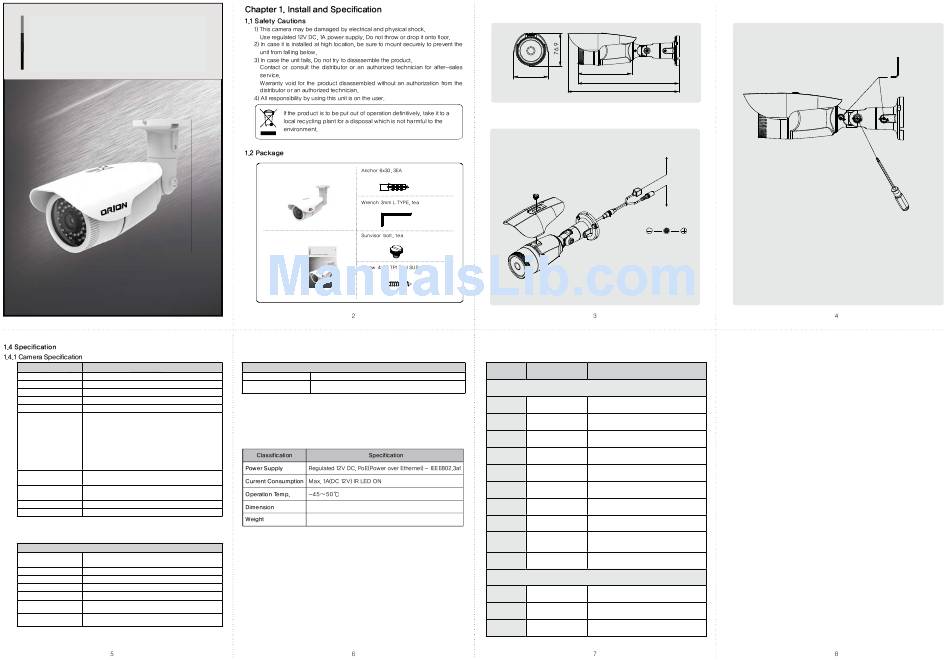

Orion SK-NP521/HS Quick Manual

2MEGA PIXEL
NETWORK PIPE CAMERA
QUICK GUIDE
Item Specification
Model No. SK-NP521/HS
G4S-795
Type 2MP network vandal-proof dome camera
Image Sensor 1/2.8" SONY IMX291 STARVIS
Number of effective pixels 1945(H)×1097(V) approx
Stream Multiple Stream
Main Stream 1
1920×1080,1280x1024 ,1280x960,1280x720
Sub-stream2
1280x720,800x600,704x576,640×360,
Resolution
640x480,352x288,352x288,
320x288,320x176
Sub-stream 3
704x576,640x480,640×360,352x288,320x288,320x176
H.264 Baseline/H.264 Main Profile/H.264 High Profile /
Encode Type
H.265 Main Profile
IR LED OFF:0.01Lux
Min.llumination
IR LED ON: 0Lux(25M Rang)
IR LED 30PCS
Lens 3.6mm Fixed Lens

1.4.2 Image Function

Rotate mode, saturation, brightness, contrast,
Image settings
adjustable through
Day&Night Auto/Day/Night
WDR WDR(Disable,Low,High)
Electronic Shutter 1/5s to 1/50,000s
Privacy Mask On/Off( 4 Programmable Zones)
White Balance Auto,Cloudy,Sunny,Fluorescent,Tungsten
ROI Up to 4 configurable areas.
Camera
Quick Guide
2 MERA PIXEL
NETWORK DOME CAMERA
QUICK GUIDE

1.4.3 Interface

Interface
Communication interface RJ45 10M / 100M ethernet port
Video output 1 Vp-p composite output (75 Ω / BNC)

1.4.4 Electric Specification

80.7(W)x76.9(H)x258.2(D)mm
Approx. 800g

1.3 DIMENSION

126
80.7
235
258.2
1.4 CONFIGURATION
RJ45 LAN
POWER CABLE
12DCV

1.4.5 Basic setting Table.

Item Default setting Remarks
Network
Static IP/
Static IP
DHCP
IP address
192.168.1.30
Subnet mask
255.255.255.0
Gateway 192.168.1.1
Web Port 80
RTSP port 554
Upnp Disable
Date&Time GMT+01:00
Main stream:1920x1080,25fps,
Resolution
1920x1080,640x360
Sub stream: 640x360,25fps
ID/Password admin/admin
Stream setting
Stream1
H.264 1920x1080,25fps rtsp://[ip address]:554/media/live/1/1
Stream2
H.264 640x360,25fps rtsp://[ip address]:554/media/live/1/2
Stream3
H.264 ,352x288,25fps rtsp://[ip address]:554/media/live/1/3

1.4 ADJUST THE DIRECTION

WRENCH 3mm
"+" DRIVER
<After mounting the camera on a wall or ceiling>
1.Loosen a bolt by using the wrench inclued and '+' type driver.
2.Face the direction of the camera to monitor.
3.Tighten a bolt to complete adjustment.
