Summary of Contents for Eicon Networks Diva 2430

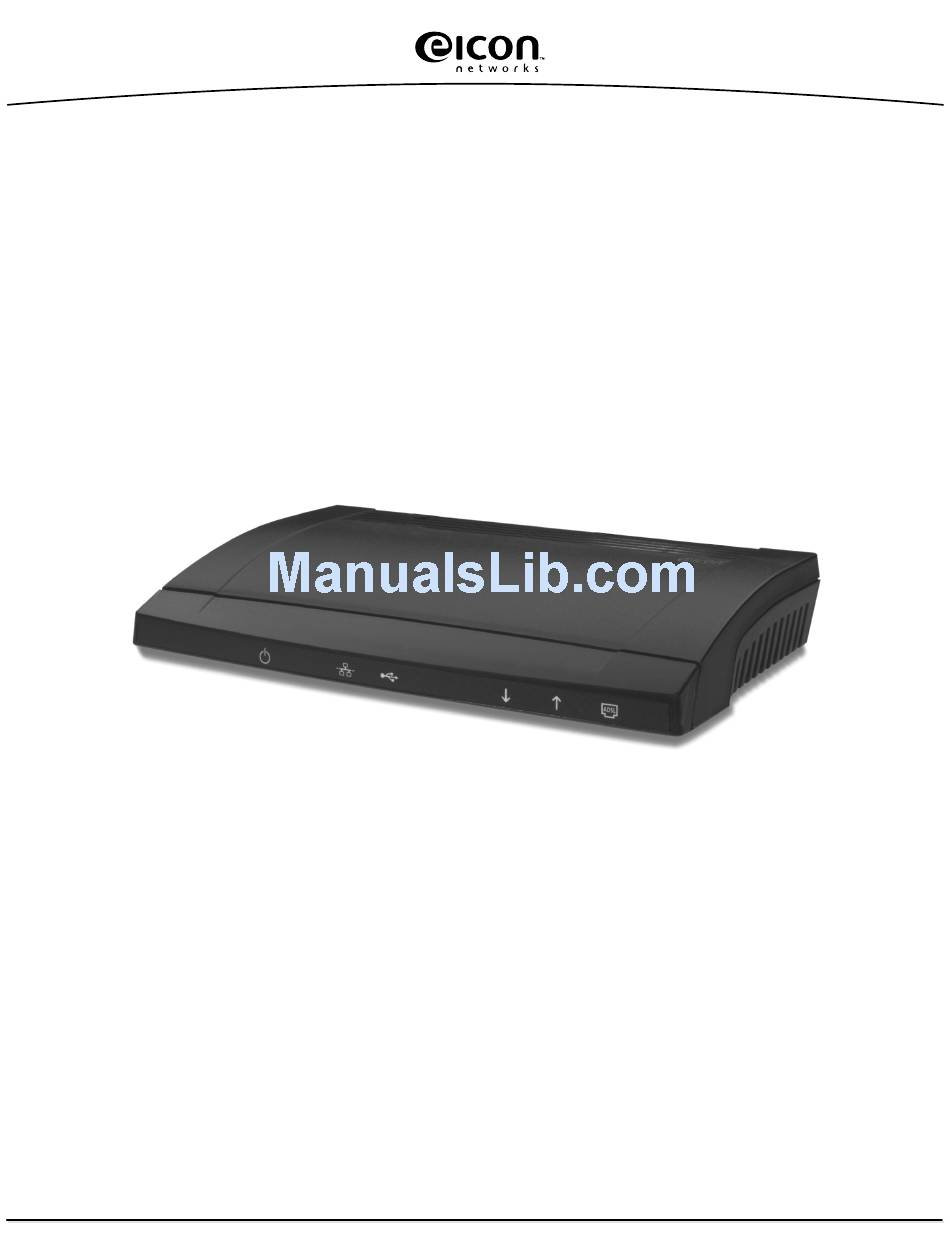

- Page 1 Diva 2430 ADSL Modem Quickstart Guide Installation and setup for a single computer For LAN installation, see the User’s Guide www.eicon.com...
-
Page 2: Before You Begin
This booklet is a quickstart guide for installing the Diva 2430 on a single computer. More detailed installation information and LAN setup instructions can be found in the User's Guide. • To open the PDF version of the User’s Guide, double-click on ‘user.pdf’ in the ‘doc’ folder of the Diva 2430 CD- ®... -
Page 3: Connect Microfilters To Telephone Devices
ADSL provider. Certain Diva 2430 models are equipped with a pass-through phone port. You can connect an telephone device (such as a telephone or fax machine) to this phone port. -
Page 4: Ethernet Setup
SETUP Ethernet Setup The following procedure describes how to connect the Diva 2430 to a single computer equipped with an Ethernet card, including all versions of Windows as well as Macintosh later, you can also connect the Diva 2430 via the USB port (see ‘USB Setup’ on page 5). -
Page 5: Usb Setup
SETUP USB Setup To connect the Diva 2430 via the USB port, your computer must be running Windows 98, Windows 98SE, Windows 2000, or Windows Me. For other operating systems, see ‘Ethernet Setup’ on page 4. Leave your computer on during the installation. Once you connect the Diva 2430 to your computer, Windows will automatically detect the device and request device driver information (provided on the Diva 2430 CD-ROM). - Page 6 Diva 2430. Quit all open applications. You must restart your computer once installation is complete. Insert the Diva 2430 CD-ROM into your CD-ROM drive if you have not done so already. The setup program should start automatically. If it does not, double-click ‘SETUP’...
-
Page 7: General Information
GENERAL INFORMATION Diva Assistant at a Glance The Windows® Diva Assistant provides a convenient way to manage your Diva 2430. The following is a brief description of how to use the software. The Diva Assistant program group is installed on your ‘Start’... -
Page 8: Indicator Lights
GENERAL INFORMATION Indicator Lights The indicator lights on the front of your Diva 2430 show the status of your device. Power Light • Solid Green: The unit is on and working correctly. • Off: The power supply is not connected.
