IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
THE INSTRUCTIONS HEREIN SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN.
THE APPLIANCE MUST BE COMPLETELY COOL AND THE GAS SOURCE MUST BE SHUT OFF.
THE POWER MUST BE DISCONNECTED. IF AN LP TANK IS INSTALLED, REMOVE IT. REMOVE
ALL ITEMS INSIDE THE LARGE DRAWER.
TOOLS REQUIRED:
Flat and Phillips screwdrivers
1/8" Allen wrench
CART DISASSEMBLY

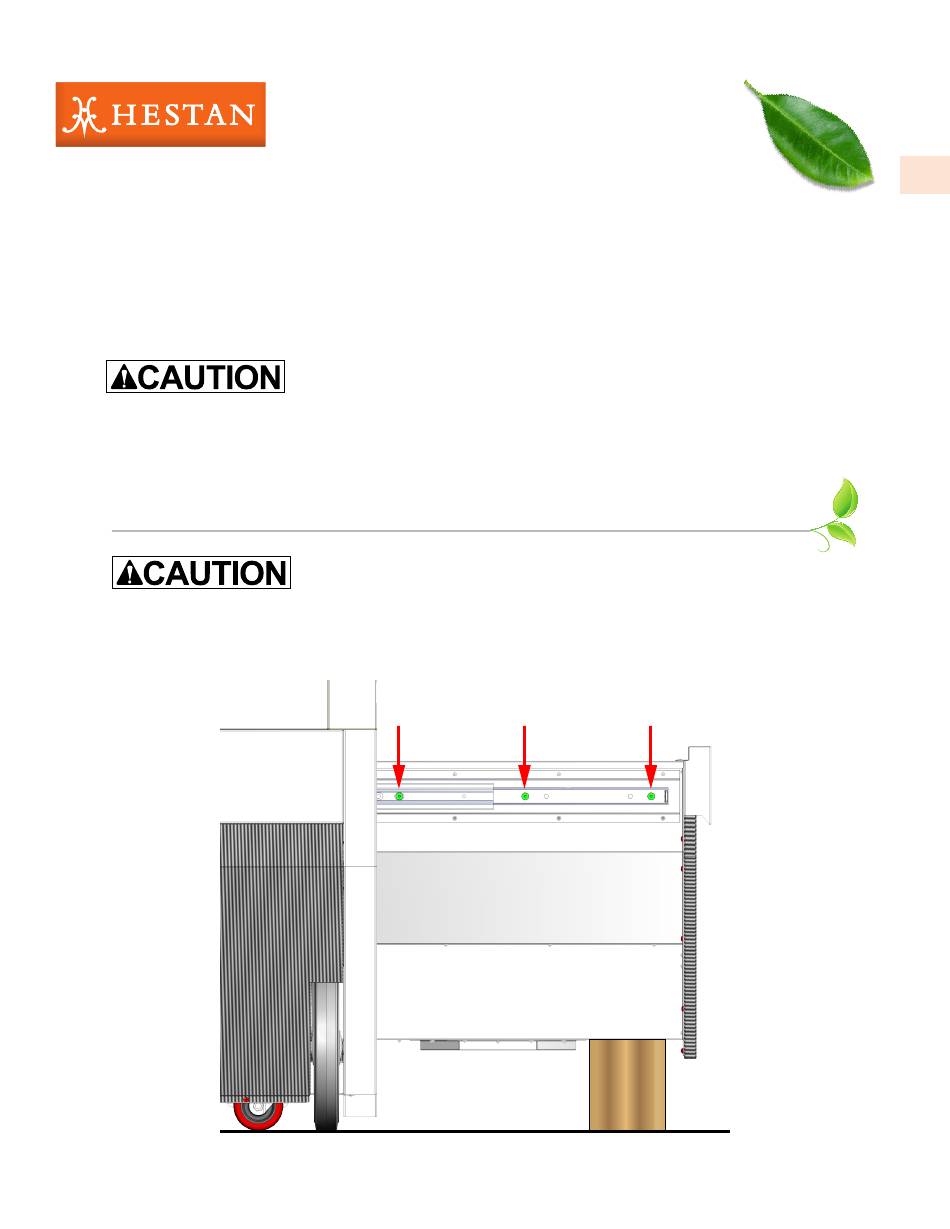

1. Fully extend the large drawer and place a block of wood beneath to support the weight of the
drawer. Using an Allen wrench, remove 3 attachment bolts on each drawer slide (red arrows)
as shown in Fig. 1. Remove the drawer from the grill cart with help from an assistant.
COLORED PANEL
REPLACEMENT
DELUXE GRILL -
MODEL # AGCP36x / 42x
Some parts inside your Deluxe Grill have sharp edges. Care must be taken
when handling the various components to avoid personal injury. Wear gloves
when handling.
NOTE: Parts of the grill are very heavy. Ask a helper to provide assistance
removing the large drawer. Apply the brakes to the 2 casters.
FIG. 1
©2019 Hestan Commercial Corporation
EN
1
Advertisement
Table of Contents
Related Manuals for hestan DELUXE GRILL AGCP36 Series
Summary of Contents for hestan DELUXE GRILL AGCP36 Series
- Page 1 1. Fully extend the large drawer and place a block of wood beneath to support the weight of the drawer. Using an Allen wrench, remove 3 attachment bolts on each drawer slide (red arrows) as shown in Fig. 1. Remove the drawer from the grill cart with help from an assistant. FIG. 1 ©2019 Hestan Commercial Corporation...
- Page 2 FIG. 2 LEFT PANEL REPLACEMENT 3. When viewed from the front, remove 6 screws 4. When viewed from the rear access areas, shown in Fig. 3. remove 3 screws shown in Fig. 4. FIG. 3 FIG. 4 ©2019 Hestan Commercial Corporation...
- Page 3 FIG. 5 RIGHT PANEL REPLACEMENT 6. When viewed from the front, 7. When viewed from the rear access remove 7 screws shown in Fig. 6. areas, remove 3 screws shown in Fig. 7. FIG. 7 FIG. 6 ©2019 Hestan Commercial Corporation...
- Page 4 Remember to plug in the electrical box connections. Check for proper grill operation. ©2019 Hestan Commercial Corporation P/N 030520 REV A...
