Modules
4.3 Installing/Removing Line Modules
Installing a Module
To install a line module, do the following:
1.
2.
3.
4.
5.
32
[Optional] If the device is installed in a rack, remove it from the rack.
Remove the current module from the slot.
Insert the new module into the slot.
Module
1
Chassis
2
Screw
3

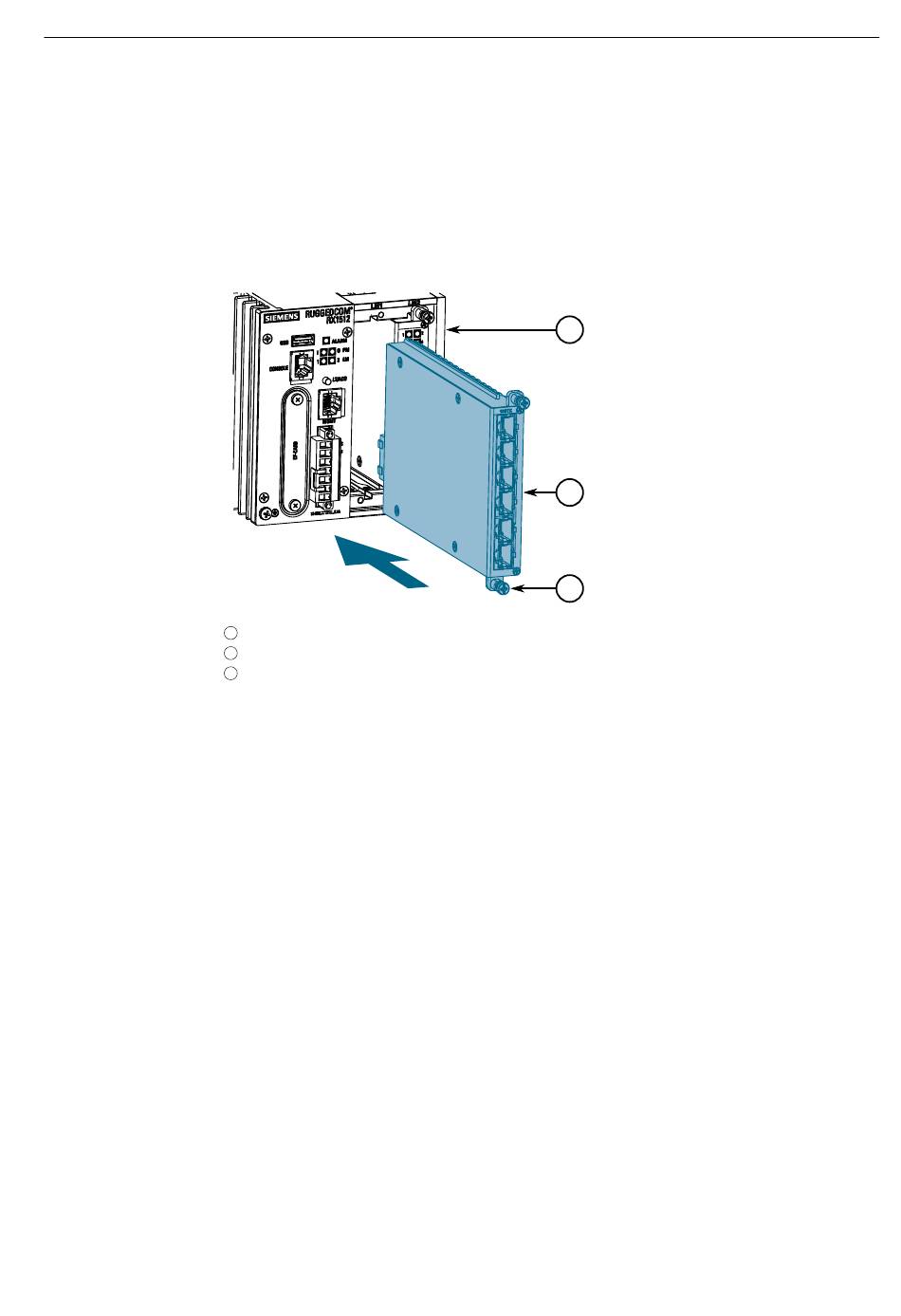

Figure 4.3 Installing a Module
Tighten the screws to secure the module.
[Optional] If necessary, install the device in the rack.
1
2
3
