Installing the Device
2.5.1 Connecting Low DC Power
1.
12
Connect the power supply terminal block to the device.
1
5
Surge Ground Terminal
1
Positive (+) Terminal
2
Chassis Ground Terminal
3
Negative (-) Terminal
4
Jumper
5
Chassis Ground Connection
6

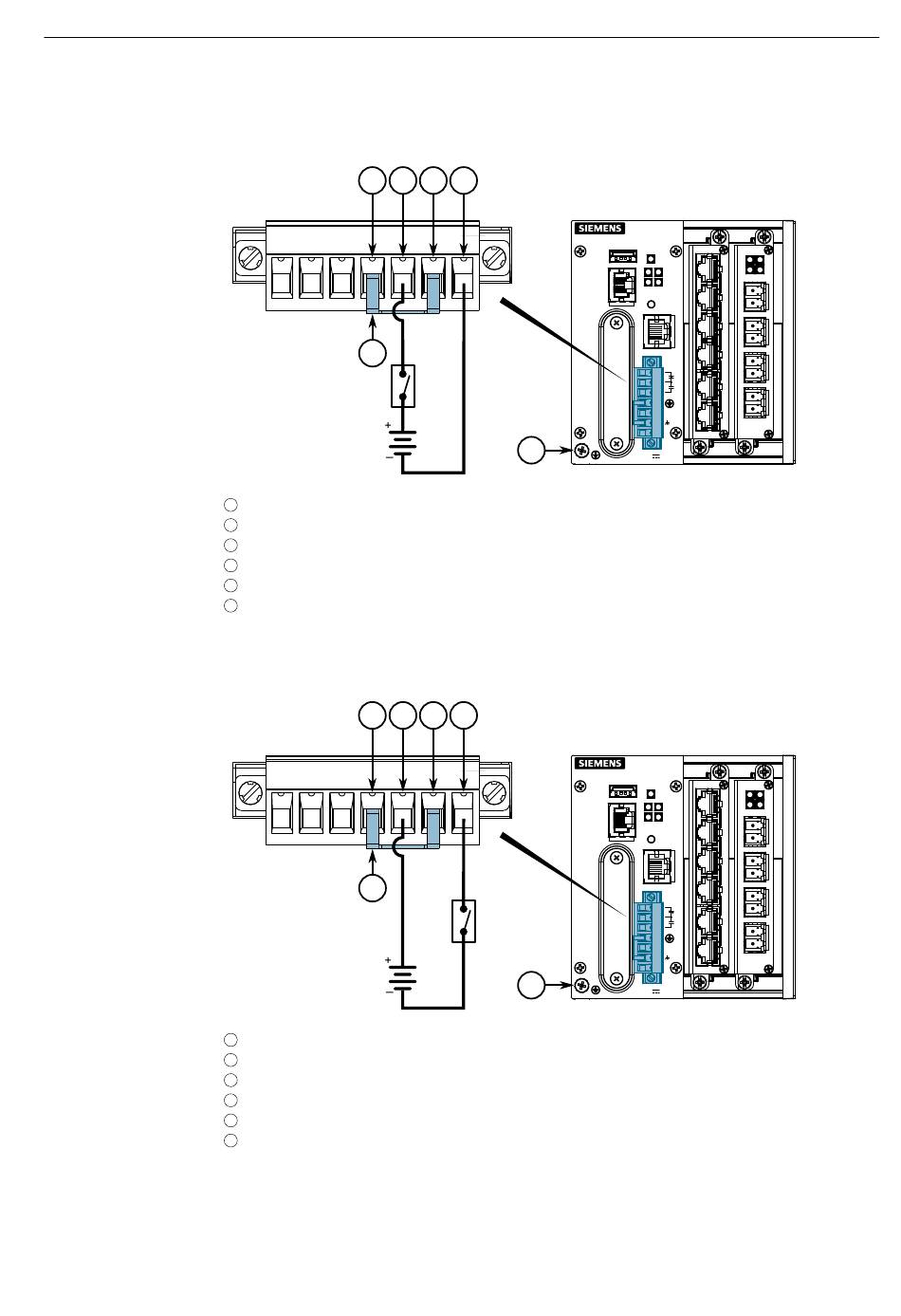

Figure 2.4
DC Terminal Block Wiring for Positive VDC Power Supplies
1
5
Surge Ground Terminal
1
Positive (+) Terminal
2
Chassis Ground Terminal
3
Negative (-) Terminal
4
Jumper
5
Chassis Ground Connection
6
Figure 2.5
DC Terminal Block Wiring for Negative VDC Power Supplies
2
3
4
6
2
3
4
6
RUGGEDCOM RX1512
Installation Manual, 04/2021, C79000-G8976-1057-20
