Electrical hazard – risk of power failure
Do not install more than one RUGGEDCOM APE module. Installing more than one of
this type of module can lead to power fluctuations and irregular shut downs.
Contamination hazard – risk of equipment damage
Prevent the ingress of water, dirts and other debris that may lead to premature
equipment failure. Always make sure slots are not left empty and open ports are
protected with plugs or covers.
Note
Only one WAN line module is supported per chassis.
Removing a Module
To remove a line module, do the following:
1.
2.
3.
4.
5.
RUGGEDCOM RX1512
Installation Manual, 04/2021, C79000-G8976-1057-20
NOTICE
NOTICE
[Optional] If the device is installed in a rack, remove it from the rack.
Loosen the screws that secure the module.
Pull the module from the chassis to disconnect it.
Module
1
Chassis
2
Screw
3

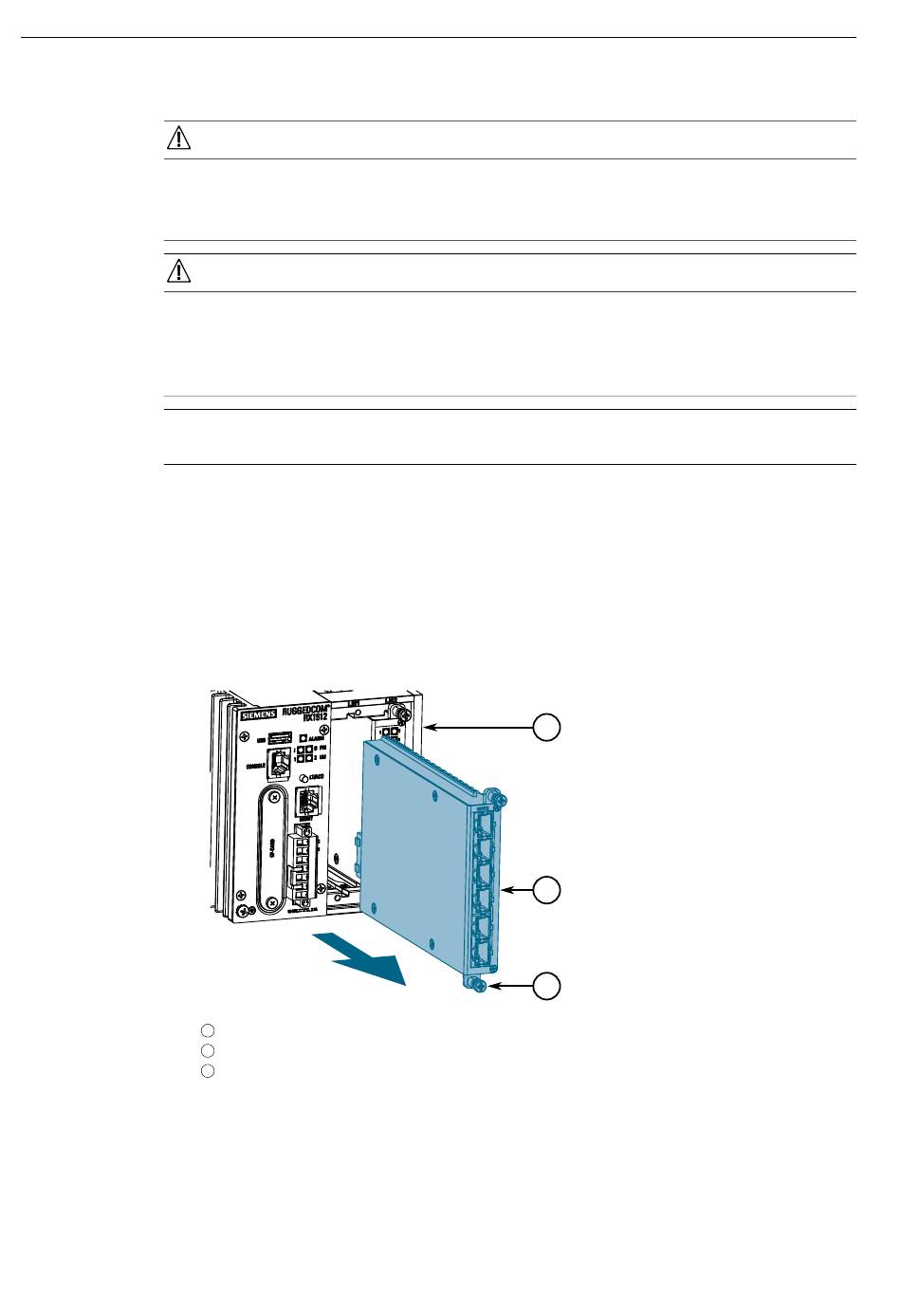

Figure 4.2 Removing a Module
Install a new module or a blank module (to prevent the ingress of dust and dirt).
[Optional] If necessary, install the device in the rack.
4.3 Installing/Removing Line Modules
1
2
3
Modules
31
