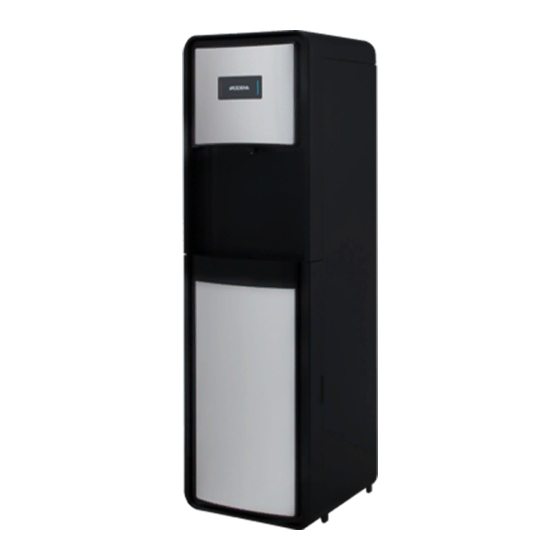

- Page 1 User Manual Book Water Dispenser Argento Series DD 7170 S...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE INTRODUCTION ⚫ Part 1 : Name of Parts ⚫ Part 2 : Installation ⚫ Part 3 : How to Use ⚫ Part 4 : Maintenance ⚫ Part 5 : Points of Attention ⚫ Part 6 : Troubleshooting ⚫... -
Page 4: Part 1 : Name Of Parts
Part 1 : Name of Parts Cold water Hot water indicator indicator On/off Switch Water level indicator Water tap Fuse Drain valve Drip tray Condenser Door... -
Page 5: Part 2 : Installation
Part 2 : Installation Please read this operation manual carefully before operating the appliance in order to use the appliance properly and safely. Pay attention to the entire sign or warning explained on the pictures or text. 1. Install the dispenser on an even and stable surface. - Page 6 water. 7. If the gallon is empty, turn off the red switch (heater) before replacing it with a new one. Attention! ⚫ This appliance is designed for indoor use. ⚫ Avoid placing the appliance in a humid, wet, and poor electrical installation because it can cause an electric shock or fire.
-
Page 7: Part 3 : How To Use
Part 3 : How to Use 1. Lock/Unlock Button 2. Hot water button 3. Normal water button 4. Cold water button Hot Water Operation steps: 1. Press the lock button with your finger for three seconds. 2. A beep sound will be heard. Press the hot water button immediately with your finger. -
Page 8: Part 4 : Maintenance
Normal water does not need to be unlocked. What you need to do is just press and hold the normal water button and the machine will pump water directly from the tank. When the cup is already filled in with the water, release the button to stop the water from dispensing. - Page 9 Part 5 : Precaution Action a. Install the dispenser on even surface. Avoid placing it in a humid place. A minimum distance of 20 cm from the wall must be provided. Do not store flammable substances near the dispenser. b. To avoid damage to the machine, avoid connecting power cord or pressing the heating switch (red) until the hot water comes out of the hot water tap.
- Page 10 If there is damage to the power cord, contact MODENA Call Center immediately to do a replacement. The replacement of power cord must be done by experienced expert and understands about electricity.
- Page 11 appliance. Do not do or allow others to do anything to the appliance before asking the official service providers. Part 6 : Troubleshooting Please check these following before contacting the Call Center if any problem occurs: PROBLEM POSSIBLE CAUSE RECOMMENDED ACTION Excessive usage of hot Wait until the water water or cold water in a...
-
Page 12: Part 7 : Specification
Part 7 : Specification Model DD 7170 S Type Cold, Normal & Hot Lower chamber Gallon storage Color Stainless (S) Hot water output (Liter/hour) Cold water output (Liter/hour) Hot water tank capacity (Liter) Cold water tank capacity (Liter) ≥90 High temperature (°C) ≤10 Cold temperature (°C) CFC Free compressor... - Page 13 11/20...
