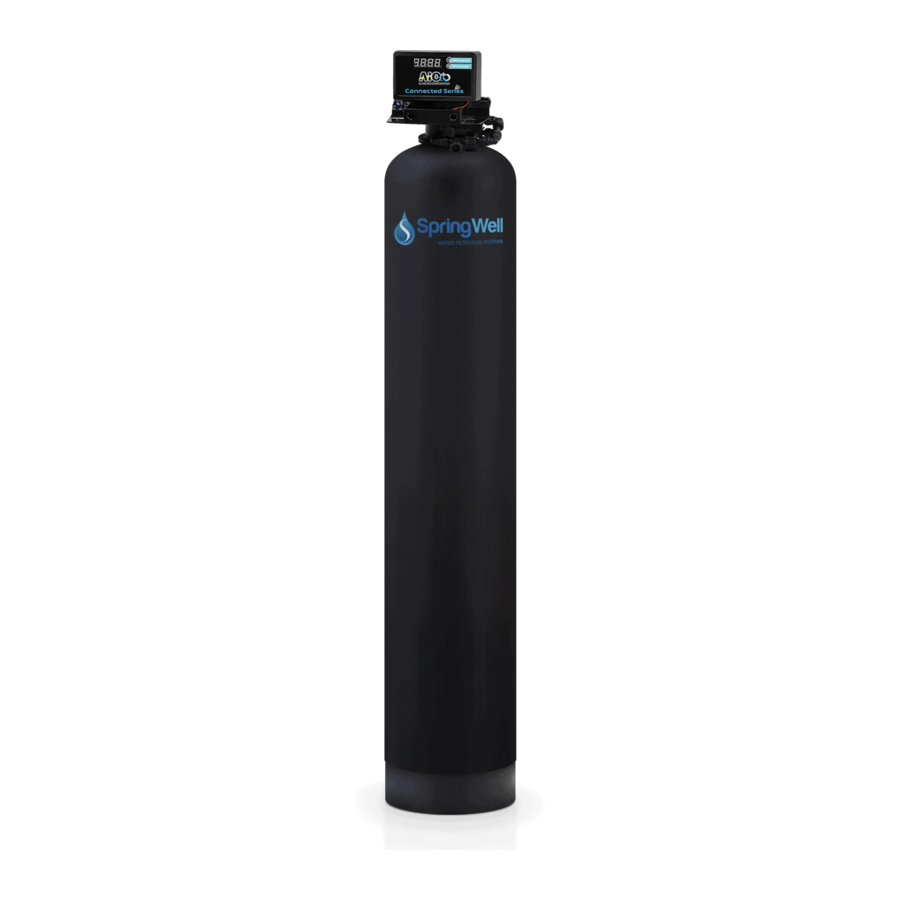

Installation Instructions
WELL WATER FILTER SYSTEM
MODELS: WS1, WS4
SpringWell Water Systems has once again taken the
latest technologies in water filtration and designed a
more economical and environmentally friendly well
water system.
CUSTOMER SERVICE IS AVAILABLE MON-FRI 9AM-6PM EST
800-589-5592
WWW.SPRINGWELLWATER.COM
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpringWell WS1
Summary of Contents for SpringWell WS1
- Page 1 Installation Instructions WELL WATER FILTER SYSTEM MODELS: WS1, WS4 SpringWell Water Systems has once again taken the latest technologies in water filtration and designed a more economical and environmentally friendly well water system. CUSTOMER SERVICE IS AVAILABLE MON-FRI 9AM-6PM EST 800-589-5592 WWW.SPRINGWELLWATER.COM...
- Page 2 Additional Parts Included Electronic Head 50’ Drain Line Bypass Valve Hose Clamp PLEASE READ INSTRUCTIONS FULLY BEFORE INSTALLATION. Be sure to follow all applicable plumbing codes. The system must be installed on main water supply line. CAUTION: Do not install on well water unless you have spoken to a customer service representative first.
-
Page 3: Product Specs
Product Specs Tank Width 10” Tank Height 54” (64” with head) Flow Rate 12 GPM Service Connection Size 3/4” Backwash Rate 5 GPM Operating Pressure 25-80 PSI Operating Temperatures 36 - 120 F pH Range 6.8 - 10 Tank Width 13”... -
Page 4: Installation Instructions
Installation Instructions Locate main tank box and unpack the tank. Next, unpack the small box of parts and the electronic head. Remove the gray cap on top of the main tank. Remove the blue cap from the distributor tube. Be sure Diffuser is 1” below the neck of the tank. Place the electronic head on top of the distributor tube and press down, then screw down hand tight. - Page 5 Install Bypass Locate the bypass valve and push it onto the head following the arrows on top. Next secure the bypass by hooking metal tab to edge and tightening down the screws. Be sure to tighten screws all the way down as there will be pressure on the bypass.
- Page 6 Install Bypass Note: This is the point where you will install the system into your main plumbing. This system should be installed before water softeners, chlorinators, etc. This system should be installed after sediment filters, or neutralizing filters. (calcite, corosex) Determine the area where you want to install your system.
-
Page 7: Connect Drain Line
Connect Drain Line Locate the drain line. Connect the drain line to the white barb fitting on the electronic head. Slip the drain line over the barb then secure it with the hose clamp provided. Due to the release of air during regeneration, the drain line must be plumbed in Schedule 40 PVC Pipe and securely fastened or anchored throughout the run. -
Page 8: Setting The Electronic Head
Setting The Electronic Head Plug the electronic head into the outlet and it will automatically come on. To set the head the time must always be on 12:01 PM. Hold up or down button until you get to 12:01 PM. Hit the regen button once to set time. - Page 9 Turning Main Water Back On Once the settings are all done you should be ready to turn the water back on. Turn on slowly. Once water is on be sure to check the bypass valve. It needs to be in the on position. (on position) Finish The Install: Now that the water is back on check for leaks and make sure there are none.
-
Page 10: Warranty Information
Warranty Information For more information on our warranty, please visit www.springwellwater.com/warranty/...
