QUICK START PROCEDURE

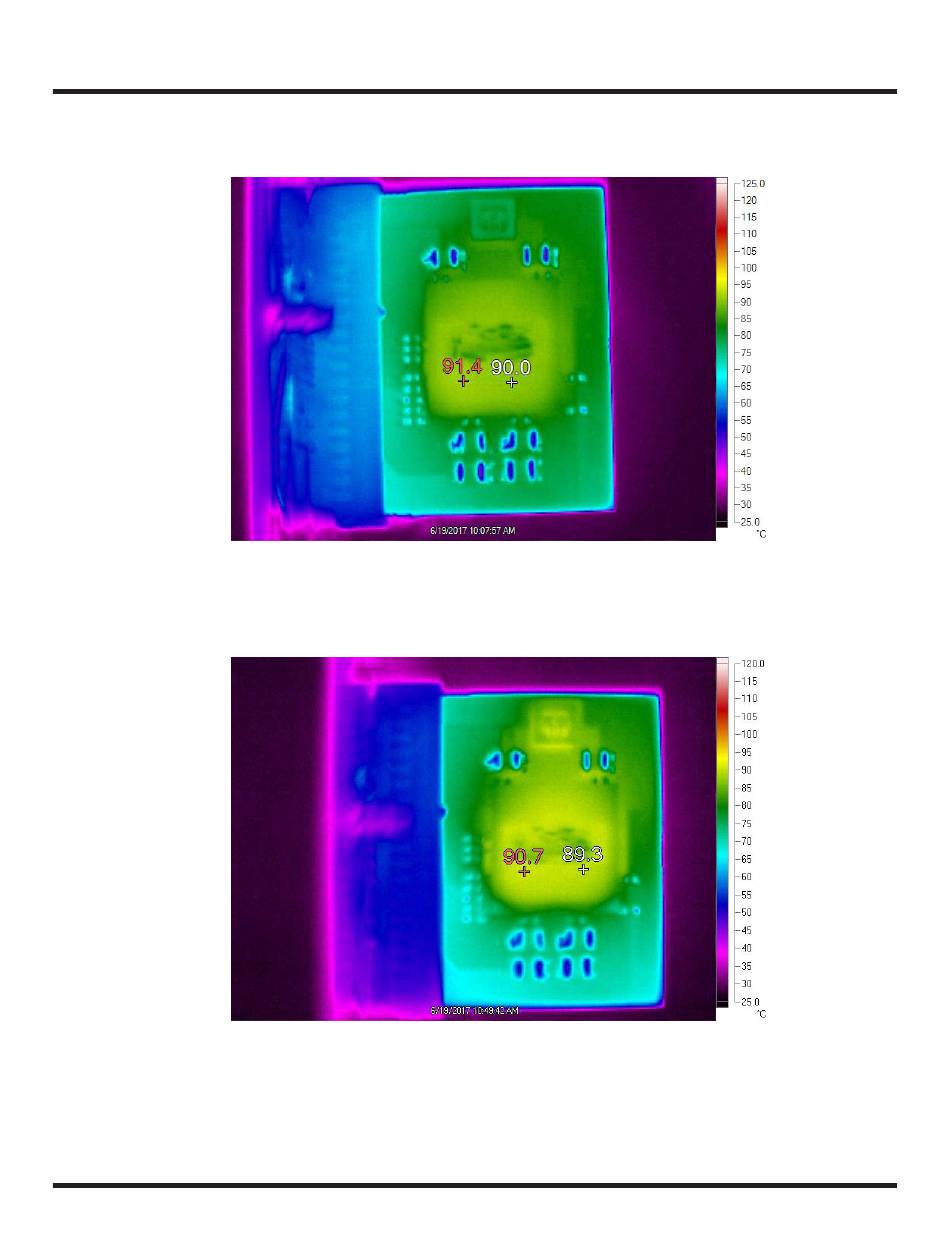

Figure 7. Thermal Performance at V
f
SW
Figure 8. Thermal Performance at V
f
SW
= 600kHz, T
= 23°C, No Forced Airflow
A
= 600kHz, T
= 23°C, 400LFM Airflow
A
DEMO MANUAL DC2268A-I
= 12V, V
= 3.3V/11A, V
IN
OUT1
= 12V, V
= 3.3V/19A, V
IN
OUT1
= 1.5V/11A,
OUT2
= 1.5V/19A,
OUT2
dc2268aif
