Herschel iQ Heating Controls

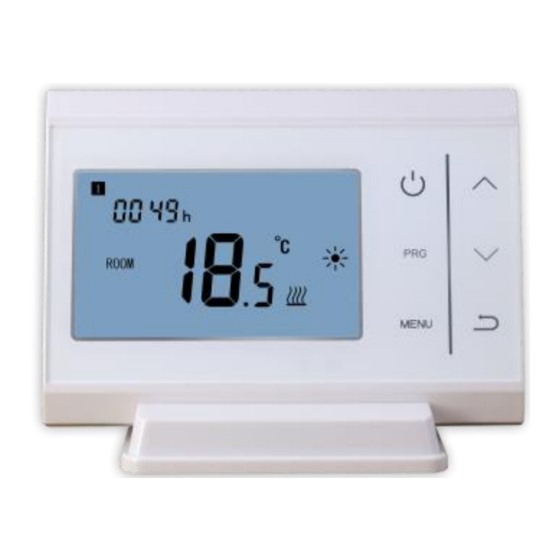

T2 wireless thermostat
Installation and operating instructions
Technical Information
Power supply T2:
Installation:
Setpoint Range:
Accuracy:
Ambient temperature:
Relative humidity:
T2 Backlight:
Sensor:
Protection Class:
Housing:
Wireless:
Wireless Range:
Programming:
Energy saving:
Warranty:
Certifications:
The product complies with European Safety Standards Low Voltage Directive 2014/35/EC, EMC
Directive 2014/30/EC, RED Directive 2014/53/EC, RoHS 2011/65/EC & Ecodesign requirements
for local space heaters 2009/125/EC.
Original instructions covering Herschel iQ controllers produced from 08/2020 onwards
R2
2 x AAA Batteries
T2: Wall Mounted or free-standing
5-35°C (temperature increments 0.5 °C)
+/- 0.5 °C
0 - 50 °C
85%
White
NTC 10K
IP20
ARC+PC
433Mhz (RF)
35m
7 day program, 4 periods per day
Open Window, Adaptive Start
Smartlife App Control
Works with Alexa and Google Assistant
when paired with the SmartLife App
2 years
CE, RoHS, EMC, RED, LOT20
Select XLS
T2

Advertisement

loading
Need help?

Need help?

Do you have a question about the iQ T2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Herschel iQ T2

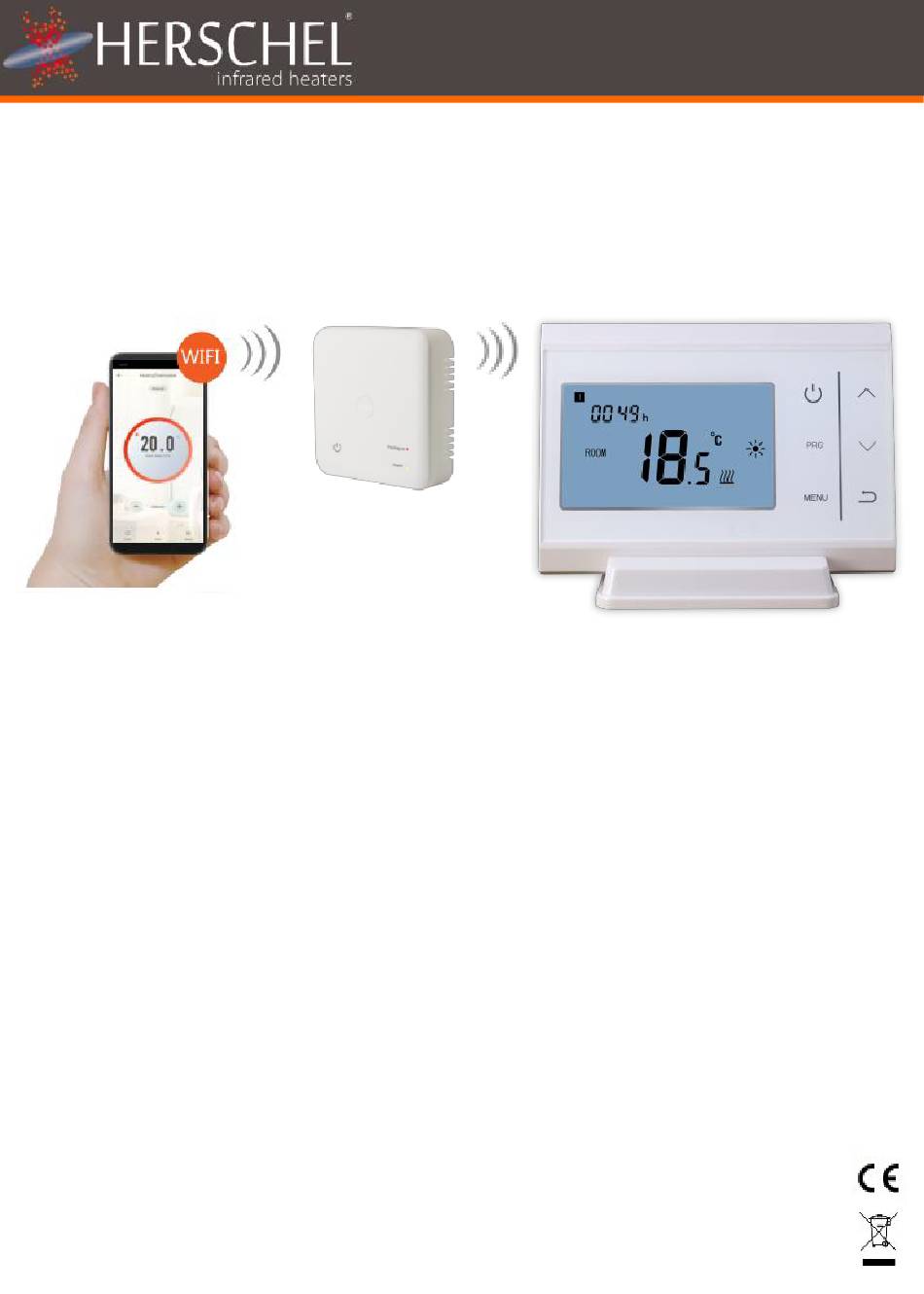

  • Page 1 CE, RoHS, EMC, RED, LOT20 The product complies with European Safety Standards Low Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC, RED Directive 2014/53/EC, RoHS 2011/65/EC & Ecodesign requirements for local space heaters 2009/125/EC. Original instructions covering Herschel iQ controllers produced from 08/2020 onwards...
  • Page 2 T2 Wireless thermostat T2 Wireless thermostat The Herschel iQ T2 Thermostat & R2 receiver are designed to regulate Herschel Infrared Heaters and incorporate the latest energy-saving features. These include Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use.
  • Page 3: Initial Setup

    T2 Wireless thermostat Display & Buttons T2 Control Unit Installation T2 Stand-alone: Wall-mounted: Initial setup Insert 2 x AAA batteries into the T2.
  • Page 4 T2 Wireless thermostat Pairing Instructions T2 to R2 For First R2 paired to a T2 Switch on the R2 using the power button. Confirm LED2 is green. Long press the Boost button until LED 1 flickers Red. Turn OFF the T2. Long press the MENU button until a code appears in the display.
  • Page 5 You can always find the most up to date version of the instructions by checking the T2 / R2 product pages on the Herschel website, where there is a link to the most up to date instructions.
  • Page 6 T2 Wireless thermostat Time & Day setting Turn T2 on. Press the MENU button for 3 seconds until the minutes display flashes. Press the Up or Down arrow buttons on the display to change the value (each press = 1 minute). Press the MENU button again to change the hour display.
  • Page 7 Period 3 is the temperature required for the evening and period 4 is the overnight temperature. Unlike conventional heating, Herschel Far infrared directly heats the room (the “Thermal Mass”). For areas in frequent use it is more economical to avoid temperatures dropping too low as the heater will need to be on for a much longer period to restore temperatures.
  • Page 8 Adaptive Start is another energy saving feature designed to smooth-out heating consumption when large jumps in temperature exist between the current set temperature and the next scheduled temperature (implies large energy use). Herschel’s adaptive start function will compare the currently sensed temperature against the next scheduled setpoint and if the difference is more than 5°C it will start the heater...
  • Page 9 The warranty covers the repair of replacement of the defective product only and Herschel shall have no liability for installation costs or consequential loses however incurred. The decision to repair or replace will rest solely with Herschel and any replacement will be as close as possible in specification to the failed unit.
