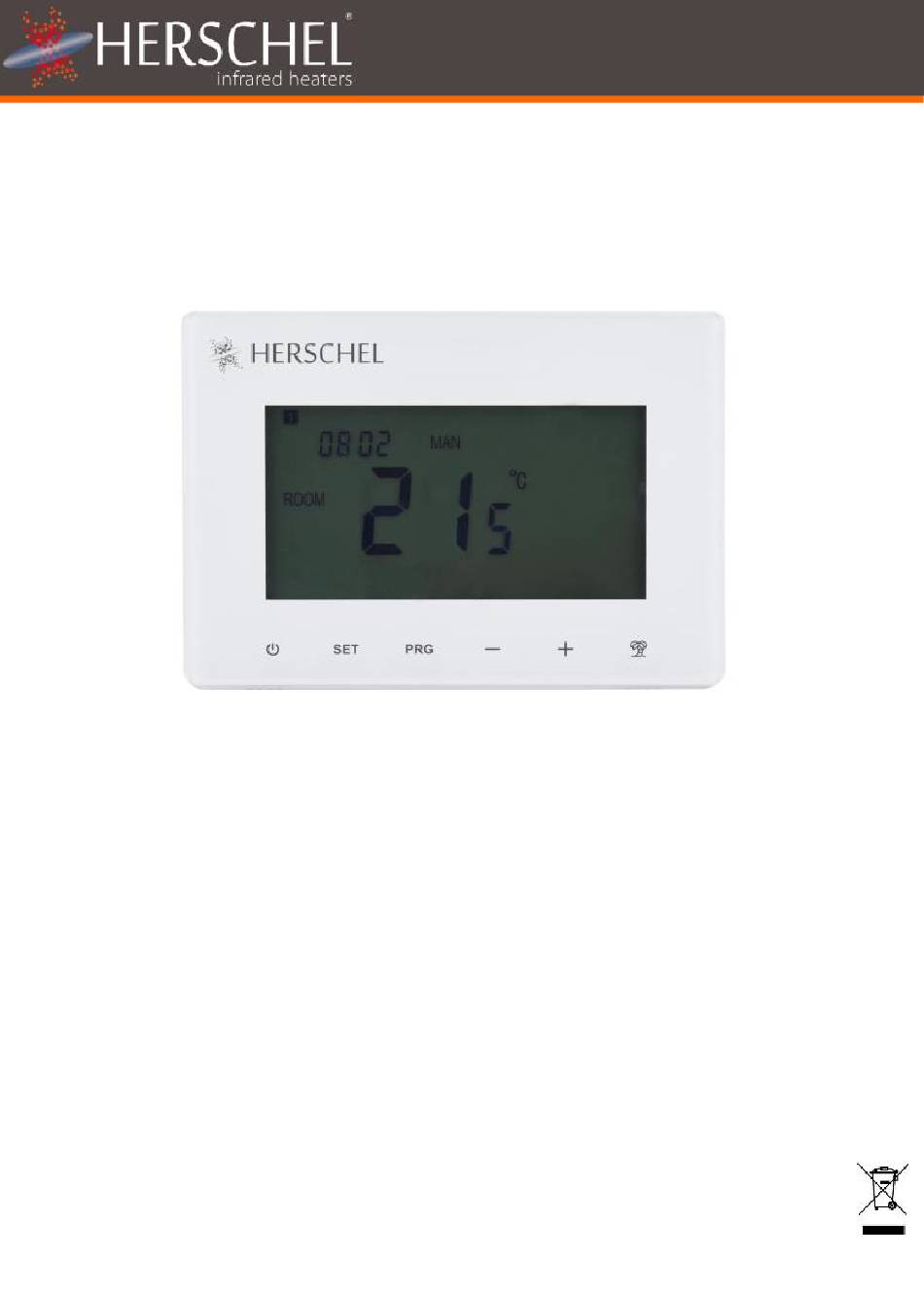

Herschel XLS Heating Controls

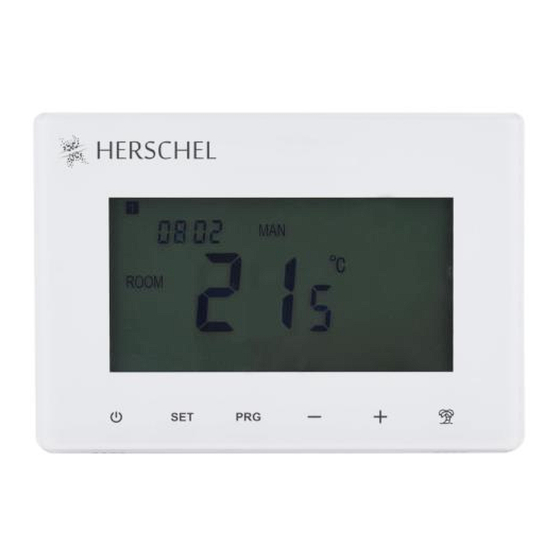

T-BT Battery powered wireless thermostat
Installation and operating instructions

Technical Information

Power Supply:

Installation:

Setpoint Range:
Protection Class:
Wireless (RF):
Wireless Range:
Accuracy:
Programming:
Energy Saving:
Warranty:
Certifications:
The product complies with European Safety Standards Low Voltage Directive 2014/35/EC, EMC
Directive 2014/30/EC, RED Directive 2014/53/EC, RoHS 2011/65/EC & Ecodesign requirements for
local space heaters 2009/125/EC.
Original instructions covering Herschel XLS controllers produced from 08/2019 onwards
2 x AA Batteries (not included)
Free-standing or wall-mount
5-30°C
IPX0
433Mhz
35m
+/- 0.5°C
7 day program, 4 periods per day
Open Window, Adaptive Start
2 years
CE, RoHS, EMC, RED, LOT20
Select XLS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Herschel T-BT

  • Page 1 CE, RoHS, EMC, RED, LOT20 The product complies with European Safety Standards Low Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC, RED Directive 2014/53/EC, RoHS 2011/65/EC & Ecodesign requirements for local space heaters 2009/125/EC. Original instructions covering Herschel XLS controllers produced from 08/2019 onwards...
  • Page 2 Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use. The T-BT can be paired to more than one heater meaning multiple heaters within the room can be controlled with the same T-BT thermostat.
  • Page 3 Gently open the T-BT case using a flat headed screw driver. Insert 2 x AA Batteries (not supplied). Place the front face of the T-BT over the rear casing ensuring the vents on the rear casing are at the bottom (see diagram below) and snap shut.
  • Page 4: Operating Instructions

    1. Double press the Pairing button on the SMART-R box of the heater. The green pairing status LED will start to flash and the heater is ready for pairing. 2. Press the Power button on the T-BT to turn the unit off. “OF” is shown on the display.
  • Page 5: Manual Mode

    Select the Manual mode by clicking the PRG button until MAN is shown on the display. Use the + or – buttons to set the temperature you want the T-BT to maintain in the room. Note that the T-BT will maintain this temperature 24 x 7 until you switch to another mode.
  • Page 6: Holiday Mode

    T-BT Battery powered wireless thermostat Programming the T-BT To change the program defaults, proceed as follows. Select 5+2 or 7x1 programming modes With Program Mode PRG selected, long-press button commence programming. Number 01 will flash on the display. This signifies choosing a 5+2 schedule.
  • Page 7 Open Window Function If the T-BT detects a temperature drop of more than 3°C within 15 minutes, the controller will power-off the heater. “OF” will appear on the screen and the text “Alarm! Open Window!” will be displayed. Pressing the Power button on the unit will resume normal operation, or waiting for 30 minutes will also restore normal operation.
  • Page 8 Calibration Calibration is a process to alter the temperature of the T-BT up or down in order to align the unit with another thermostat. The T-BT can be calibrated 5°C up or down from the default of 0 (no calibration). You can calibrate in steps of 0.5°C.
