WIRELESS
THERMOSTAT
The Herschel iQ T1 Thermostat is a modern control
specifically designed to regulate Herschel Infrared
Heaters when paired with the iQ R1 wireless receiver.
When used in conjunction with the iQ HUB, it can also be
controlled remotely via the internet using an app.
T1 features 3 manual modes and 7 x 1 day
programming. T1 will operate your Herschel heater(s) by
turning them ON if the room temperature is lower than
the desired temperature and will turn them OFF once the
desired temperature is reached or exceeded.
The T1 is designed to be easy to operate and
incorporates the latest energy-saving features including
Herschel's open window technology and an adaptive
start function ensuring your room is always at the right
temperature with the least energy use.
The T1 can be paired to more than one R1 wireless
receiver, meaning multiple heaters within the room can
be controlled by the T1 Thermostat. Multiple heaters can
also be wired to a single R1 receiver so long as 10 amps
is never exceeded per R1.
Please read these instructions in conjunction with the R1
Wireless Receiver instructions. Both devices T1 and R1
must be "paired" to each other for the T1 to operate.
NOTE: The T1 cannot control Herschel infrared panel
heaters without the R1 Wireless Receiver.

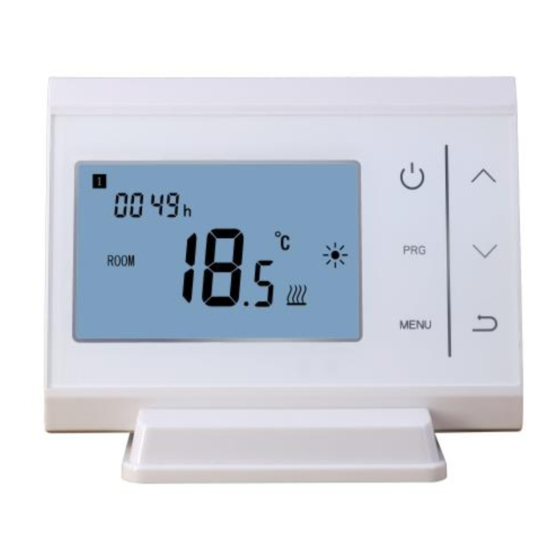

T1
Wireless Thermostat
Key features
• Battery operated
• Easy to use and install on a wall, or freestanding
• 7 x 1 day programmable
• 3 modes including holiday mode
• Open window function
• Adaptive start
• Wireless 433Mhz
• CE, Rohs, RED approved
• Wireless distance: 200m (in open places)
• 12 month warranty
The T1 can be wall mounted using the mounting
plate and fittings included or can be free standing
using the stand included. If possible, choose a
location where the unit cannot be interfered with by
unauthorised people and far enough away from the
Herschel infrared heaters to allow it to sense an
average room temperature.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Herschel t1
Summary of Contents for Herschel t1
- Page 1 • Wireless distance: 200m (in open places) temperature with the least energy use. • 12 month warranty The T1 can be paired to more than one R1 wireless receiver, meaning multiple heaters within the room can The T1 can be wall mounted using the mounting be controlled by the T1 Thermostat.
-
Page 2: Operating Instructions
Clock shows on the screen. Then press the MENU button again. • The code on T1 will flash until pairing with the hub is complete. The LED 2 on the Hub will also stop flashing. Time and Day setting Select... - Page 3 10°C). Mode temperature settings To set Mode temperature: • Press the MENU button, the Comfort Mode The T1 has 3 temperature modes. Use these modes if temperature symbol will displayed. the 7 day schedule is not required, or to override the Change the temperature using the Up and Down schedule –...
-
Page 4: Program Mode
Press the Up or Down button to change the time of Program Mode the first period of the day’s program. The T1 has a 7 x 1 day timer (Monday to Sunday) with • Press PRG again to move to the temperature 4 periods per day. - Page 5 T1 is placed in a cold area (e.g by a window) and in turn as shown in the table below. The parameter you want the T1 to stay on less so the rest of the room is changed by pressing the Up or Down button and does not overheat (positive adjustment needed).
-
Page 6: Mounting Options
T1 (Gen 3) WIRELESS THERMOSTAT Dimensions (mm): Technical Information: Frequency 433 MHz Power Supply 2*AAA battery Set Point Range 5~30℃ Ambient 0~50℃ Relative Humidity 85% Backlight White Sensor NTC 10K, 3950ohms at 25℃ Accuracy ± 0.5℃ (step control by +0.5℃)
