Herschel MD1 Operating Instructions Manual

MD1 WIRED
THERMOSTAT
The Herschel iQ MD1 is a 16 amp thermostat enabling
up to 3.6 kW of Herschel Heaters to be connected
through a single, easy to use control.
directly to the mains circuit powering the heaters. When
used in conjunction with the iQ HUB, MD1 can also be
controlled via the internet using the Herschel iQ app.
MD1 is easy to operate and incorporates Herschel's open
window technology to save energy. MD1 has a keypad
locking feature to prevent unauthorised tampering with
the settings and it can be programmed to control zones
up to 45°C, making it suitable for commercial use and for
specialist high temperature applications such as hot yoga
studios.
MD1 features 2 manual modes and 7 x 1 day
programming with up to 6 programmes per day. The MD1
will operate your Herschel heater(s) by turning them ON
if the room temperature is lower than the desired
temperature and will turn them OFF once the desired
temperature is reached or exceeded.
Please read these instructions carefully. MD1 operates
stand-alone, but must be paired to the iQ HUB if internet
operation is required.
MD1 is wired
Key features
• Mains operated
• Easy to use large LCD display
• Wall installation
• 7 x 1 day programmable, 6 periods per day
• 2 modes including Comfort and Economy
• Open window function
• 5°C - 45°C operation
• Keypad Lock
• Wireless 433Mhz
• CE, Rohs, RED approved
• 12 month warranty
The MD1 will require a single gang 46mm deep
pattress box for recessing into a wall, with access
to the mains circuit powering the heaters. Position
far enough away from the Herschel infrared heaters
to allow it to sense an average room temperature.

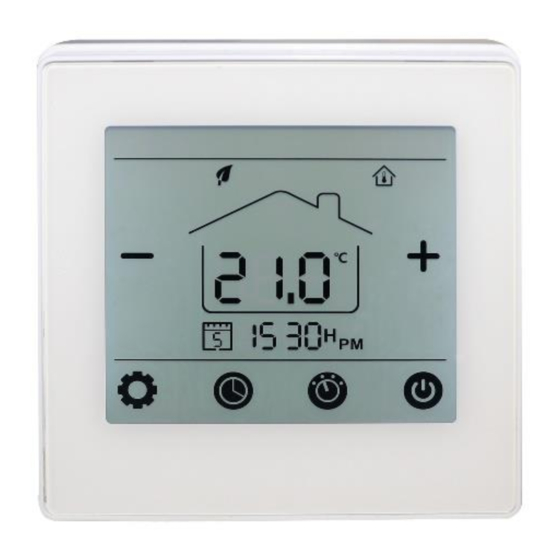

MD1 Wired Thermostat
