Herschel MD2 Manual

MD2 Wifi enabled
wired thermostat
The Herschel iQ MD2 is a 16 amp thermostat enabling
up to 3.6 kW of Herschel Heaters to be connected
through a single, easy to use control.
directly to the mains circuit powering the heaters. Built-in
wifi enables control via the internet using the SmartLife
App.
MD2 is easy to operate and incorporates Herschel's open
window technology to save energy.
keypad locking feature
tampering with the settings and it can be programmed to
control zones up to 45°C, making it suitable for
commercial use and for specialist high temperature
applications such as hot yoga studios.
MD2 features Manual, Eco and 7 day programming
modes with 4 periods per day. The MD2 will operate your
Herschel heater(s) by turning them ON if the room
temperature is lower than the desired temperature and
will turn them OFF once the desired temperature is
reached or exceeded.
Please read these instructions carefully. MD2 operates
stand-alone, but can be paired to the SmartLife App if
internet operation is required.
MD2 is wired
MD2 has a
to prevent unauthorised

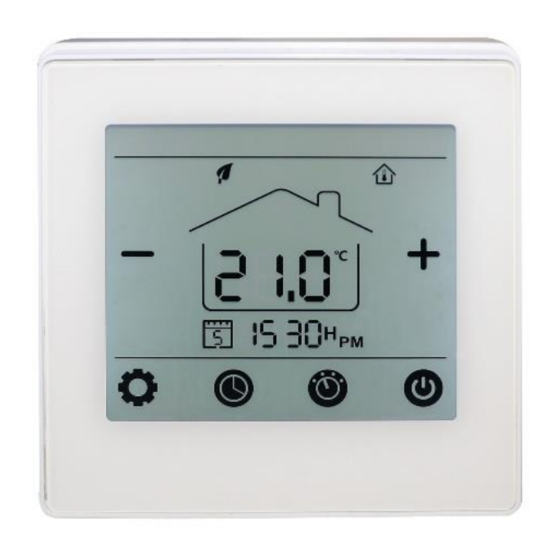

MD2 Wired Thermostat
Key features
• Mains operated
• Easy to use large LCD display
• Wall installation
• 7 x 1 day programmable, 4 periods per day
• Manual, Eco and 7 Day Programme modes
• Open window function
• 5°C - 45°C operation
• Keypad Lock
• Wireless 2.4GHz wifi
• CE, Rohs, RED approved
• 24 month warranty
The MD2 will require a single gang 46mm deep
pattress box for recessing into a wall, with access
to the mains circuit powering the heaters. Position
far enough away from the Herschel infrared heaters
to allow it to sense an average room temperature.
