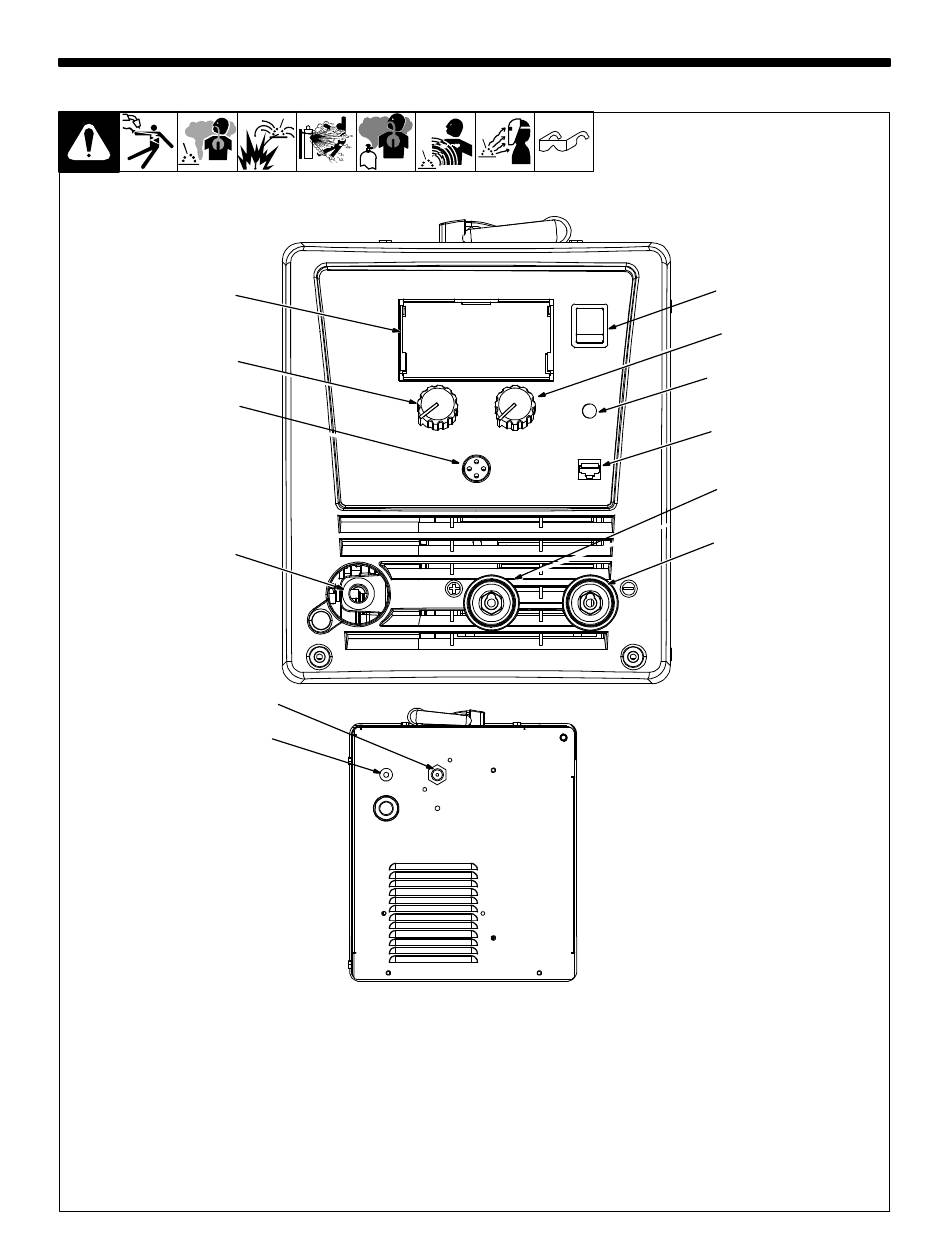

6-1. Controls

1
2
3
4
1 Display
2 Voltage Control Knob
Controls voltage in MIG process. See weld
parameter chart for initial setting.
3 MIG Gun and Spool Gun Trigger
Receptacle
4 MIG Gun and Spool Gun Power
Receptacle
OM-285922 Page 30
SECTION 6 − OPERATION
11
12
5 Positive Output Receptacle
6 Negative Output Receptacle
7 TIG Remote Receptacle
Connect optional foot control to unit.
8 Process Select Button
Press the button to select the desired
process.
Rear View
10
9
8
7
5
6
Ref. 500578-A
9 Wire Feed/Amperage Knob
Controls wire feed speed in MIG process
and amperage in the stick or TIG process.
See weld parameter chart for initial set-
tings.
10 Power Switch
11 Shielding Gas Fitting
12 Circuit Breaker CB1
