Summary of Contents for Yard force Easymow 260

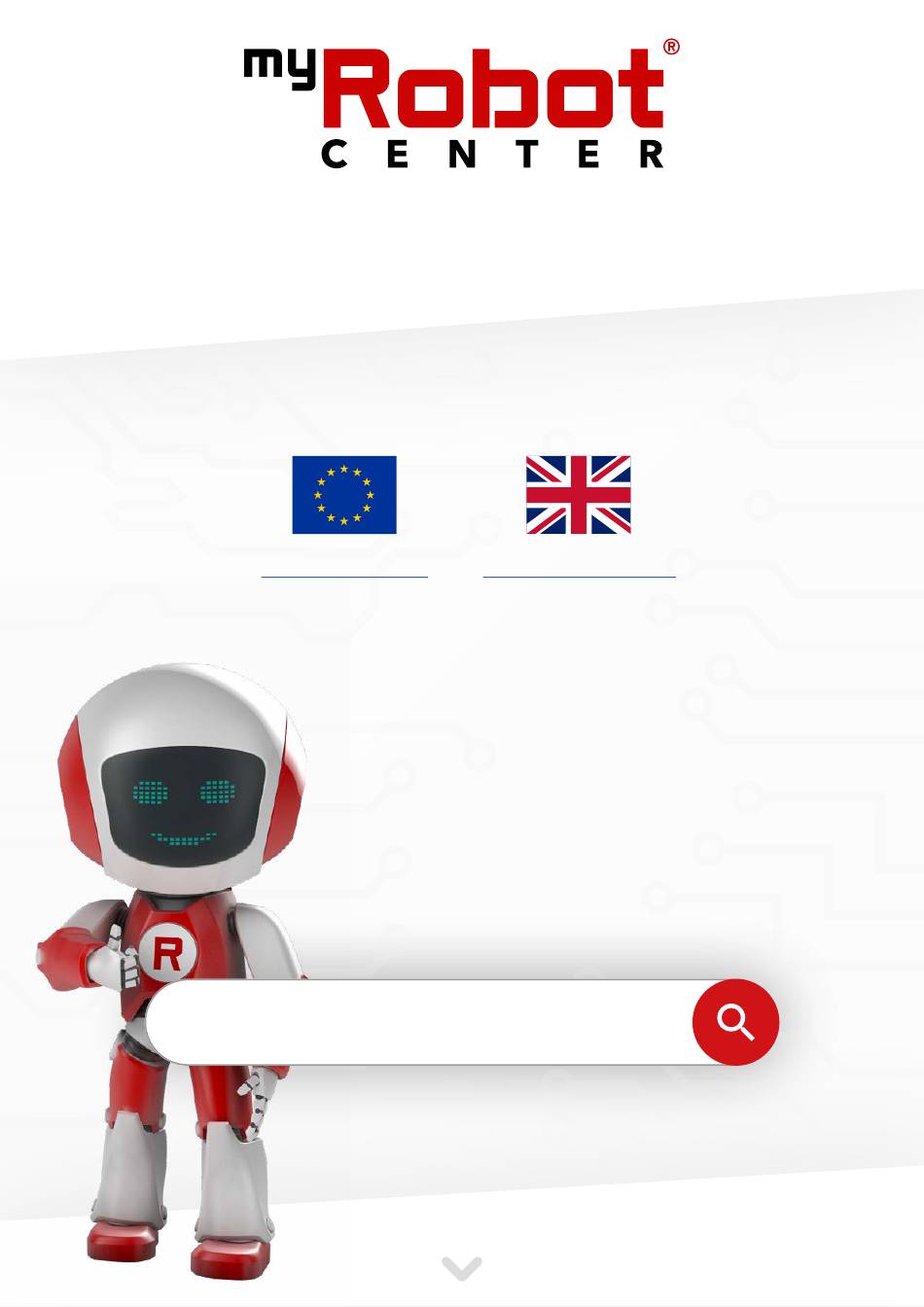

- Page 1 The expert for robots in your home With one click to the online shop myRobotcenter.eu myRobotcenter.co.uk myRobotcenter...
- Page 2 30 cm < 10 cm > 10 cm max. 30 cm 30 cm Easymow 260 min. ROBOTIC MOWER ROBOKOSACKA Original Installation Guide Originálna inštalačná príručka MÄHROBOTER ROBOT-TONDEUSE Original Installationsanleitung Guide d’installation d’origine 5 cm < ROBOTSKA KOSILNICA ROBOSEKAČKA Izvirni vodnik za namestitev Guida all’installazione originale...
-
Page 3: Table Of Contents
CONTENT Description of product STOP button Charging port Description of the product ..........1 Rear wheel Height adjustment dial Installation ..............2 Control panel USB interface Operation ..............10 On/Off switch Front wheel Technical data ..............13 Cutting blade Maintenance and storage ..........14 Troubleshooting ............16 Scope of delivery Robotic Mower... -
Page 4: Installation
Installation Installation Guide This chapter explains how to install the Robotic Mower. Please read this completely before you start the installation. Introduction We recommend creating a drawing of your lawn, including all obstacles and how these should be protected. This makes it easier to find a good position for the docking station and how to correctly place the boundary wire around your garden perimeter protecting bushes, flower beds etc. - Page 5 > +/- 5° > +/- 5° Uneven lawn surfaces Uneven lawn areas may cause the blades to touch the ground. We recommend leveling the lawn If your lawn has a soft or uneven surface, we recommend fortifying the area around the docking before using your Robotic Mower or excluding uneven areas with the boundary wire.
- Page 6 correct distance from lawn edges (30 cm) and obstacles. cause severe damage to the electronic parts. Therefore, it is imperative to exclude any pools from the cutting area. For added safety, we recommend placing a fence around the pool. Flowerbeds Use the boundary wire to exclude any flowerbeds from the cutting area.
- Page 7 Insert the mains plug into a properly installed socket. Once the blue LED confirms all is OK, test Signal selection the Robotic Mower's function. Check the LED regularly to ensure fixing the boundary wire has not Note: the default signal is S1, no need to change the signal when there isn’t a influence signal affected the connection and signal shows S1 on the charging satation.
-
Page 8: Operation
Return to Docking station Operation Control panel Emergency Stop Working time select button: Select working time. Home button: First press the Home button and the press the OK button, robotic Mower will return to Start button: docking station. Frist press the Start button and then press Press STOP button to halt the mower at any time. -
Page 9: Technical Data
Maintenance and storage Maintenance work that has not been described in these instructions must be carried out by a servicing agency authorised by the manufacturer. Only use original parts. Model EasyMow 260 Max cutting area 260 m Maintenance Battery pack 20 V/2000 mAh Check and clean your Robotic Mower regularly and replace worn parts if necessary. -
Page 10: Troubleshooting
Cleaning the underside Troubleshooting Ensure the main power switch is in OFF position. Wearing protective gloves, turn the Robotic Mower onto its side to expose its underside. Clean the blade disc and frame using a soft brush or damp cloth. Rotate the blade disc to make sure that it can move freely, check that the blades can Robotic Mower cannot dock with docking station turn on their pivots and that there is no grass is obstructing them. - Page 11 Related to before/during/after charging Problem Possible cause Corrective action Power cable runs parallel/close to Reposition of boundary wire wire Problem Possible cause Corrective action Front wheel is stuck Clean front wheel area Incorrect wire conection Check wire connections " F and B" Signal interfere with robot in Change to alternative boundary No light on charge base...
