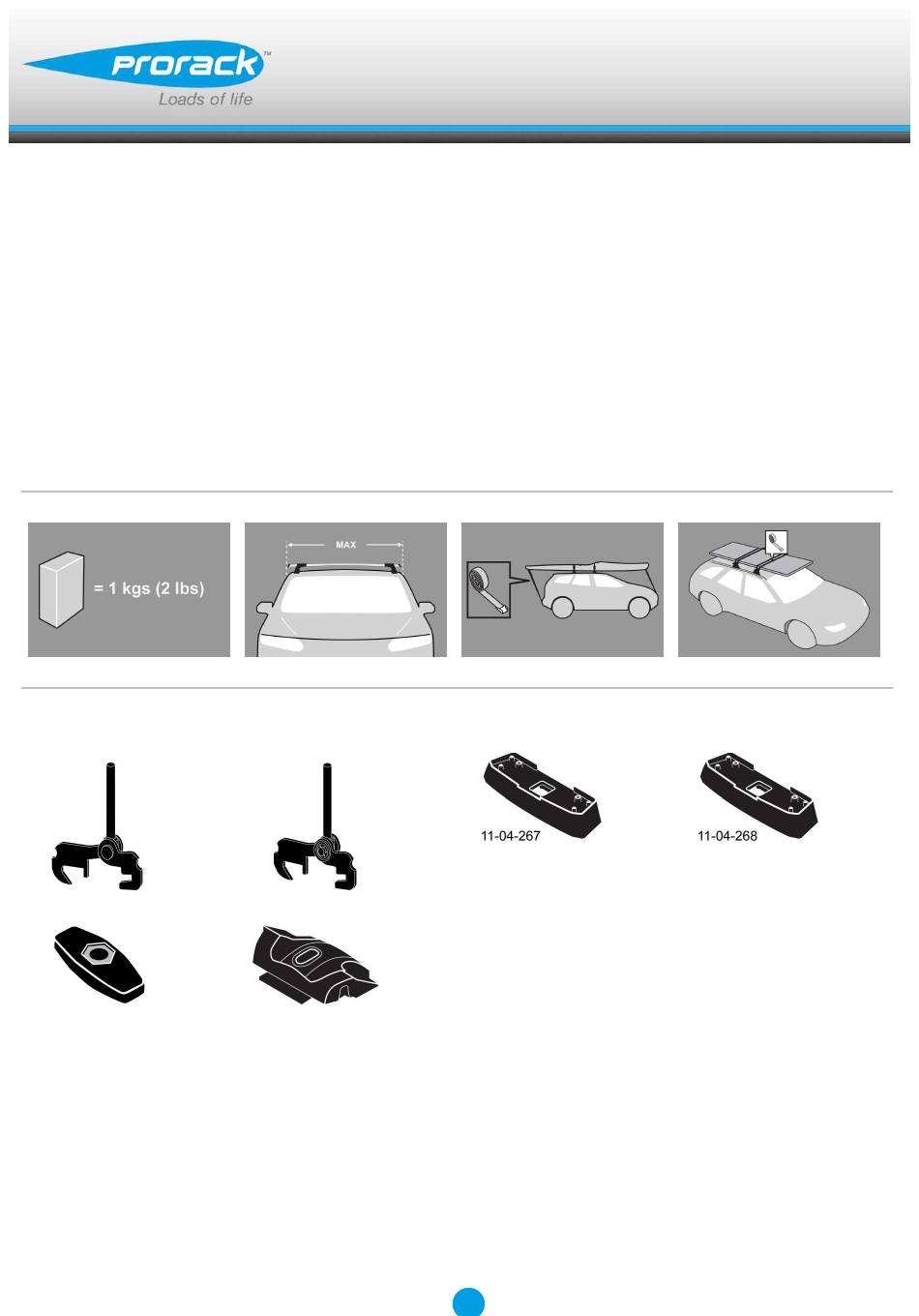

- Page 1 K722 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5E...
- Page 2 Fitting Kit K722 MAX kgs (lbs) Opel Adam, 3dr Hatch 13-+ 50 kgs (110 lbs) 50 kgs (110 lbs) Astra GTC, 3dr Hatch 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Astra GTC, 3dr Hatch 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Astra GTC, 3dr Hatch 11-14 75 kgs (165 lbs)
- Page 3 Fitting Kit K722 Adam, 3dr Hatch 13-+ (EU) -460mm 200mm 805mm 705mm -18 -1/8ths" 7 7/8ths" 31 11/16ths" 27 3/4ths" Adam, 3dr Hatch 13-+ (EU) -460mm 200mm 805mm 705mm -18 -1/8ths" 7 7/8ths" 31 11/16ths" 27 3/4ths" Astra GTC, 3dr Hatch 11-+ (EU) -360mm 325mm 775mm...
- Page 4 Fitting Kit K722 Zafira Tourer, 5dr MPV 12-+ (EU) 100mm 800mm 880mm 845mm 3 15/16ths" 31 1/2ths" 34 5/8ths" 33 1/4ths" Zafira ZJ, 5dr MPV 12-13 (AU) 100mm 800mm 880mm 845mm 3 15/16ths" 31 1/2ths" 34 5/8ths" 33 1/4ths" Zafira, 5dr MPV 12-+ (CN) 100mm 800mm 880mm...
-
Page 5: First Time Installation
Fitting Kit K722 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. Use keys to remove covers. - Page 6 Fitting Kit K722 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 7 Fitting Kit K722 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K722 Fitment Open or remove fixed-point covers. Locate fixed clamping block A It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 096A B = 095A Hook small claw into rear of the clamping...
- Page 9 Fitting Kit K722 Refer to the underside of the pad for the part number. Letters refer to the pad part numbers and position. It is important to put the pads in the correct position on the vehicle. Pad Part Number: A = 267A B = 268A Ensure internal clamp sits upright.
- Page 10 Fitting Kit K722 Mount crossbars over clamps. Repeat for all legs. Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions.
- Page 11 Fitting Kit K722 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K722 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 13 Fitting Kit K722 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
