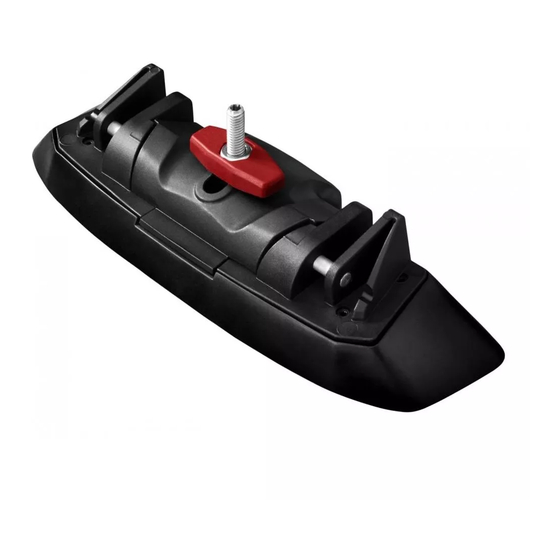

Prorack K420 Fitting Instruction For Accessory

Prorack K420 Fitting Instruction For Accessory

Fitting kit

page of 12

/ 12
Bookmarks

Advertisement

Quick Links

Download this manual

GB Fitting Instruction for Accessory

x 1

x 2

Revision No:

1.1

x 4

x 2

1

Fitting Kit

x 4

K420

x 4

Advertisement

Need help?

Need help?

Do you have a question about the K420 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prorack K420

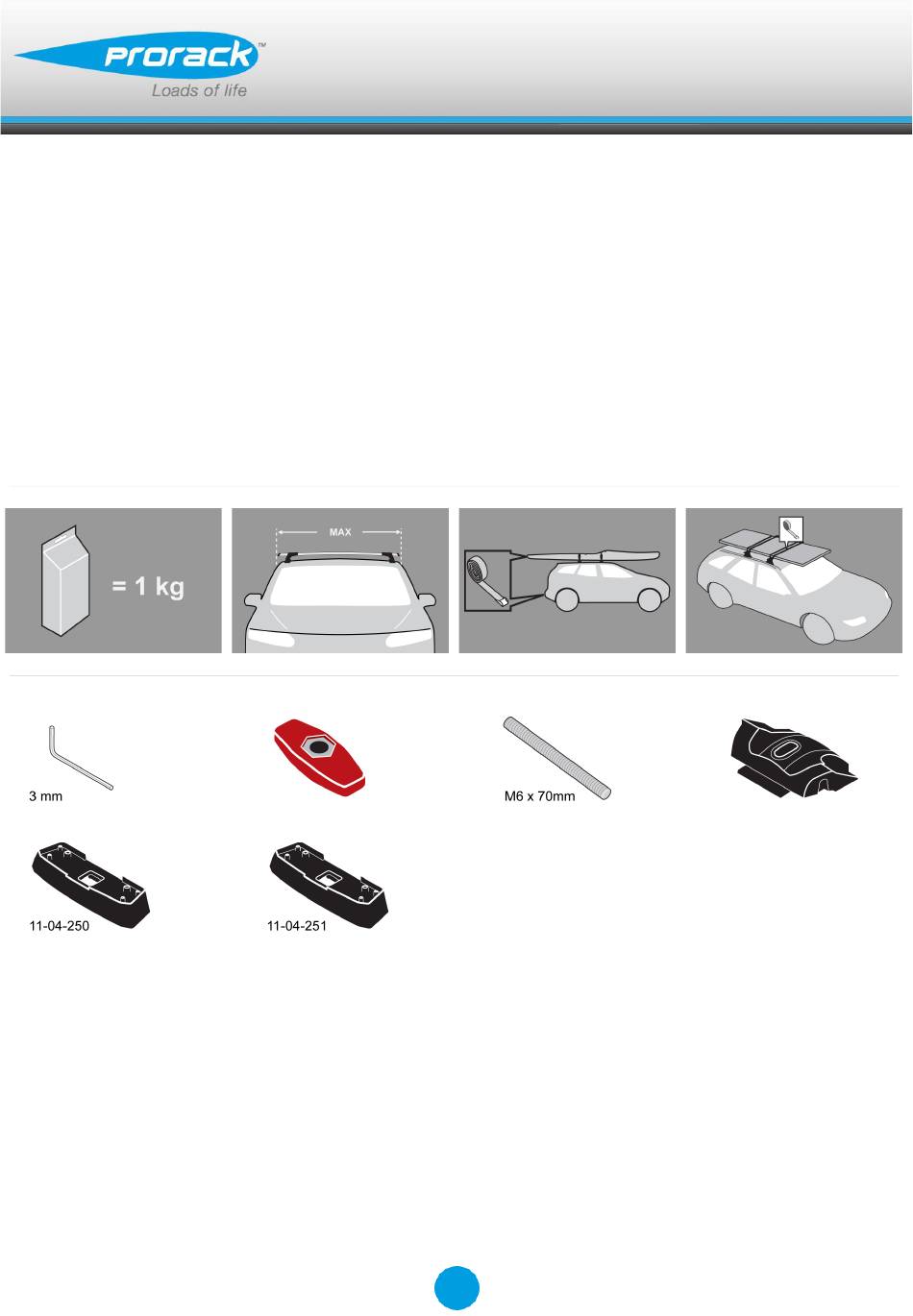

Page 1 K420 Fitting Kit GB Fitting Instruction for Accessory Revision No:...
Page 2 Fitting Kit K420 MAX kg MAX kg W/P WHD W/P WHD Ford Focus (fix point), 5dr Hatch 05-+ Focus , 5dr Hatch 08-+ Focus , 5dr Hatch Jul 08-+ Focus , 5dr Hatch Jul 08-+ S-Max , 5dr MPV Jun 06-+...
Page 3: First Time Installation
Fitting Kit K420 First Time Installation Remove parts from packaging and check contents. Contact your Prorack dealer if parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D.
Page 4 Fitting Kit K420 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
Page 5 Fitting Kit K420 Tighten adjusting screw to 5 Nm. Remove clamp block by pressing backwards. Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs.
Page 6 Fitting Kit K420 Refer to the underside of the pad for the part number. Letters refer to the pad part numbers and position. Pad Part Number: A = 11-04-250 B = 11-04-251 Fit rubber pads (supplied with fitting kit) to foot.
Page 7 Fitting Kit K420 Fitment Remove fixed-point covers by turning the plastic screw with flat-head screw driver (1). Remove sealant (2) to reveal plastic screw (3). Caution: Do not damage the screw head. Remove the plastic screw (3) with a Philips- head screw driver.
Page 8 Fitting Kit K420 Tighten the red plastic knob. The side with the nut showing should be facing up. Ensure the red plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
Page 9 Fitting Kit K420 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
Page 10: Maintenance
Fitting Kit K420 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
Page 11 Fitting Kit K420 A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully. Note that the total height of the vehicle increases when upright loads are carried.
Page 12 Fitting Kit K420 -21cm 50cm 884mm 860mm Ford Focus (fix point), 5dr Hatch 05-+ (ZA) -8 1/4" 19 11/16ths" 34 13/16ths" 33 7/8" -21cm 50cm 884mm 860mm Ford Focus , 5dr Hatch 08-+ (EU) -8 1/4" 19 11/16ths" 34 13/16ths"...
