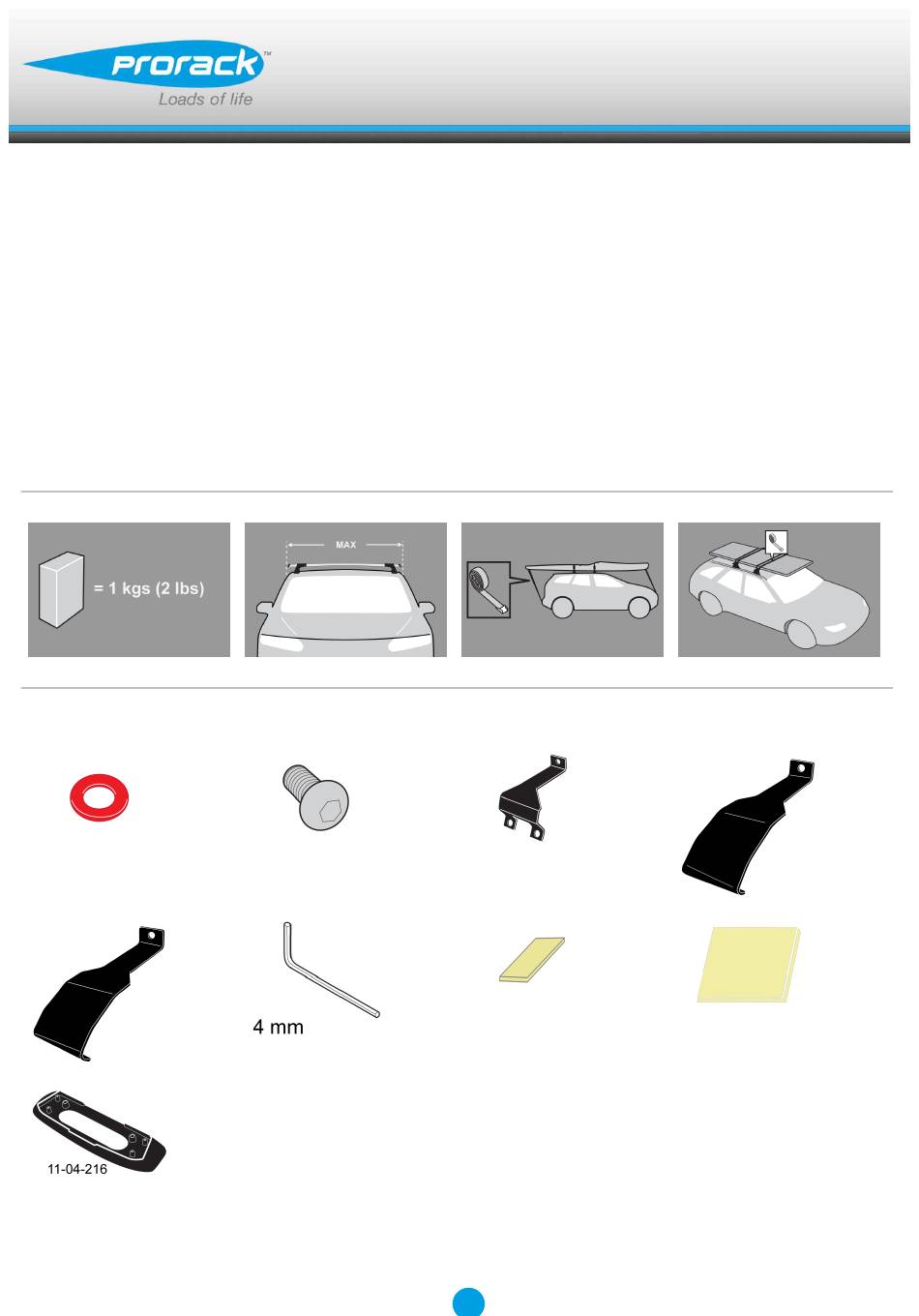

- Page 1 K427 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6F...
-
Page 2: First Time Installation
Fitting Kit K427 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. NOTE: Clamp images in these instructions may not be representative of the clamps in this kit... - Page 3 Fitting Kit K427 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally.
- Page 4 Fitting Kit K427 Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment. Please check the front of this manual for information relating specifically to your vehicle. Remove locking screw. Apply protective strip as shown. Trim if required.
- Page 5 Fitting Kit K427 Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 545A B = 546B C = 547B NOTE: REAR CROSSBAR ONLY Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example;...
- Page 6 Fitting Kit K427 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the front of this manual for information relating specifically to your vehicle. NOTE: FRONT CROSSBAR ONLY Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg.
- Page 7 Fitting Kit K427 Fit a fibre washer on each capscrew and attach front clamps to the vehicle body. Refit rubber seal over the clamp. Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle.
- Page 8 Fitting Kit K427 Progressively tighten the clamp block locking screws alternating from one side of the vehicle to the other to tension evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 9: Maintenance
Fitting Kit K427 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 10 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.prorack.com.au www.prorack.co.nz...
-
