Summary of Contents for Prorack K585

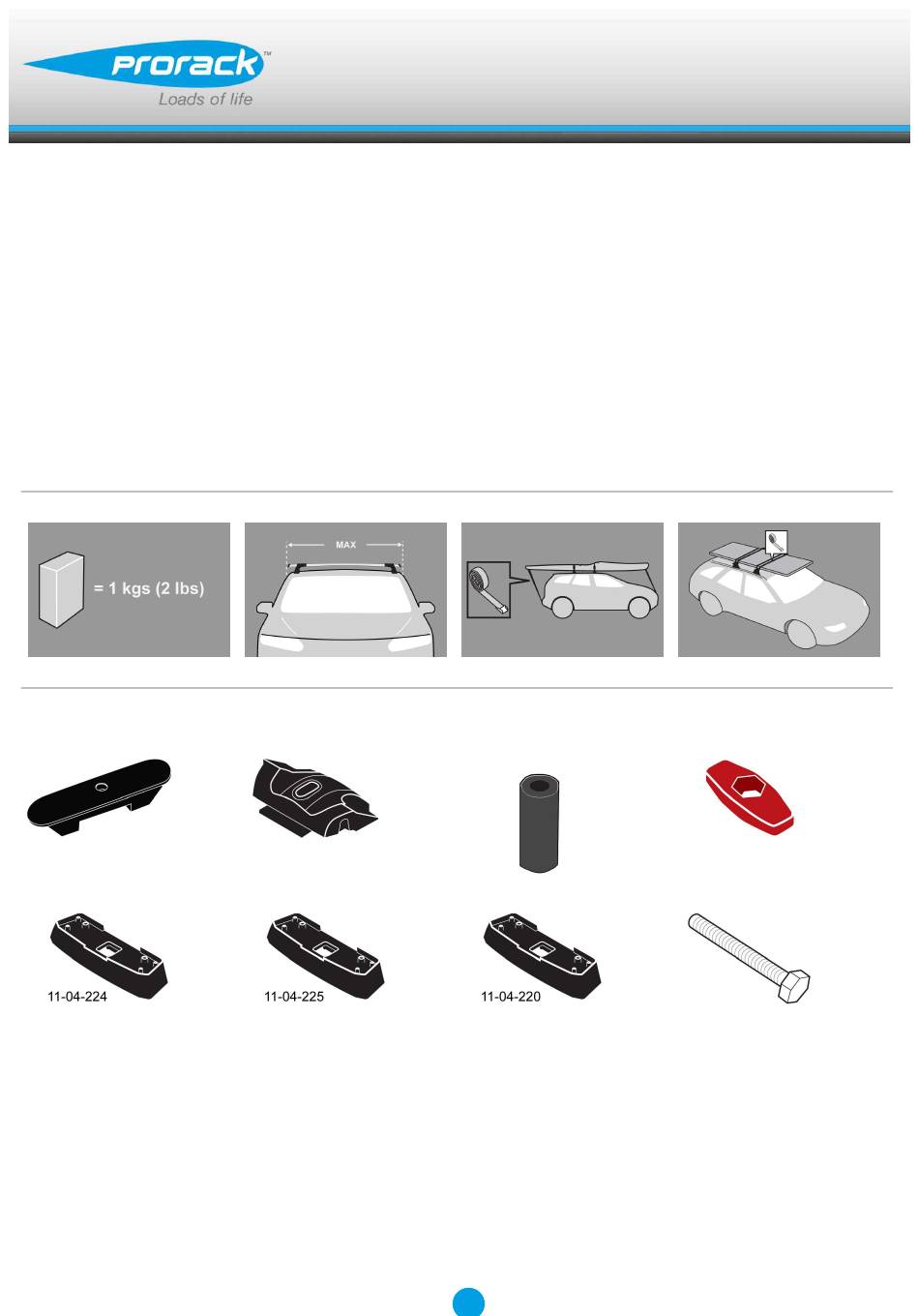

- Page 1 K585 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 7G...
- Page 2 Fitting Kit K585 MAX kgs (lbs) Volkswagen Amarok (Mexico), 4dr Truck 10-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Amarok Double Cab, 4dr Ute 10-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Amarok Double Cab, 4dr Ute 10-+...
- Page 3 Fitting Kit K585 Amarok (Mexico), 4dr Truck 10-+ (US) -270mm 500mm 970mm 955mm -10 -5/8ths" 19 11/16ths" 38 3/16ths" 37 5/8ths" Amarok Double Cab, 4dr Ute 10-+ (NZ) -270mm 500mm 970mm 955mm -10 -5/8ths" 19 11/16ths" 38 3/16ths" 37 5/8ths"...
-
Page 4: First Time Installation
Fitting Kit K585 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K585 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 6 Fitting Kit K585 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K585 Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 8 Fitting Kit K585 Fitment Open or remove fixed-point covers. Store items away in a safe place. Remove screws from the vehicle's fixed points Remove rubber washer from screw and re- install onto fixed point.
- Page 9 Fitting Kit K585 Assemble as shown. Ensure rubber sleeve is installed as far onto the bolt as possible. Place crossbar foot over fixed-point mount. Ensure bolt engages with rubber washer and fixed-point thread. Tighten the plastic knob.
- Page 10 Fitting Kit K585 Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 11: Maintenance
Fitting Kit K585 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K585 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
